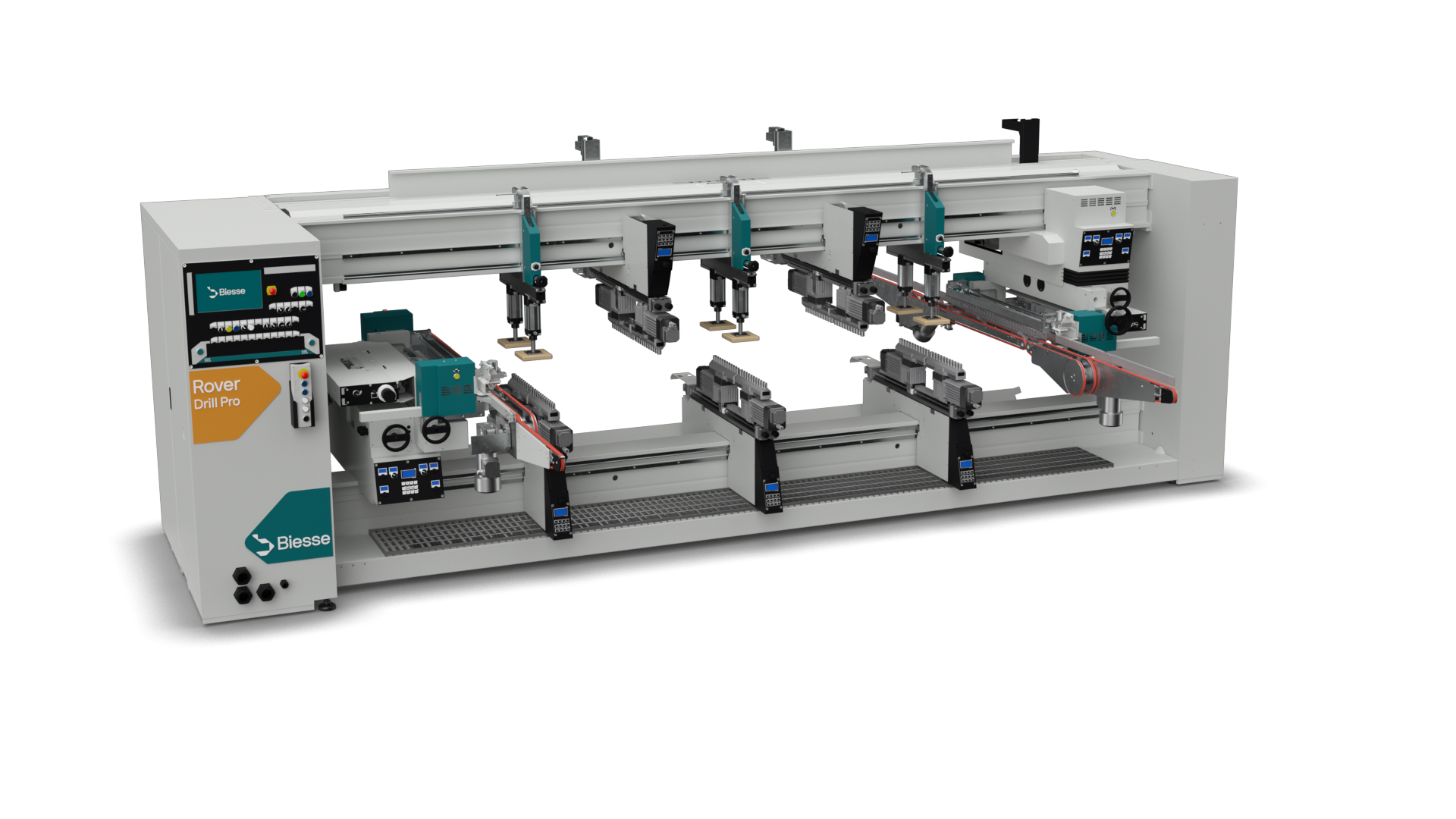

THROUGFEED CNC DRILLING MACHINE BIESSE ROVER DRILL PRO T C FDTL (TECHNO FDT)

Description

Automatic through-feed boring machine ROVER DRILL PRO T C FDTL

1. Working field along “X”: min = 215 mm max = 3200 mm,
2. Workable panel thickness: min = 9 mm max = 65 mm,
3. Working height from ground level: 900 mm.

• No.2 Horizontal Units each with 2 boring chucks with 11 spindles activated by a 1.5 HP motor,
• Horizontal Heads with electronically activated boring cycle, in replacement of the standard heads with pneumatic activation,
• No. 6 Bottom Vertical Head width 96 mm with 2 motors (1.8 hp each),
• Electronically activated boring cycle,
• No. 3 Top Vertical Head width 96 mm with 2 motors (1.8 hp each),
• Electronically activated boring cycle,
• Equipment for chip transport,
• Device for the feeding of heavy panels and/or panels profiled or coated with delicate material,
• Device for the working of narrow pieces on machines of the Techno series,
• No. 6 5-spindle chuck, 32 mm. continuous centerdistance, driving spindle the 3rd; shaped chuck body,
• No. 12 11-spindle chuck, 32 mm. continuous centerdistance, driving spindle the 6th; shaped chuck body,
• Safety devices with fixed side panels and front and back programmable photocell barriers, for a machine of the Techno series,
• Personal computer desktop and editor module for a machine with manually positioned axes,
• Software module Tooling System for machines of the Techno series.

* Machine with the possibility of automation.
