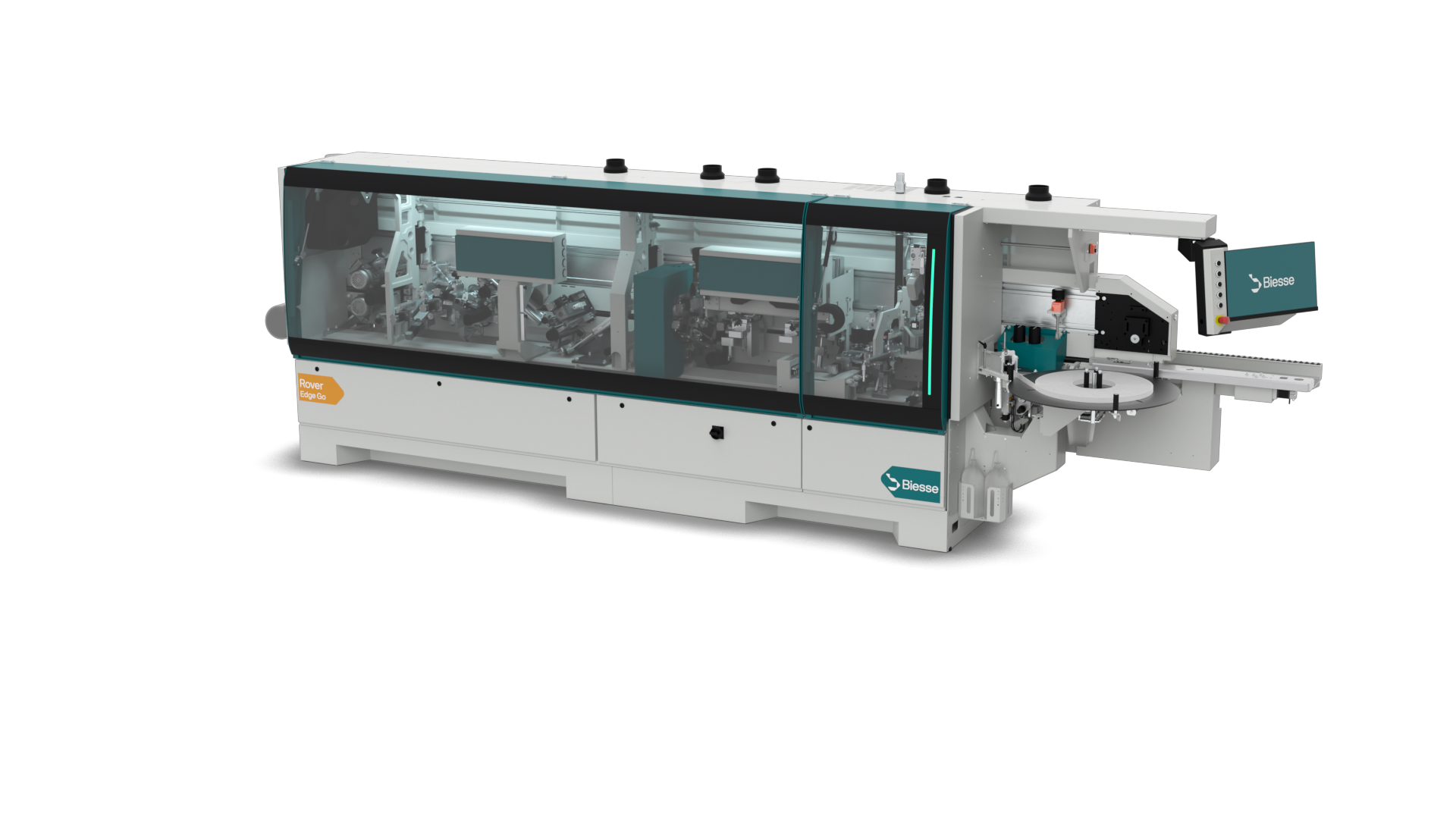

EDGE BANDING MACHINE BIESSE ROVER EDGE GO S P A14 40A WITH PRESSURE BELT (BIESSE AKRON 1440 A NC)

Description

• Description:

1. Panel height: 10-60 mm,
2. Height of edge-banding material: 14-64 mm,
3. Thickness of edge-banding material in rolls: 0,4-3 mm,
4. Thickness of edge-banding in strips: 0,4-12 mm,
5. Panel length: 140-3200 mm,
6. Track feed speed: 12 m/min.

• Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
• Gluing Unit VC-511,
• End trimming unit IT70-S. Complete with 2 high frequency motors (0.8 kW each) at 12000 RPM, with saw blades,
• Fine trimming unit RI-501. Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
• Multifunction 2 motors corner rounding Unit AR02 E. Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
• Edge scraper Unit RB02,
• Glue scraper Unit RC02,
• Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM,
• Nc Axis Package – Group Of Devices That Enable The Automation Of Machine Set-Up For Akron 1400,
• Kit High Quality And High Productivity On ROVER EDGE GO S P A14 40A. Belt Pressure Beam. The Top Presser Comprises A Rubber Belt With A Stain-Proof Coating

It includes:

•      Belt pressure beam.
•      Automatic track lubrication system.

*KIT HIGH QUALITY AND HIGH PRODUCTIVITY
