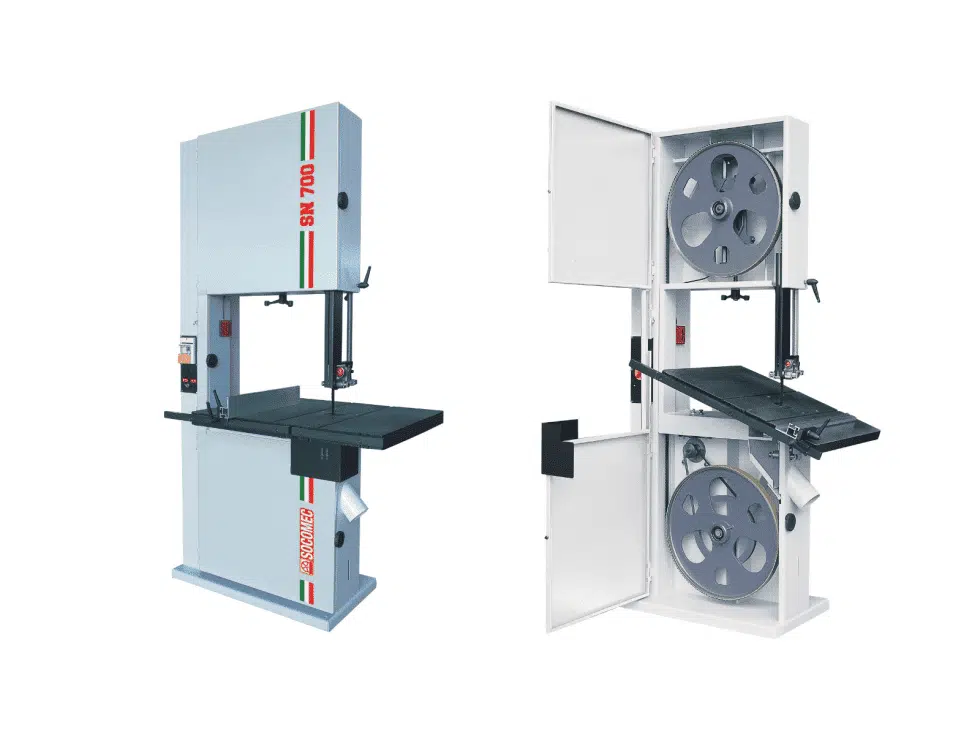

Description
- Motor power 4 (3,0) HP (KW)
- Cast iron flywheels 700 mm Ø
- Flywheel width 40 mm
- Cutting width 670 mm
- Maximum cutting height 430 mm
- Blade width 10 ÷ 40 mm
- Blade speed 18 m/sec
- Overall dimensions of the cast iron table 700 X 930 mm
- Net weight 420 kg
Standard equipment meet the requirements and ce standards:
- 3-phase motor

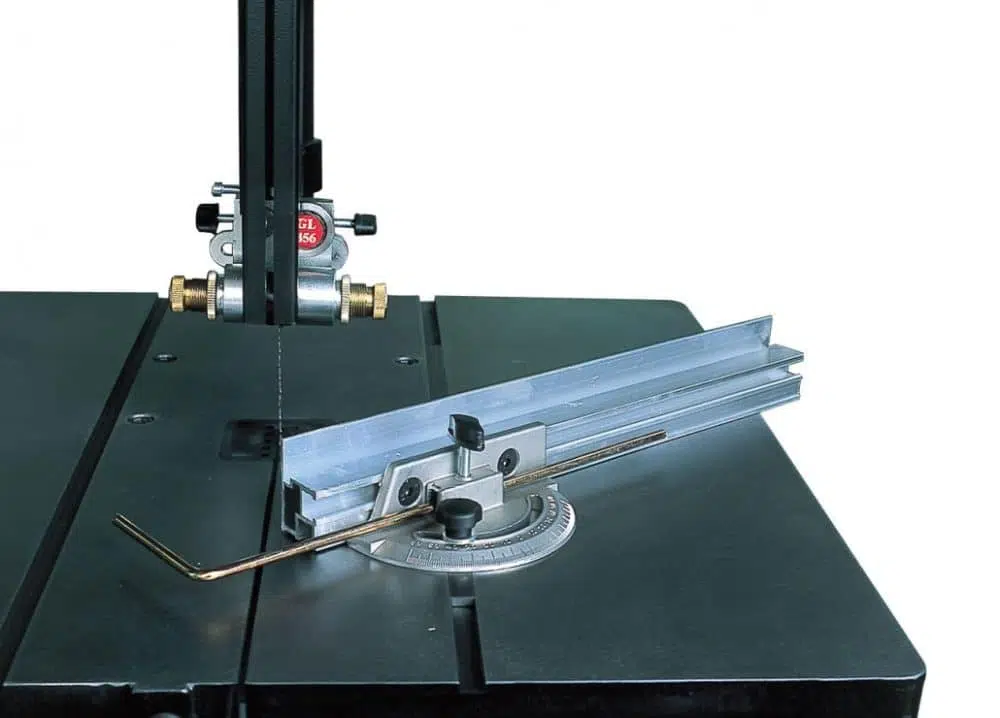

- Cast iron table tilting 0° ÷ 20°
- Saw blade

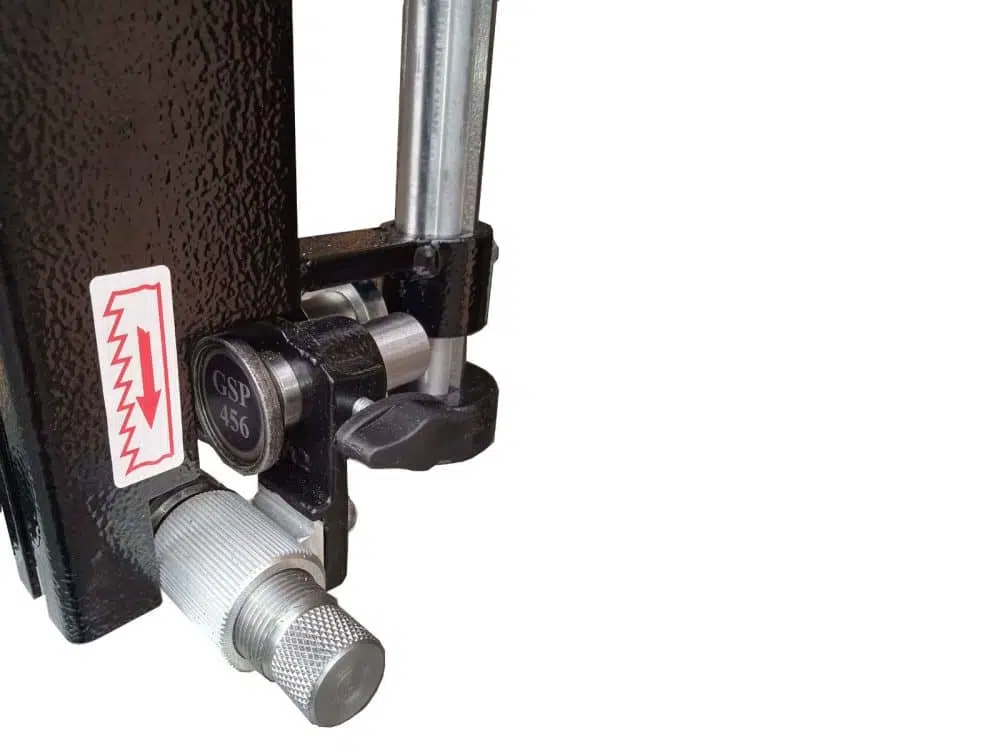

- Adjustable upper blade guide
- Top saw blade guide with rack movement
- Instruction manual with keys
- Electrical installation and protections in accordance with applicable standards
- Self-braking electronics
- Rack and pinion upper blade guide
