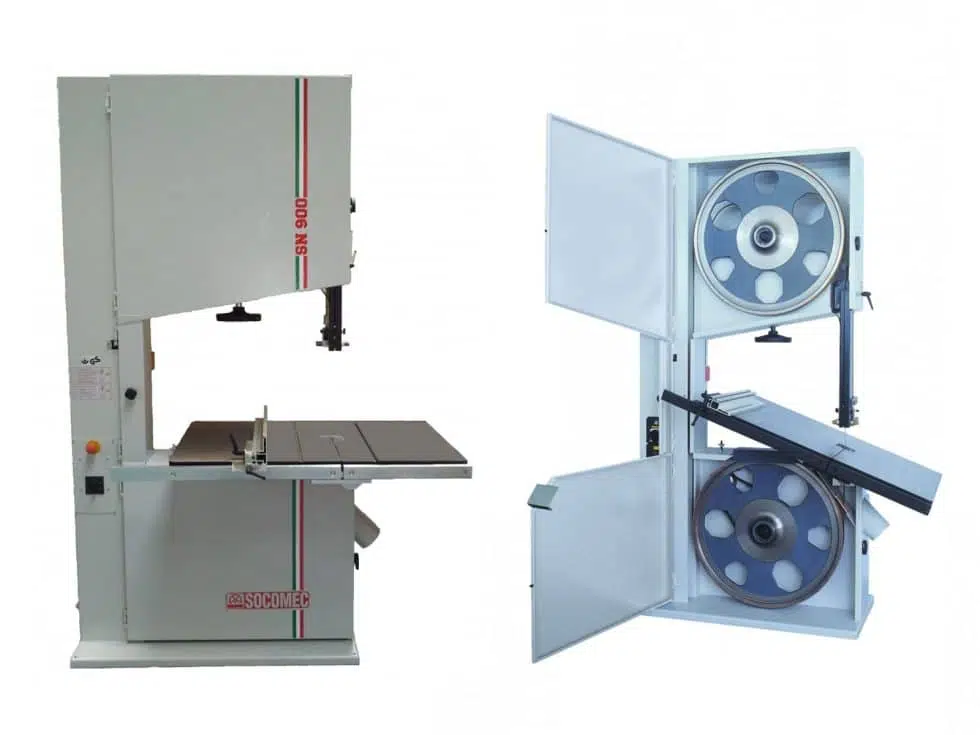

Description
- Engine power 7.5 (5.5) HP (KW)
- Cast iron flywheels 900 mm Ø
- Flywheel width 50 mm
- Cutting width 885 mm
- Maximum cutting height 560 mm
- Blade width 10 ÷ 55 mm
- Blade speed 25 m/sec
- Overall dimensions of the cast iron table 1130 X 800 mm
- Net weight 730 kg
Standard equipment meeting the requirements and ce standards:
- 3-phase motor

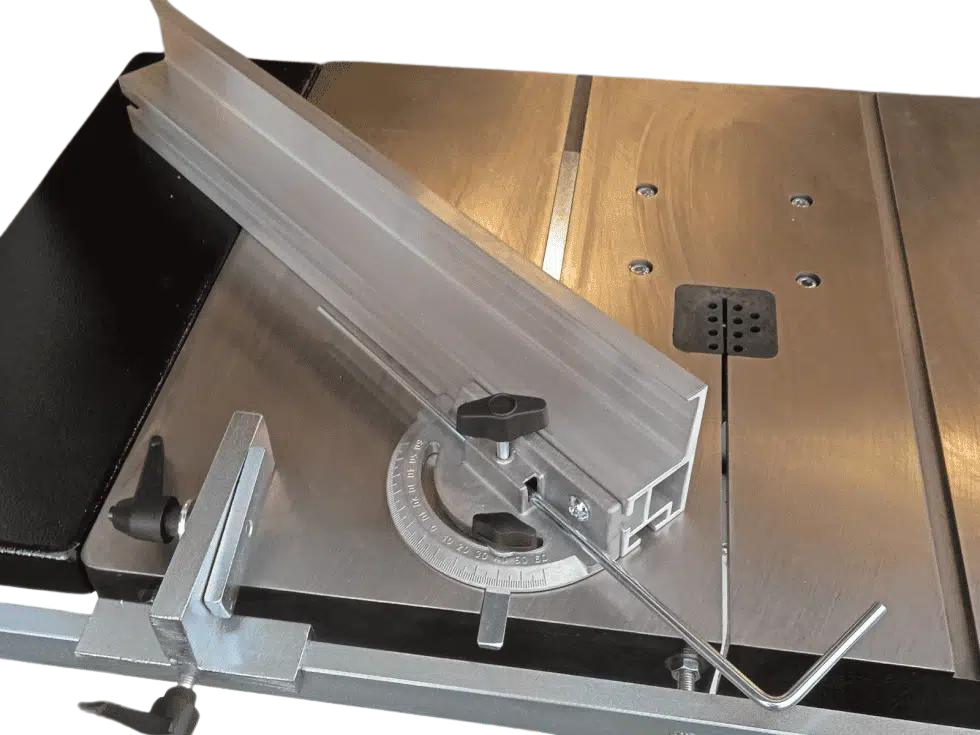

- Cast iron tilting table 0° ÷ 20°
- Saw blade
- Adjustment of the upper guide
- Electrical system with overload protection
- Operating instructions with keys
- Electrical installation and safety devices in accordance with applicable standards
- Self-braking electronics

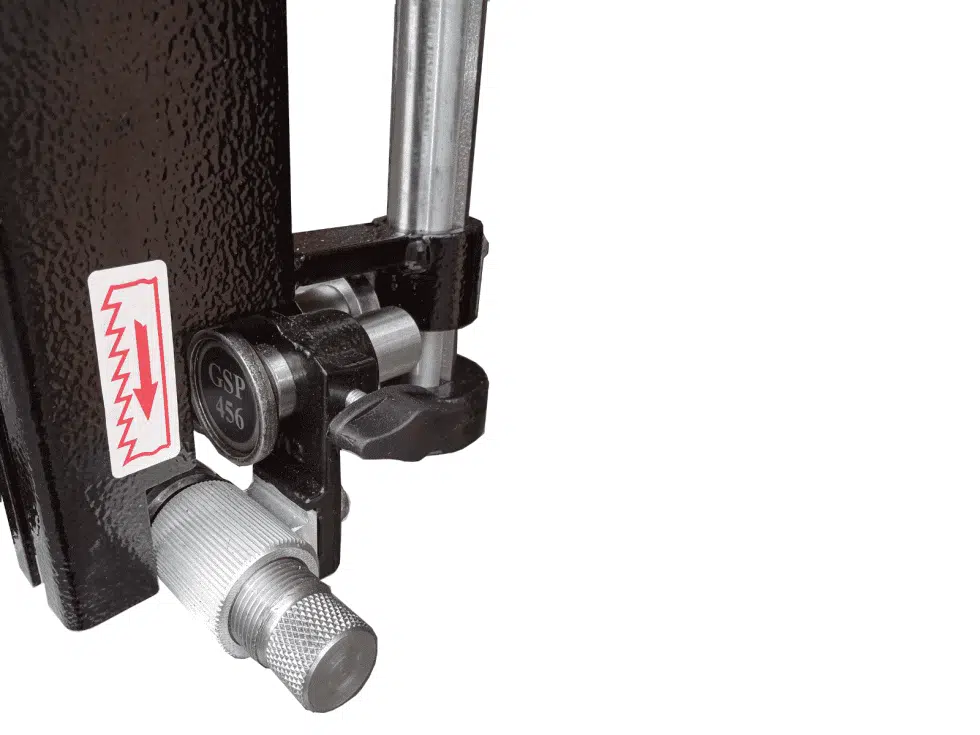

- Rack and pinion upper blade guide
- 2 suction hoods Ø 120 mm
- Manual delta/star switch
