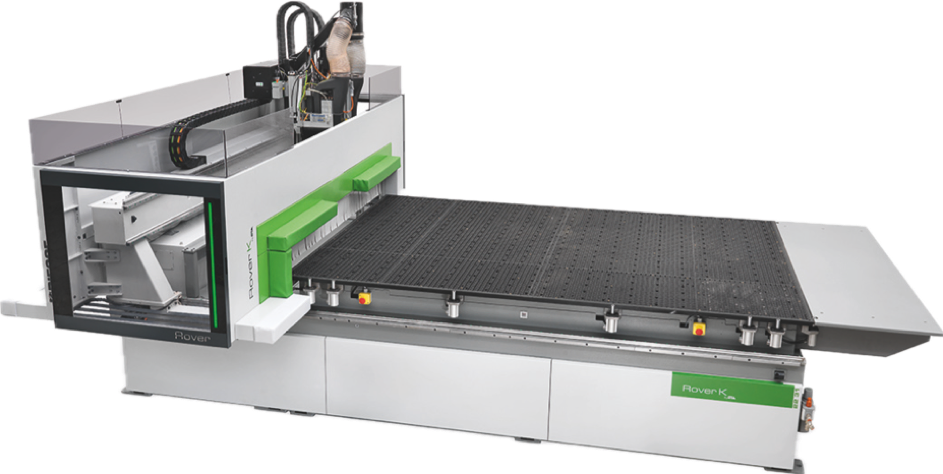

CNC NESTING MACHINE BIESSE ROVER K FT 2231 WITH SWEEPING ARM

Description

• FT worktable dimension:

1. X=3098 mm,*
2. Y=2203 mm,*

* The dimensions indicate the distance between the stops in X and Y respectively; the maximum size of the panel that can be loaded automatically in Y is equal to the distance between the stops minus 5 mm.

• 8 zones Multizone vacuum system
• Prearrangement for Loading station MANUAL or type A
• Prearrangement for Unloading belt
• Pendulum machining functionality for machines with 3 sides access – EC-UKCA,
• 2 x 250 m3/h rotary claws vacuum pump,
• Electrospindle 9.0 kW (12 HP) with HSK F63 coupling, air cooled,
• Presetter for the measurement of the tool length with diameter up to 130mm,
• Boring head BH 10,
• Horizontal spindles kit for BH10 Boring Head,
• Fixed rack tool changer 14 (size 22xx) tools,
• BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
• bNest – Software module for nesting process applications.
