SINGLE-HEAD BORING MACHINES MS LINE 704

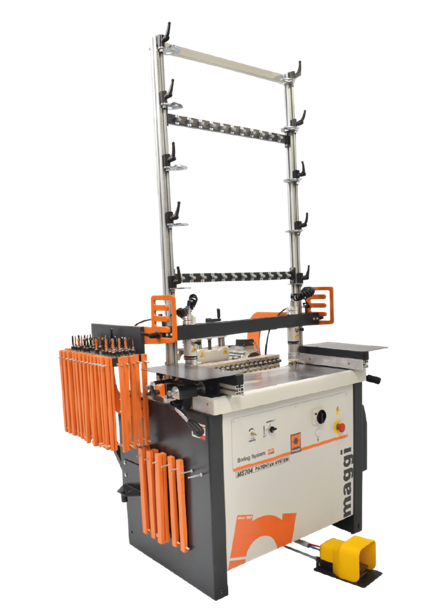

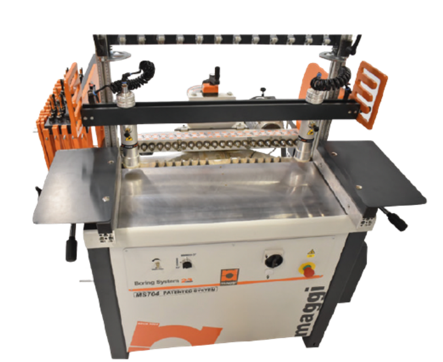

The Maggi MS 704 drill is the world’s first single-head, multi-spindle drill designed for the fast production of non-series furniture.

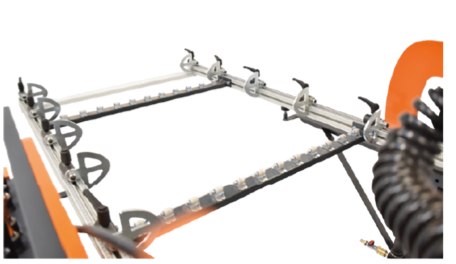

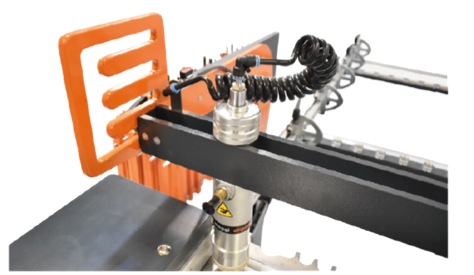

Equipped with a patented positioning frame and an adjustable clamping beam, it can handle panels up to 3000 mm long and 200 mm thick, enabling fast and safe processing, including solid wood. Produced under a Polish license by an Italian pioneer since 1963, the MS 704 was designed by a carpenter for carpenters, combining decades of production experience with innovative drilling technology.

Categories: ,

Description



Spindles N. 23
Left and right spindles N. 11 – N. 12
Spindle interaxis 32 mm
Total interaxis 704 mm
Max. tool diameter 40 mm
Max. boring depth 65 mm
Max boring height 55 mm
Height of working table 860 mm
Dimensions of the working table 949 x 350 mm
Max. panel thickness (optional*) 60 – 200 mm
Max. panel dimensions 960 x 3000
Motor HP 2 / KW 1,5 – RPM 2800
Standard pneumatic pressure BAR 6/8
Air consumption per working cycle 10 NL
Dust collection hood diameter 80 mm
Overall dimensions – net weight: 1285 x 872 x 1300 mm
Rod packaging size 1500 x 120 x 60 mm
Gross weight 301 Kg
Net weight kg 271
