Description
• Motor power 3 (2,2) HP (KW)
• Cast iron flywheels 600 mm Ø
• Flywheel width 35 mm
• Cutting width 585 mm
• Maximum cutting height 370 mm
• Blade width 10 ÷ 35 mm
• Blade speed 18 m/sec
• Overall dimensions of the cast iron table 620 X 890 mm
• Net weight 300 kg
Standard equipment meet the requirements and ce standards:
• 3-phase motor

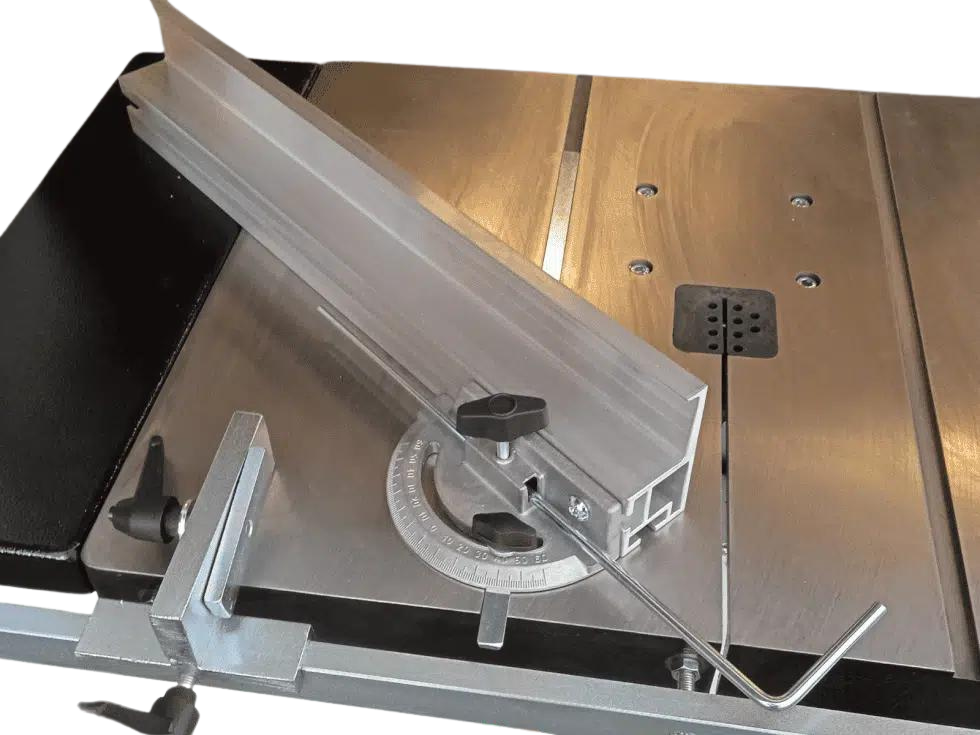

• Cast iron table tilting 0° ÷ 20°
• Saw blade
• Adjustable upper blade guide
• Electrical system with overload protection
• Microswitch on the door
• Instruction manual with keys
• Electrical installation and protections in accordance with applicable standards
• Self-braking electronics

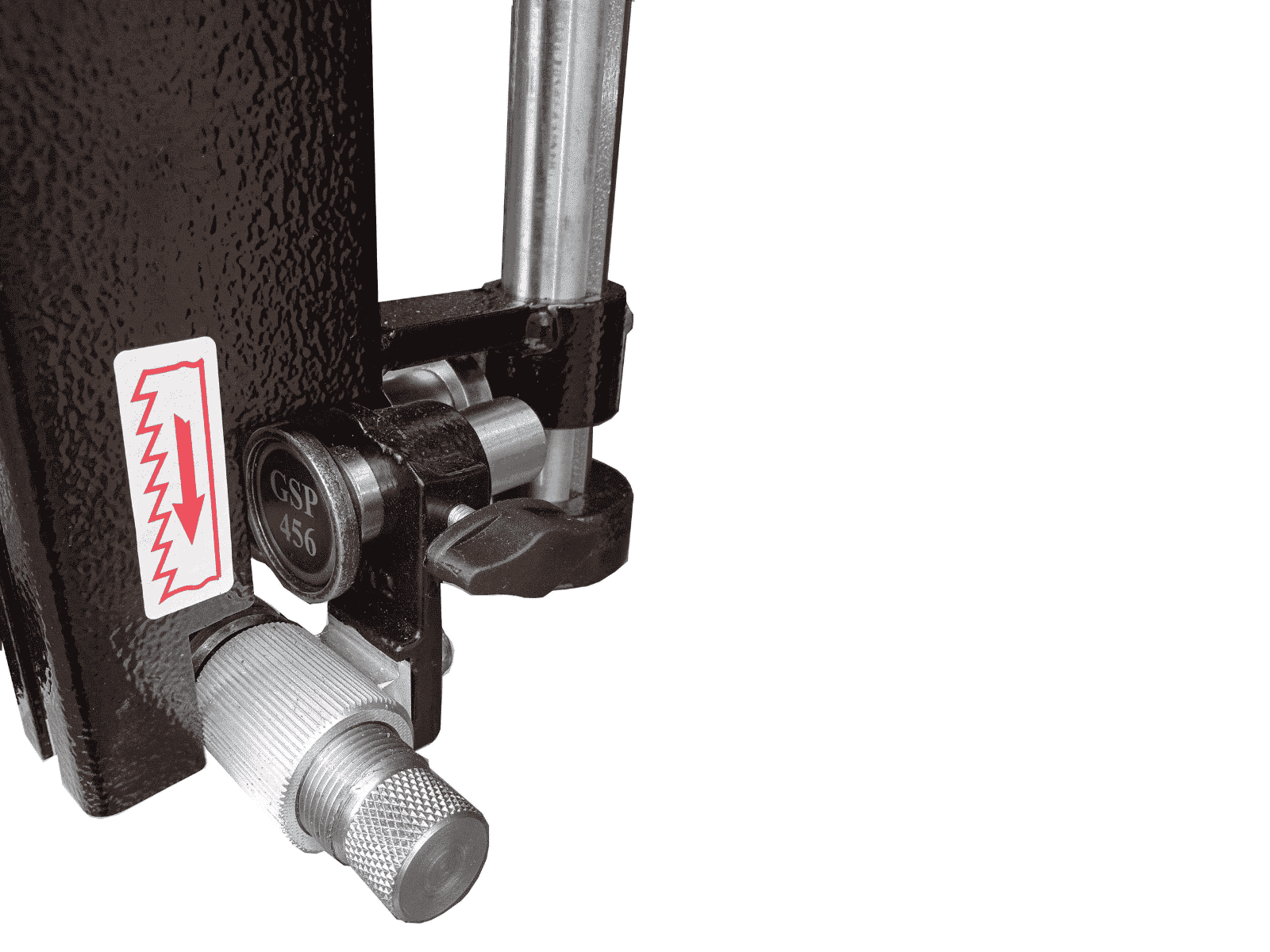

• Rack and pinion upper blade guide
