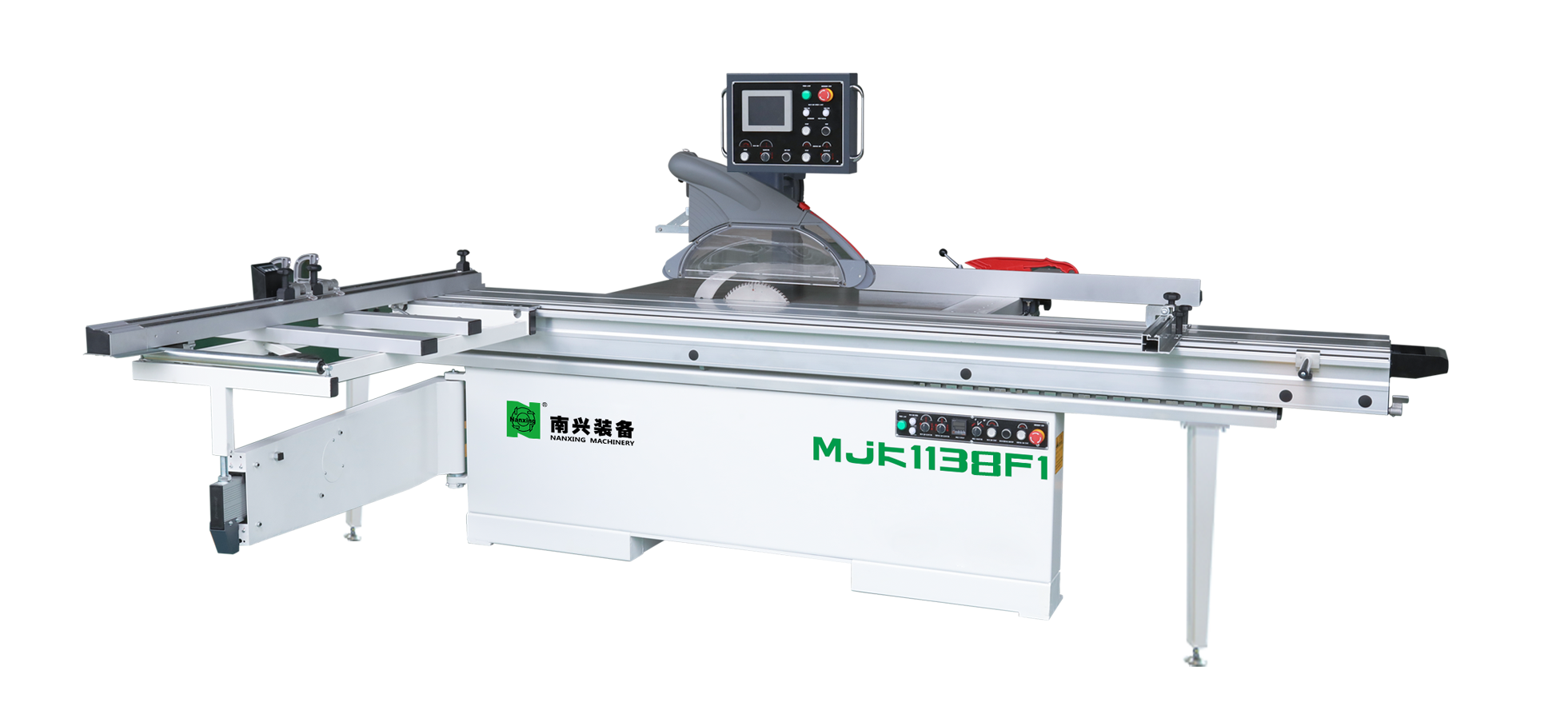

SLIDING TABLE SAW NANXING MJK1138F1

Description

• Work table dimension: 1219 x 717 mm,
• Carriage dimension: 3800 x 410 mm,
• Maximum cutting length with scoring saw: 3700 mm,
• Maximum cutting width on parallel guide : 1300 mm,
• Saw blade inclination range: 0°-45°,
• Maximum cutting height with saw ø300 mm: 100 mm,
• Maximum cutting height with saw blade: ø300 at 45°: 70 mm,
• Maximum saw blade diameter: 350 mm,
• Main saw speed: 3800/5200 rpm,
• Undercutting speed: 9000 rpm,
• Top/bottom dust collection nozzle: 80/120 mm,
• Power of main motor: 5.5 kW,
• Scoring saw motor power: 1.1 kW,
• Overall dimension: 3800 x 3370 x 1200 mm,
• Weight: 1050 kg.
