Description

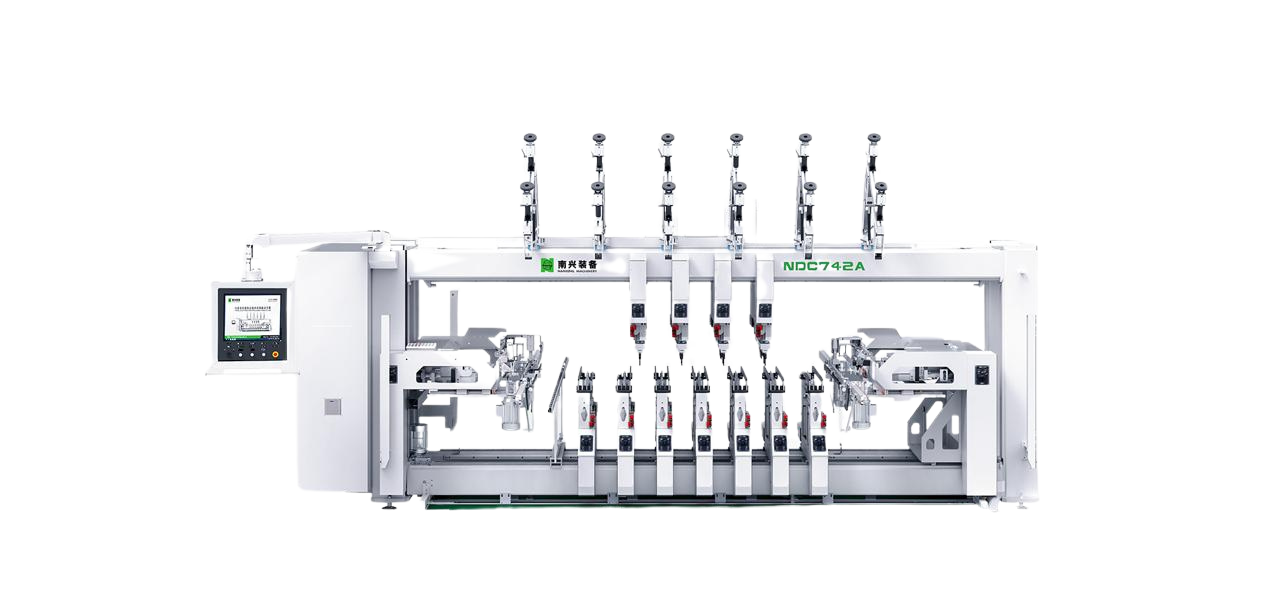

The movement of vertical drilling rows is smooth, fast, and precise, powered by a servo motor with a rack-and-pinion system.
Vertical row lifting is also controlled by a servo motor, allowing flexible position adjustments.
Both new and previous processing data can be stored within the machine’s filing system for easy retrieval and efficiency.
- Max panel width: 2550 mm,
- Min. panel width: 250 mm,
- Max. panel thickness: 50mm,
- Upper drilling rows qty.: 4,
- Lower drilling rows qty.: 7,
- Horizontal drilling rows qty.: 2,
- Boring block power: 1.5 kW 2750 rpm,
- Spacing of drills: 32 mm,
- Max vertical drilling depth: 50 mm,
- Max. horizontal drilling depth: 40 mm,
- Servo motor qty: 23,
- Servo motor power: 0. 75 kW,
- Total power: 55.5 kW,
- Approx. weight: 7,100 kg,
- Overall dimension: 5,540*3,660*2,200 mm.
