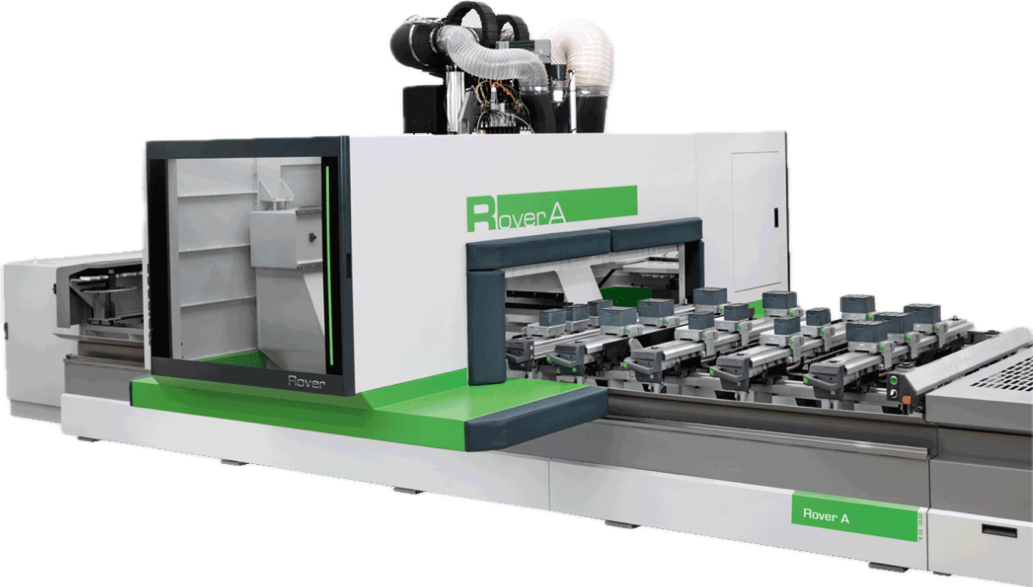

Description
- Working fields (vertical electrospindle axis reference):
- X = 3140 mm,
- Y = 1560 mm for 4-axes unit, 1570 mm for 5-axes unit,
- Z = 230 mm with H74 mm modules / Configuration 3B,
- Z = 275 mm with H29 mm modules / Configuration 3B,
- Length of the working tables = 1500 mm,
- Automatically lifting strips system6 ATS panel supports – 24 sliding bases,
- Pneumatic locking system divided in 2 work areas in,
- 6 Stop of the back line with a stroke: of 115 mm and extension of 25 mm,
- 4 Side stops with a stroke of: 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
- 24 Sensor for the detection of lowered stops,
- 4 aluminium lifting bar supports for loading ease of large and heavy pieces. For modules H = 29 mm and H = 74 mm,
- 250 m3/h rotary vanes vacuum pump with oil working,
- 13 kW (17.4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling – 20.000 RPM,
- Liquid chilling unit,
- Heat exchanger unit for liquid cooled systems,
- Boring head BH 24 L,
- 13 positions Revolver Toolchanger, positioned on the X axis carriage for machines with front and rear bumpers,
- Tool-holder with HSK F63 adaptor, equipped with a short flange for sawblade used on 5-axes unit,
- bSolid 3D CAD-CAM program to design, simulate and manage the machining processes.
