Description
DESCRIPTION

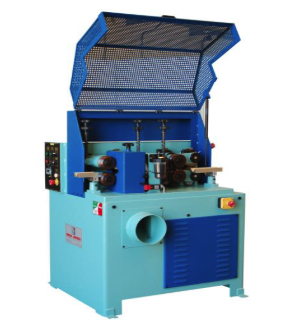

Automatic milling machine for the production of straight and slightly curved round rods from any type of wood, with diameters ranging from 5 to 45 mm.
It allows the installation of a tool with a fixed, defined diameter (which can be replaced with another fixed diameter), or a variable-diameter tool adjustable from 15 to 45 mm.
The TV45 machine is suitable for the production of handrails, stair components, curtain rods, sports equipment and musical instrument parts, furniture fittings, semi-finished products for the turning industry, and more.
TECHNICAL DATA
-
Minimum diameter: 5 mm
-
Maximum diameter: 45 mm
-
Minimum length: 350 mm
-
Maximum length: unlimited
-
Output speed: 2–25 m/min
-
Tool rotation motor power: 5.5 kW
-
Feed motor power: 0.75 kW
-
Dimensions: 120 × 135 × 150 h cm
-
Weight: 675 kg
