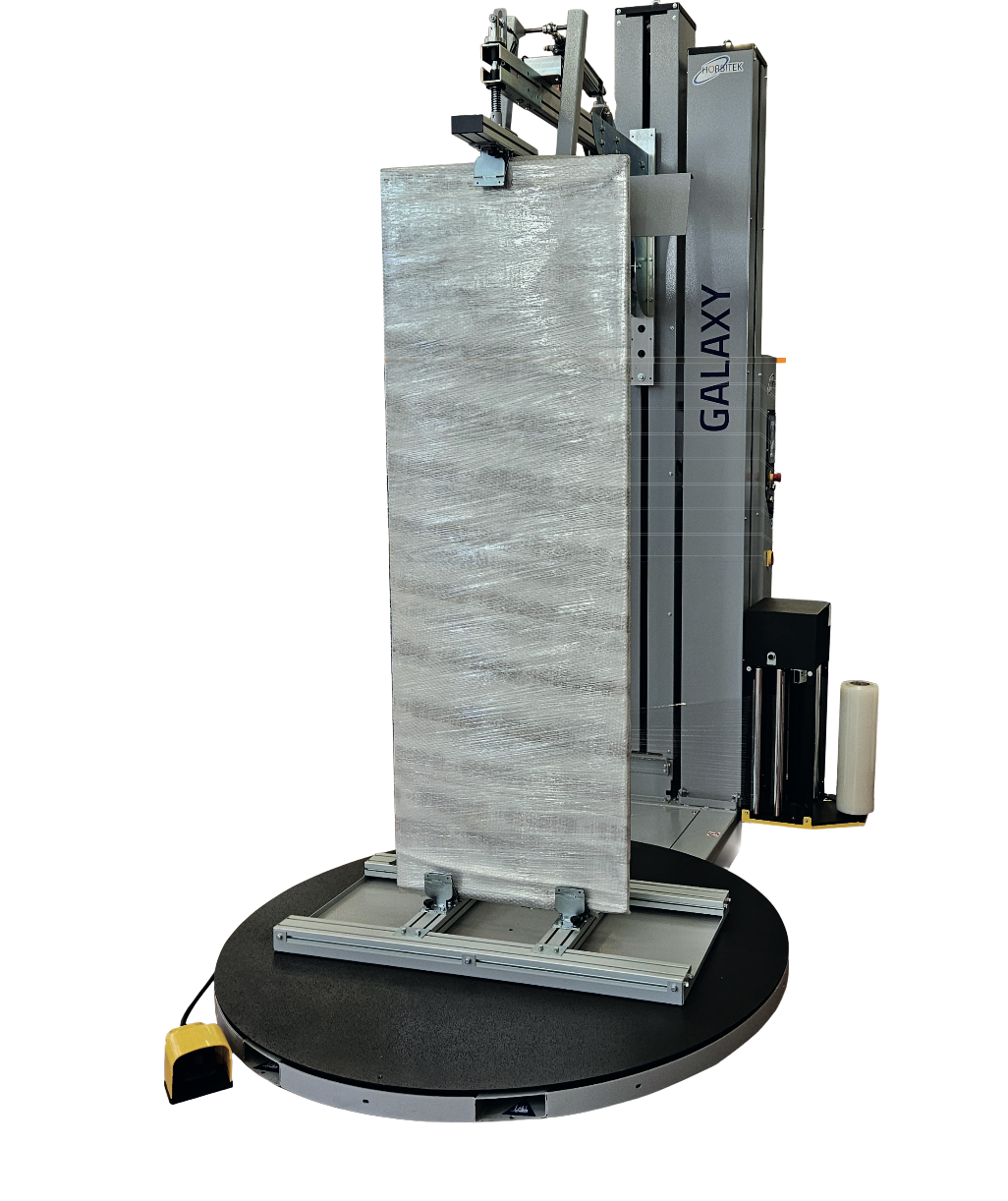

WRAPPING MACHINE FOR DOORS AND WINDOWS HORBITEK GALAXY DOOR PM2400

Description

• Top and bottom adjustable clamp
• Motorized presser controlled by inverter
• Max pallegt weight 2010 kg
• Pedal switch for driving up and down the pressor
• Machine Power 1.75 Kw
• Machine voltage 220-240v 1PH 50/60 Hz
• Starting cycle acustic warning
• Table phase stop
• Anti crushing device on carriage
• All motors controlled by inverter
• Maximum external film coil 275 mm
• Film coil core 76 mm
• Film coil Height 500 mm
• Film thickness max 35 µm
• Maximum film coil weight 20 Kg

• AVAILABLE PARAMETERS SETTABLE ON THE PANEL
  • Turntable rotations speed
  • Upward carriage speed
  • Downward carriage speed
  • Bottom rouns
  • Top Rounds
  • Adjustment of film tension
  • Adjustment of film pre-stretch
  • Number of reinforcing wraps
  • Reinforcing heights
  • Wrapping start from pre-set height
  • Photocell delay
• AVAILABLE FUNCTIONS SETTABLE ON THE PANEL
  • Cycle with stretch & bubble wrap
  • Cycle with reinforcements
  • Cycle with wrapping at pre-set height
  • Password setting for parameters protection
  • Capacity to store up to 99 custom programs

CARRIAGE PM Power pre-stretch carriage with gears at 230%. ratio (others ratios on demand) and film tension adjustable by the panel
