CNC NESTING MACHINE NANXING NCG3021L

Description

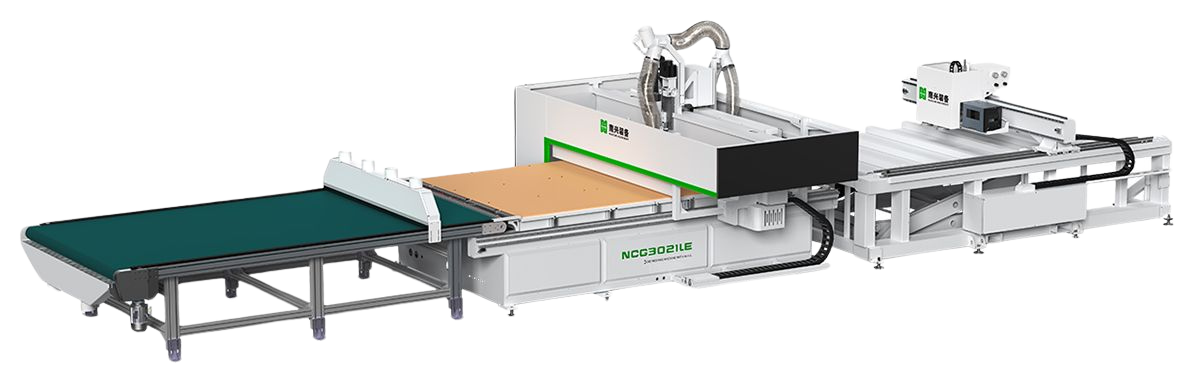

Nesting machining center with loading and unloading NANXING NCG3021L

1. X = 3100 mm,
2. Y = 2100 mm,
3. Z = 200 mm,
4. Work table dimensions: 3100x2100x(H)900 mm.

The NCG3021LE machining center is fully equipped to load, process and unload finished panels. Contains:

• Loading panels with a labeling device,
• Machining with a 12 kW spindle and drill head. Milling, grooving and drilling are possible,
• Work table: 3000 mm x 2100 mm. Compatible with 2440 x 1220 mm, 2440 x 1830 mm,
• The maximum speed along the X and Y direction is 100 m/min,
• TPA system. PC control with Windows operating system with high stability and ease of use,
• Fully automatic production including 3 parts: automatic loading, CNC machining center and automatic unloading of elements.
