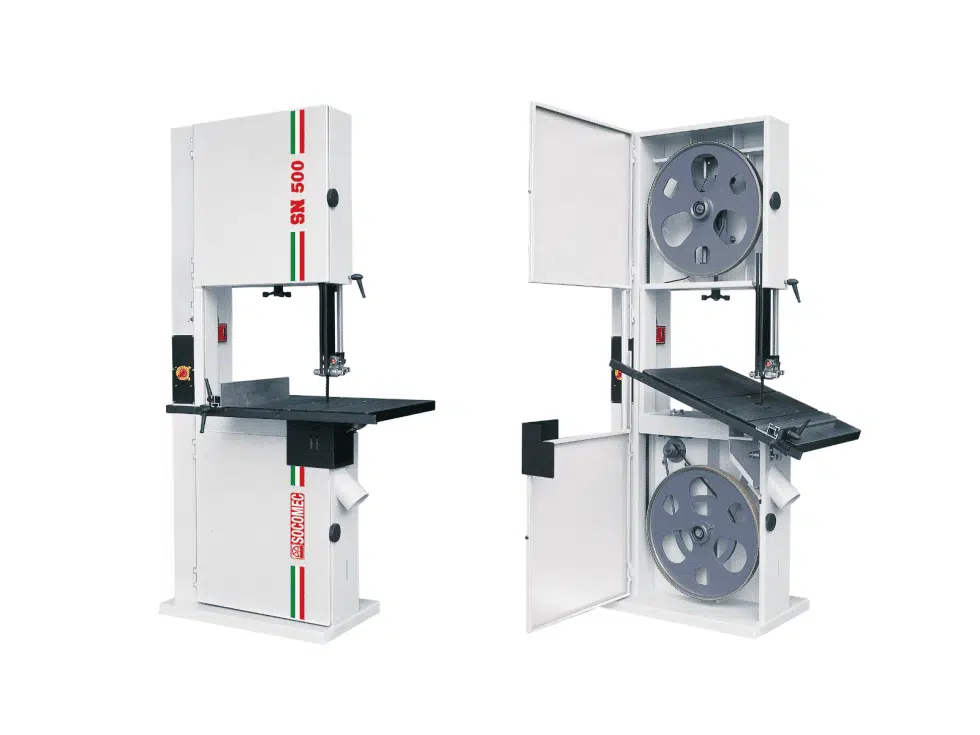

Description
- Motor power 2 (1.5) HP (KW)
- Cast iron flywheels 500 mm Ø
- Flywheel width 30 mm
- Cutting width 485 mm
- Maximum cutting height 320 mm
- Blade width 6 ÷ 25 mm• Blade speed 18 m/sec
- Overall dimensions of the cast iron table 700 X 490 mm
- Net weight 215 kg
Standard equipment meet the requirements and ce standards:
- 3-phase motor
- Cast iron table tilting 0° ÷ 20°
- Saw blade

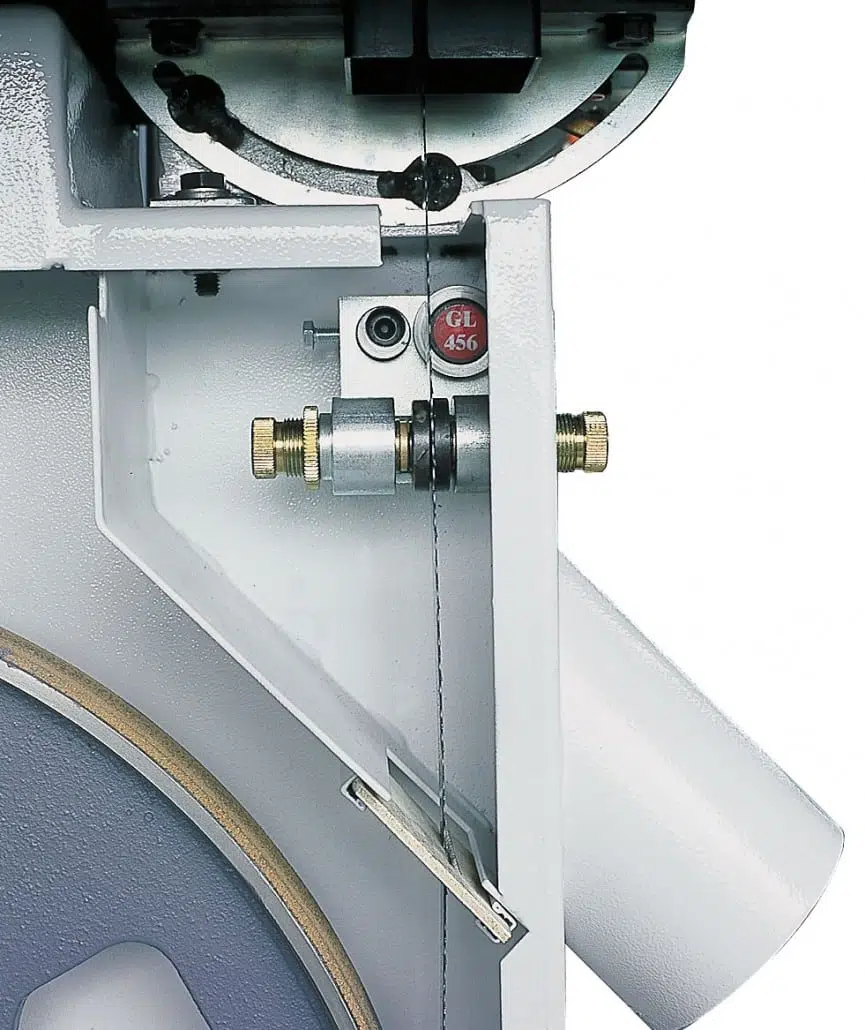

- Adjustable upper blade guide
- Electrical system with overload protection
- Microswitch on the door
- Instruction manual with keys
- Electrical installation and protections in accordance with applicable standards
- Self-braking electronics
- Rack and pinion upper blade guide
