Description

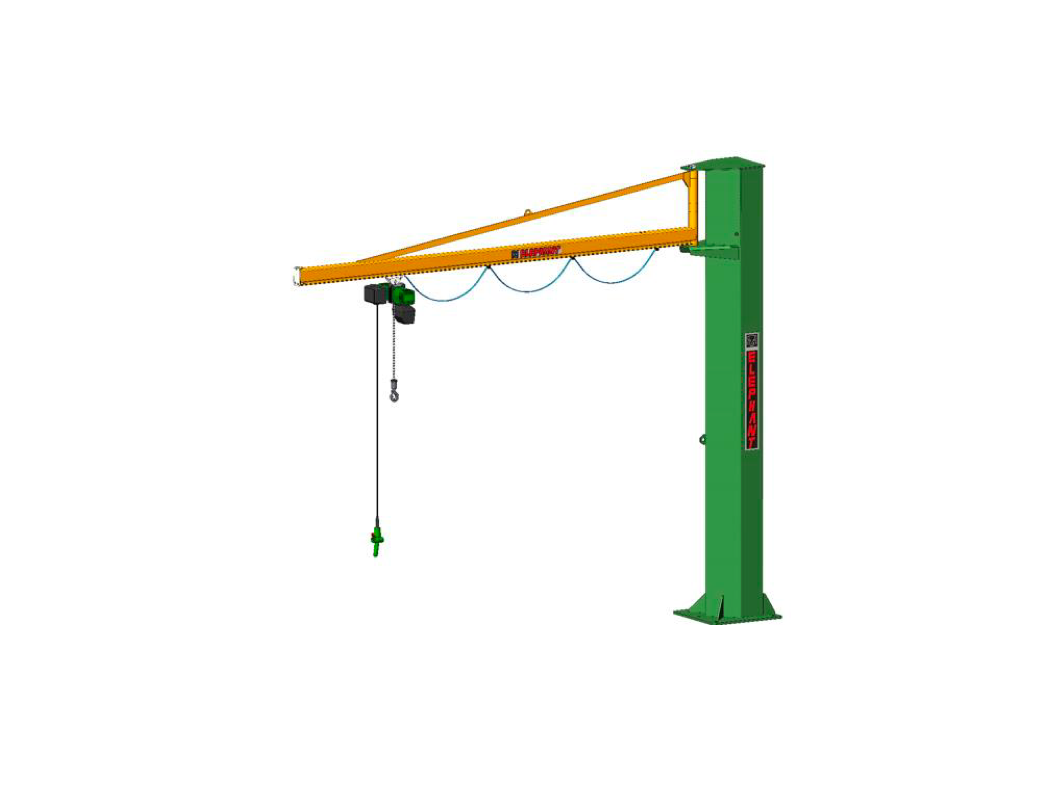

- Type B-250/4
- Maximum load capacity: 250 kg
- Arm length: 4 m
- Pillar column height: 3.80 m
- Height under the arm: approx. 3.28 m
- Hook height: approx. 2.78 m
- Manual trolley included
- Rotation range: 270°

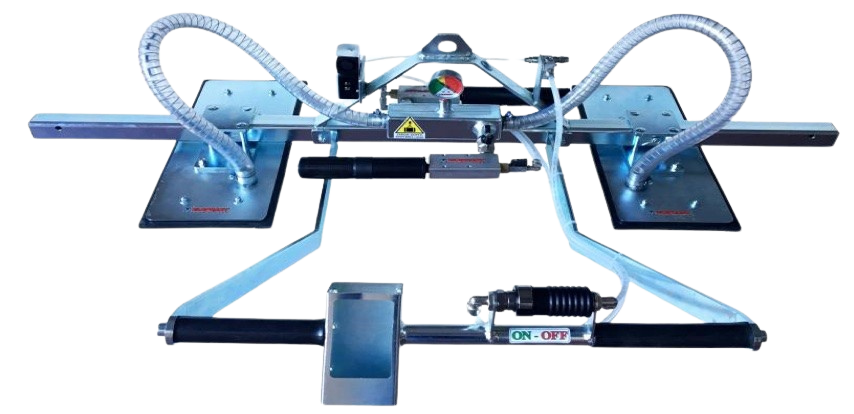

Vacuum lifter for translucent panels – vacuum traversal:
- Model PNT2F
- Manevring handle
- Horizontal panel transport
- One-handed operation capability
- 2 suction cups, 500×250 mm (external suction cup dimensions: 520×270 mm)
- Standard seals made of rubber and materials suitable for surfaces with small irregularities
- Large vacuum pipe
- Steel frame with a high yield strength, made of high-quality materials
- Adjustable suction cups on the central beam
- Fixed central beam, 1500 mm in length
- Continuous vacuum pump powered by compressed air
- Reinforced Vacuum pump for MDF material above 8 mm thickness
- New double dampers
- Vacuum gauge with transparent and color-coded scale for easier vacuum level monitoring
- Powered by a strong and quiet vacuum generator
- Air consumption: 500 l/min Operating pressure: 7/8 Bar
- Acoustic and visual alarm system that automatically signals low vacuum levels. It works autonomously using batteries and comes with an appropriate charger
- Maneuvering handle for the operator with grip and release commands
- Lifting unit with appropriate safety devices
- Central hook for hanging
