Description

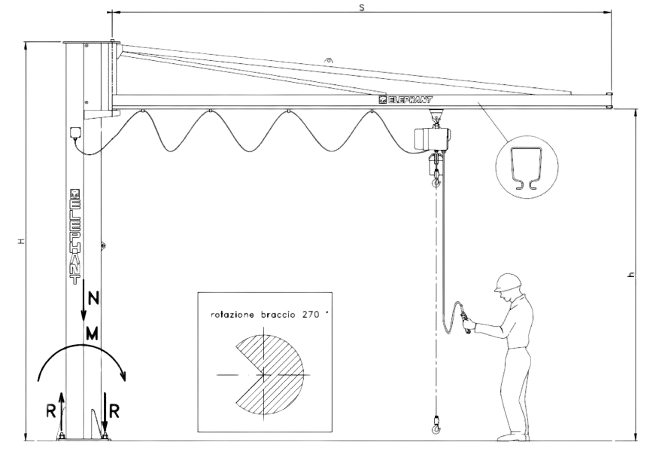

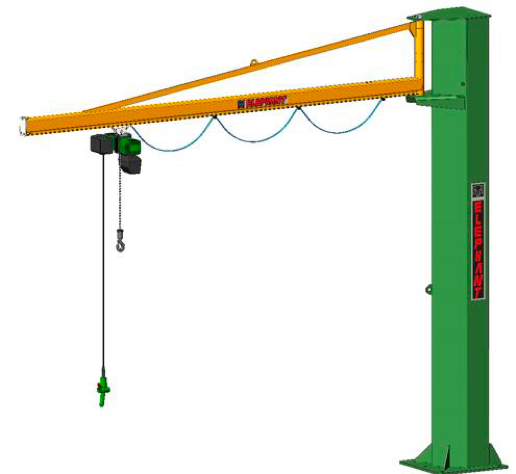

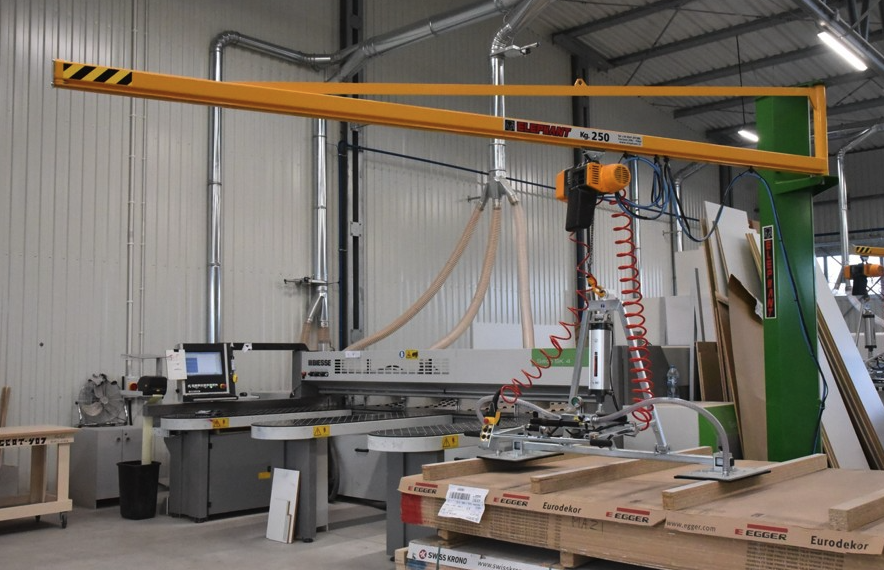

Column crane
Type B-250/5
- Lifting capacity 250 kg
- 5m arm
- Column height 3.00 m
- Height under the arm. 2.3m
- Hook height 1.8 m
- Manual cart included
- Rotation angle 270°
Base 800×800 mm to be fixed to the floor
Mounting screws included.

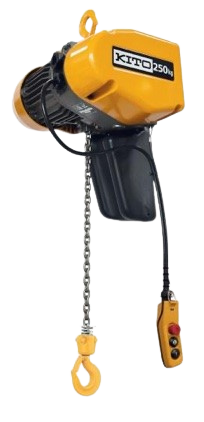

Manually moved electric winch
Type KQ3SD/1S
- Lifting capacity 250 kg
- Lifting speed* 10/1.7 m/min
- Power – 24V control panel
- Mains 380V / 50Hz
- Hook displacement 3 m
*Integrated inverter with adjustable lifting speed, up to 6:1 ratio
*When the load capacity is reduced (-30%) from the standard one, the speed increases (+30%)

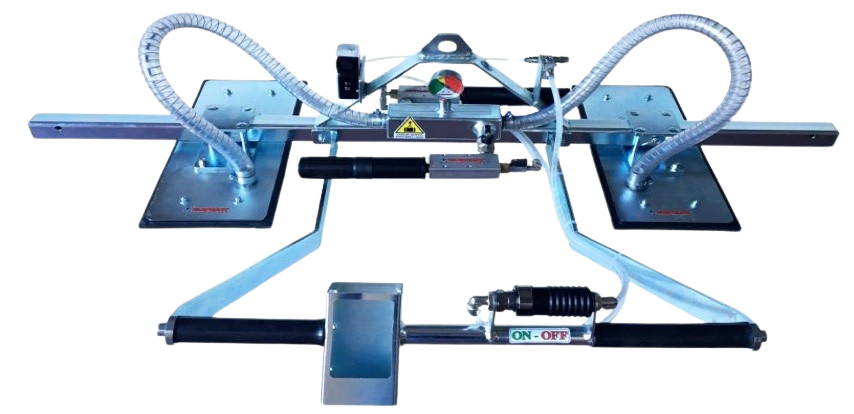

Vacuum gripper for leverage panels
Model PNT2F
- Lifting capacity 200 kg
- Suction cups 2 pcs. 500×200 mm
- Standard seals made of rubber and plastic suitable for surfaces with small surface irregularities
- Large vacuum tube
- High-yield steel frame made of first-class materials
- Suction cups adjustable on the central beam
- Fixed central beam, length 1500 mm
- Continuous vacuum pump powered by compressed air
- New double mufflers
- Vacuum gauge with clear and colored scale for easy monitoring of the degree of vacuum
- Powered by a powerful and quiet vacuum generator
- Air consumption 500 l/min
- Working pressure 7/8 bar
- Acoustic and visual alarm system that automatically signals a low vacuum level.
- It works autonomously with batteries and comes with a suitable charger
- Maneuvering handle for the operator with grab and release commands
- Central hanging hook
The buyer provides:
Supply of power cable, compressed air.
