Description

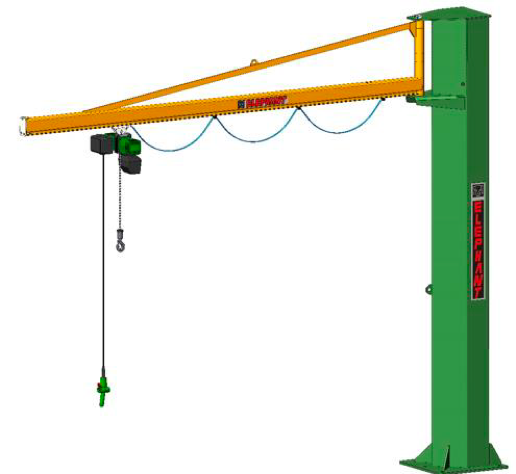

Column crane
Type B-250/5
- Lifting capacity 250 kg
- 5m arm
- Column height 3.0 m
- Height under the arm. 2.3m
- Hook height 1.8 m
- Manual cart included
- Rotation angle 270°
Base 800×800 mm to be fixed to the floor
Mounting screws included.

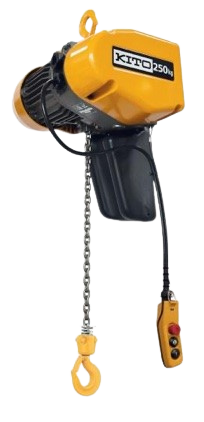

Manually moved electric winch
- Type KQ3SD/1S
- Lifting capacity 250 kg
- Lifting speed* 10/1.7 m/min
- Power – 24V control panel
- Mains 380V / 50Hz
- Hook displacement 3 m
*Integrated inverter with adjustable lifting speed, up to 6:1 ratio
*When the load capacity is reduced (-30%) from the standard one, the speed increases (+30%)

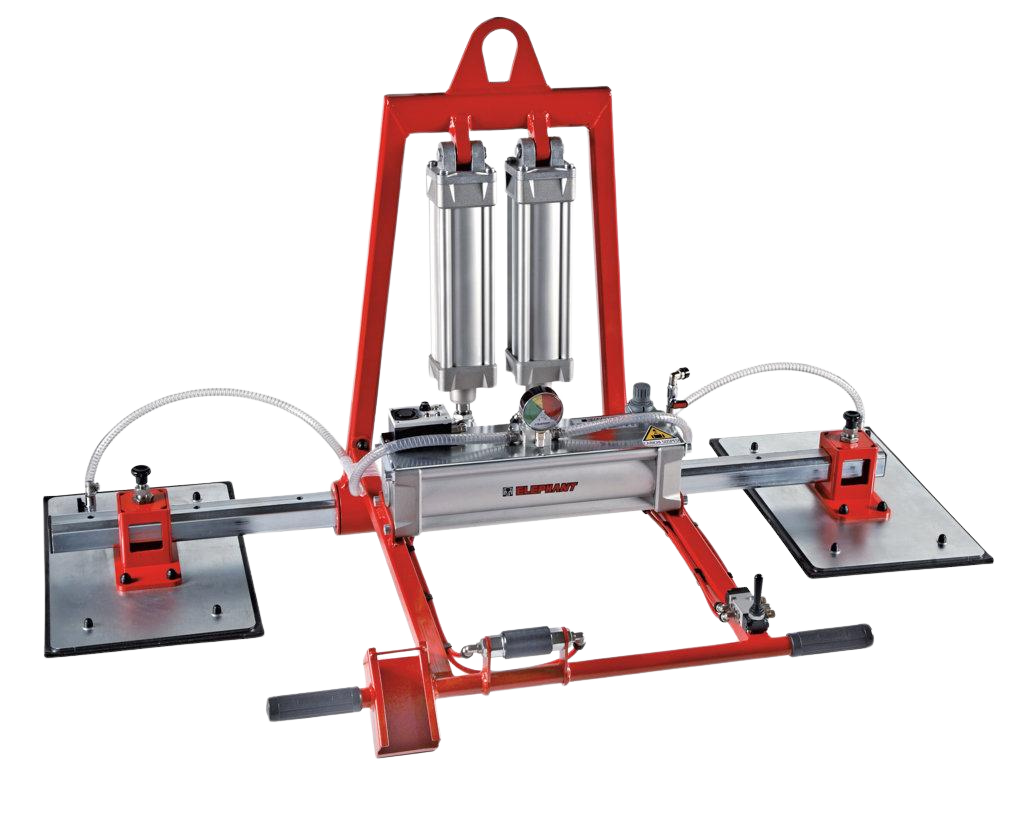

Vacuum lift for panels with pneumatic tilt 0-90 degrees model PNT2RP
- Lifting capacity 200 kg
- Suction cups 2 pcs. 500×300 mm
- Standard gaskets with rubber and foam, suitable for surfaces with slight irregularities
- Larger vacuum tube
- High-quality steel frame
- Suction cups adjustable on the central beam
- Central beam, length 1500 mm
- Compressor driven continuous vacuum pump. air
- Double silencers
- Graduated vacuum gauge with color scale for easier vacuum control
- Air consumption 500 l/min
- Working pressure 7/8 bar
- Alarm system – visual and audible, shows low vacuum level. It works autonomously thanks to replaceable batteries, supplied with a suitable battery power supply
- Central suspension hook
