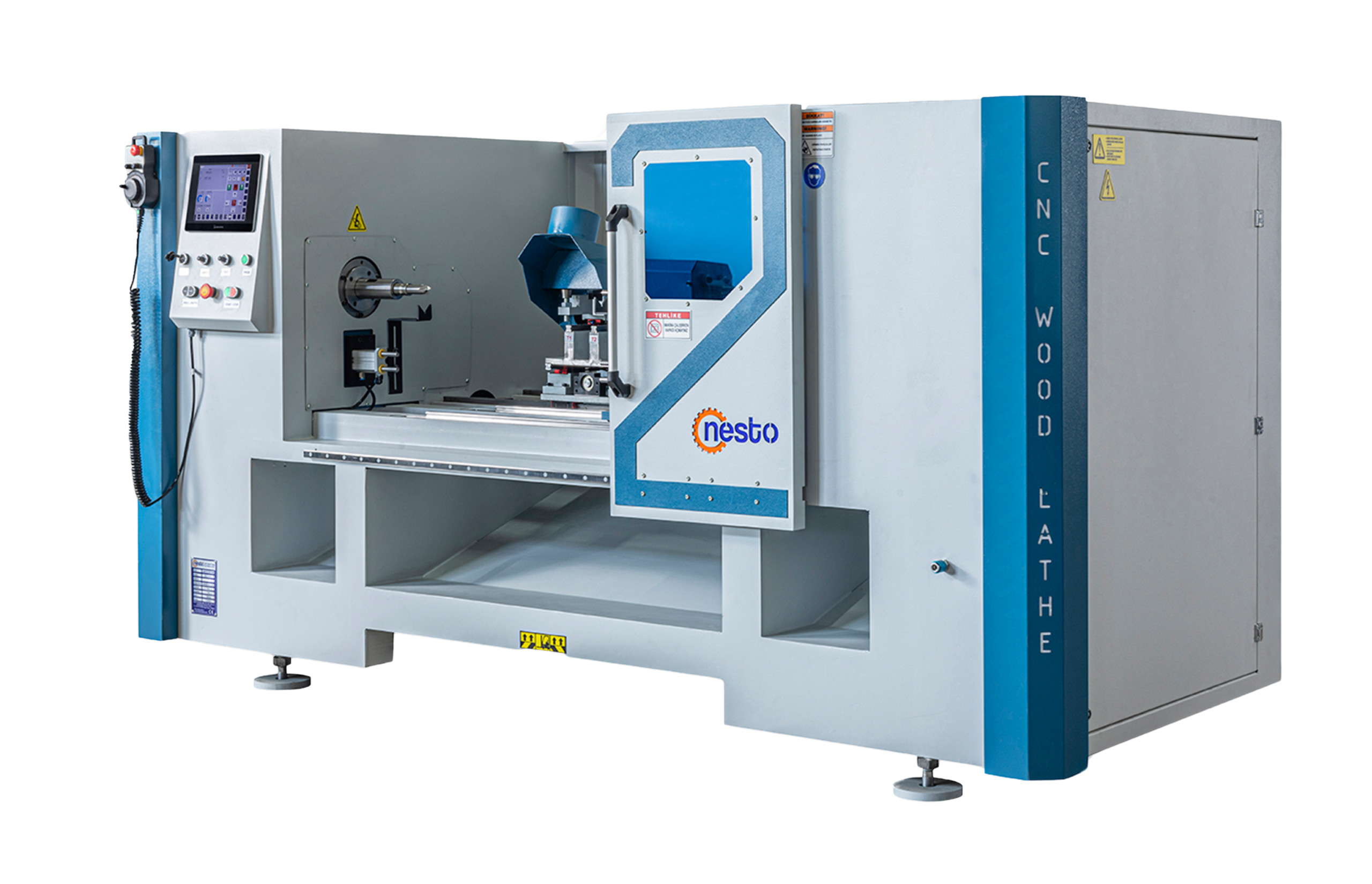

Description
Workpiece Dimensions:
- Max. diameter: 280 mm – Max. length 1000 mm
Machine Dimensions:
- Length: 2800 mm * Width: 1280 mm * Height: 1750 mm
- Control Unit Panasonic
- Z-Axis Travel: 1000 mm
- X-Axis Travel: 170 mm
- Long Axis Speed (Z): 96 m/min
- Short Axis Speed (X): 25 m/min
- Lathe Spindle Speed: 6000 RPM, 8 kW
- Installed Power: 8 kW
- Weight: 1500 kg
- Lubrication Unit Automatic Lubrication ILC
- Workpiece Clamping Pneumatic Piston (7 bars)
- Workpiece Length Adjustment Easy adjustment with remote control (no key, no screw)
- Cutting Blade Triangular/Rounded
- Workpiece Alignment Easy device alignment adjustment
- Software Italian CAD-CAM program specifically for our machine (Pegasus 2 Axis CAD & CAM Program)
