Description

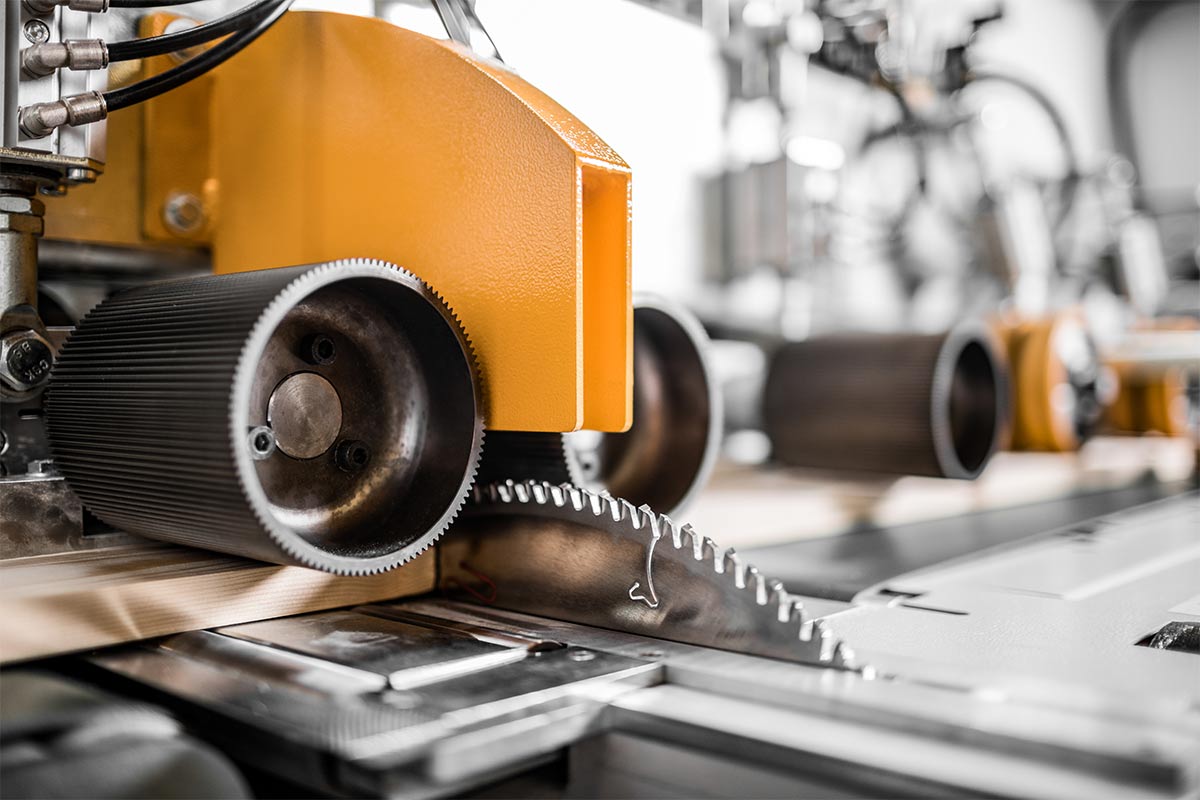

Super-Fast: thanks to an exclusive double workpiece feeding system, very high acceleration and speed rates can be reached with the utmost reliability, while the innovative cutting system is so fast as to make the blade almost invisible to the human eyes.
Extremely strong and reliable: sturdiness, solidity and use of materials and components that minimise subject to wear and replacement parts, thus contributing to curbing maintenance costs.

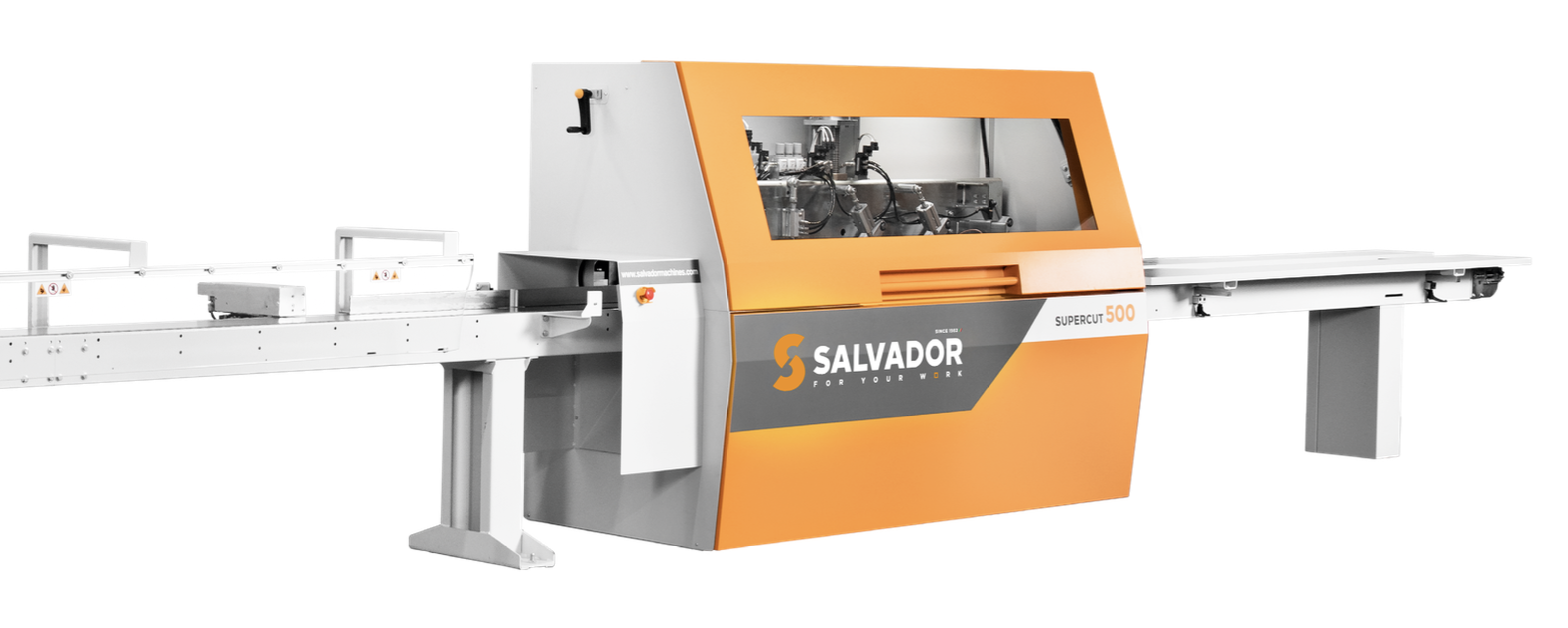

Technologically innovative: Supercut 500 is an absolute leader in technology, thanks to its intelligent and exclusive software that takes advantage of all the potential offered by the simultaneous use of an innovative numerical control system and a powerful computer.
- Maximum feed speed: 200 mt/min
- Belt positioning accuracy: +/- 0,5 mm/mt
- Minumum installed power: 14 kW
- Blade motor power: 5,5 kW (optionaly 7,5 kW)
- Blade diameter: 500 mm (optionaly 450 mm)
- Crosscutting sections: 220 x 60 mm (optionaly 200 x 90 mm, or 200 x 50)
- Compressed air consumption: 400 nl/min, 6 atm
- Dust extraction: Ø 120, speed 45m/s, 1800 m3/h; Ø 100, speed 45m/s, 1200 m3/h
