Description
- Dimensions of the working table 1200×780 mm
- Til table spindle -45° to 45°
- Max tool height with d.35/30 140 mm
- Max tool height with d.40/50 180 mm
- The spindle runs on double bearings 3000/4500/6000/8000/10000 rpm.
- Max. size of the tool hidden under the table 320×50 mm
- Main engine power 5.5 kW (7.5HP) 50 Hz
- Noise level according to EN27960 83.9-87.3 dB (A)
Standard equipment:

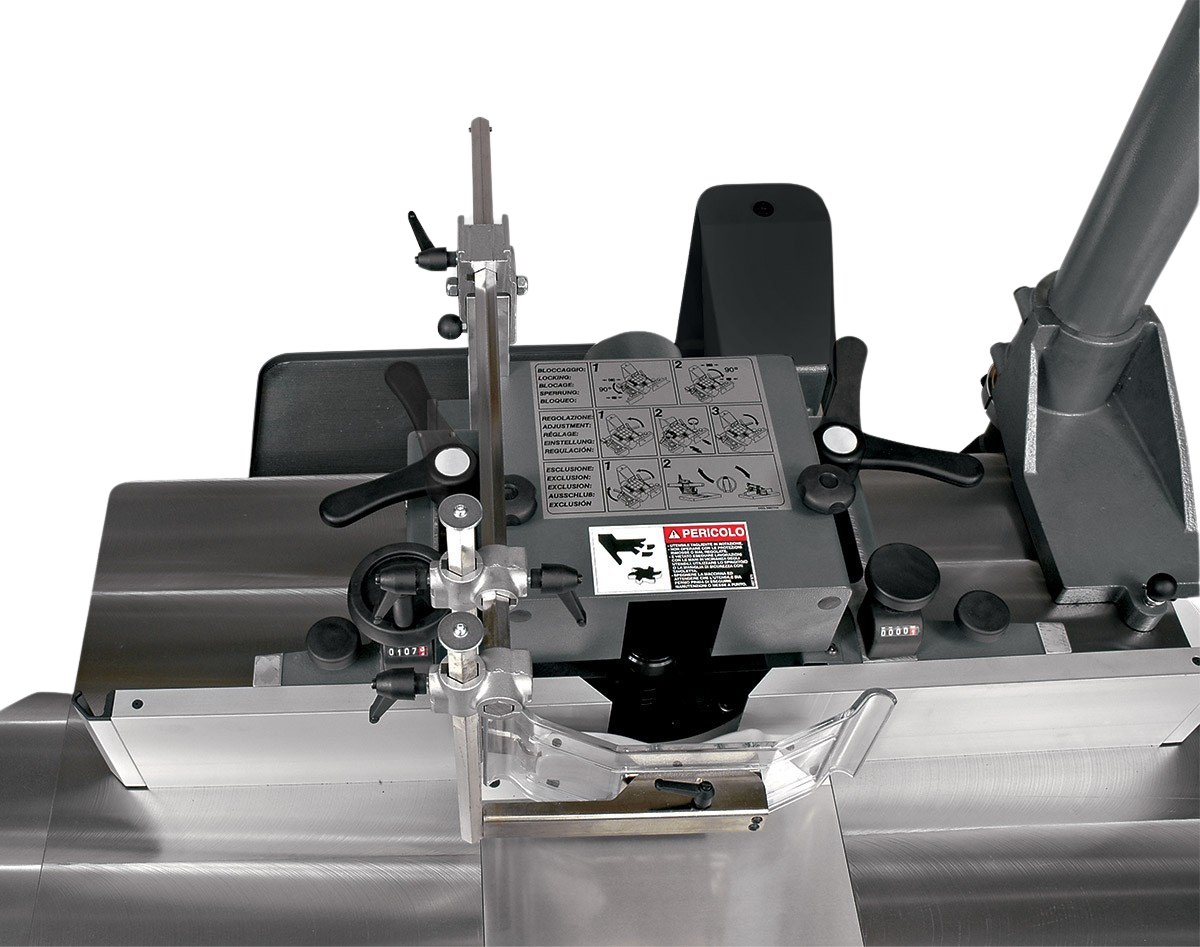

- Adjustable guard (max. tool d.250mm) in a set with a hand wheel and readout, with a motorized unfolding system thanks to which we can clean the table in a few seconds
- Quick locking system of the fence.
- Dust extraction connection on the cover d.120 mm
- Aluminum rulers
- Bottom extraction connection d.120 mm
- Raising and lowering the spindle with mechanical readout
- Electrical reading of the spindle inclination
- Mechanical brake activated by pedal
- Automatic raising and lowering of the spindle with an accuracy of 0.1 mm
- Automatic spindle tilting with an accuracy of 0.1
- Adjustable pressure for elements, set depending on the diameter of the tool
- Enlarged case front “panel” to facilitate spindle speed changes
Additional options included in the price:
- Main engine power 7.5 kW
- “L” version – CE compliant milling machine with extended tables
- Table dimensions 2500×780 mm
- Extending the table with a 400mm extendable support
- Additional roll on the right side of the table
