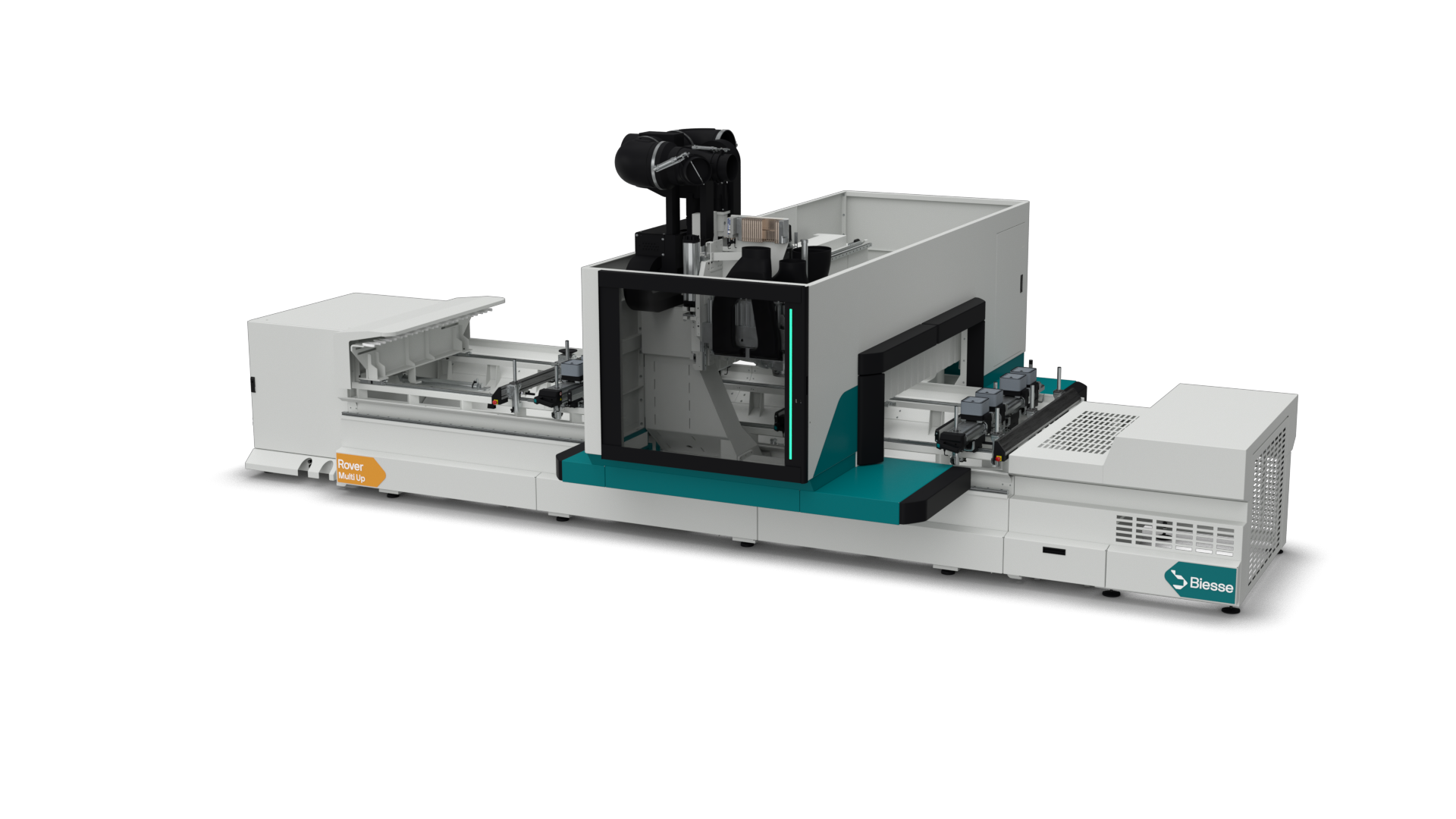

CNC POD & RAIL MACHINING CENTER BIESSE ROVER MULTI UP M G P 1556 (BIESSE ROVER A 1556)

CNC POD & RAIL MACHINING CENTER BIESSE ROVER MULTI UP M G P 1556 (BIESSE ROVER A 1556)

The ROVER MULTI UP M G P series machining centers are specifically designed for the daily operations of drilling and milling when processing panels, doors, door components, and furniture. As a guarantee of product quality, BIESSE has held the ISO 9001 certification since 1995 and operates in accordance with the UNI EN ISO 9001: 2015 standards. Most of the components installed in the machining centers are produced by companies within the BIESSE Group or by well-known global brands listed in the “Qualified Supplier Register,” who have been collaborating with Biesse for many years.

Categories: ,

Description

Numerically controlled machining center ROVER MULTI UP M G P 1556

  • Working fields (vertical electrospindle axis reference):
  1. X = 5540 mm,
  2. Y = 1560 mm for 4-axes unit, 1570 mm for 5-axes unit,
  • Automatically lifting strips system,
  • 10 ATS panel supports – 40 sliding bases,
  • 7 additional connections with quick coupling, to connect special jigs to the auxiliary vacuum system of the machine,
  • Stop of the back line with a stroke of 115 mm and extension of 25 mm,
  • Stop of the middle line, positioned at 685 mm, with a stroke of 140 mm,
  • Stop of the front line, positioned at 1348 mm, with a stroke of 140 mm,
  • 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh),
  • 8 aluminium lifting bar supports for loading ease of large and heavy pieces,
  • Belt conveyor for chips and off-cuts removal,
  • 13 kW (17.4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
  • Liquid chilling unit for liquid cooled systems Capable to chill two electrospindles or one electrospindle and one liquid cooled boring head,
  • Boring head BH 17 L,
  • Rack tool changer with 12 places installed on the basement,
  • 16 positions Revolver Toolchanger, positioned on the X axis carriage,
  • Tool-holder with HSK F63 adaptor, equipped with a long flange for sawblade used on 5-axes unit,
  • 300mm sawblade for tool-holder with flange,
  • Wired remote keyboard,
  • bSolid 3D CAD-CAM program to design, simulate and manage the machining processes of the Biesse machining centers and boring machines,
  • Additional license for bSolid * It includes 1 USB key for software activation.
