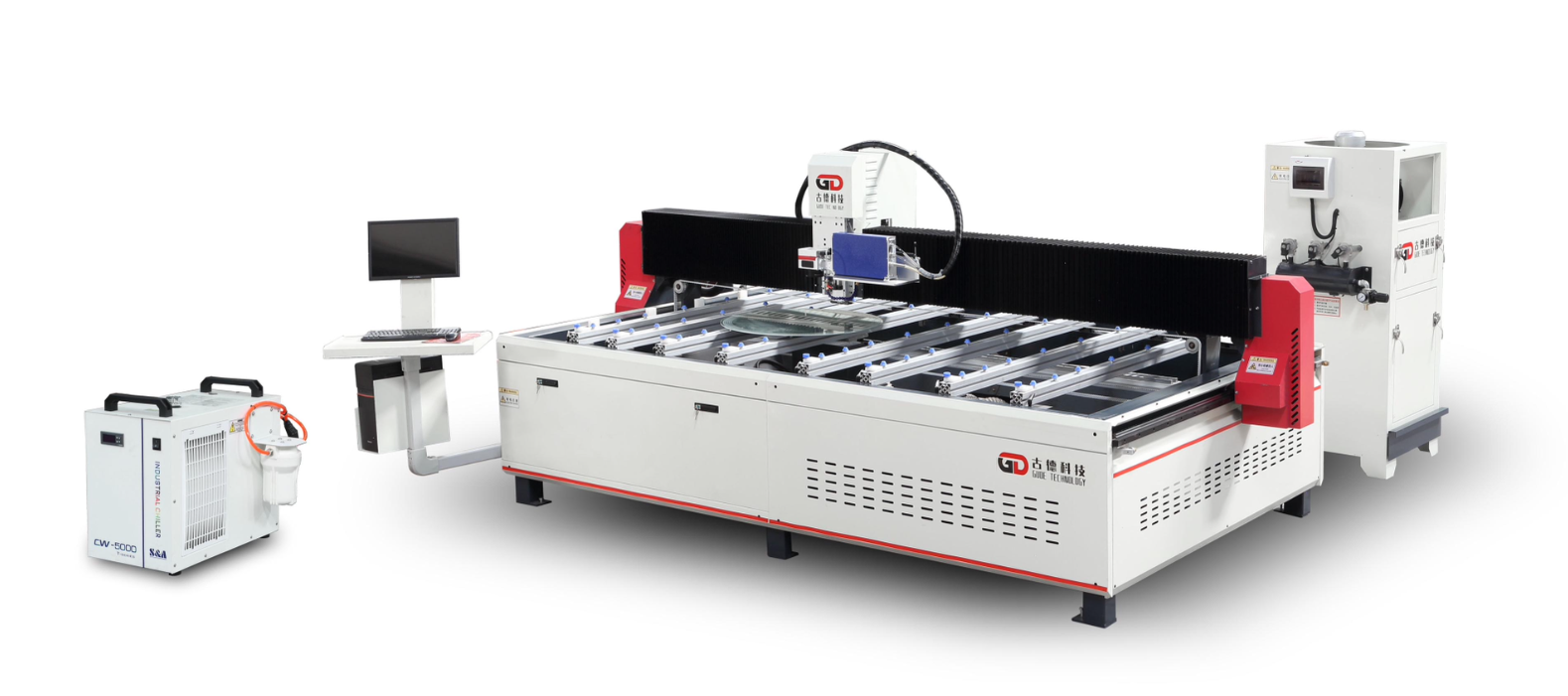

The Third Generation Sandblasting and Engraving Laser.

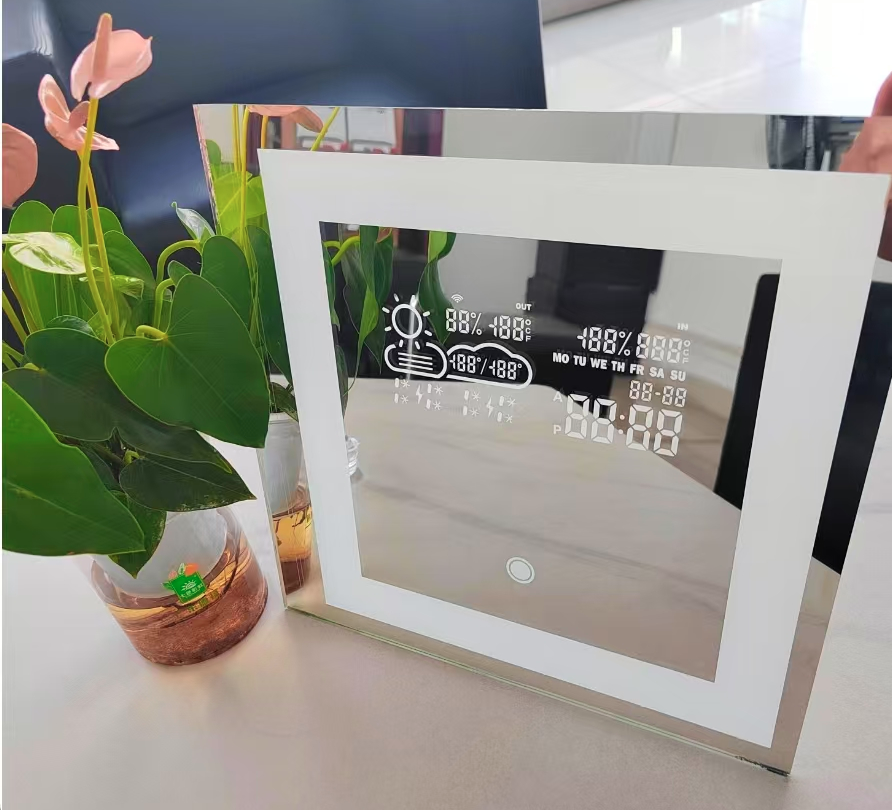

A precise laser machine developed to meet the current needs of the sandblasted glass, decorative glass, and smart mirror industries.

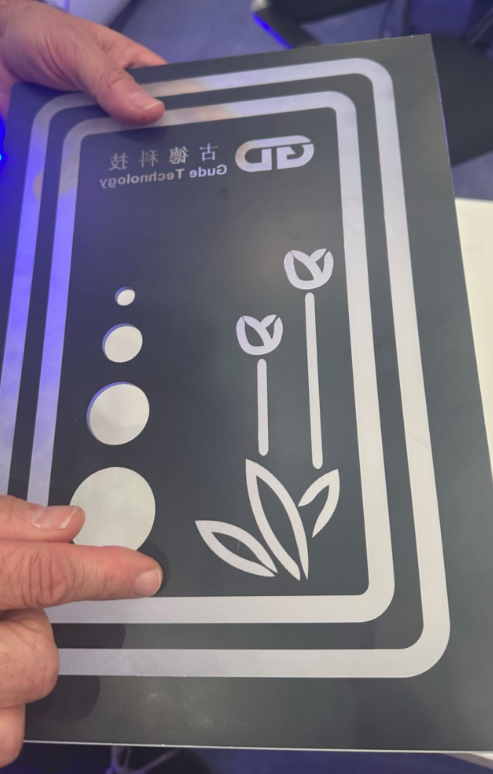

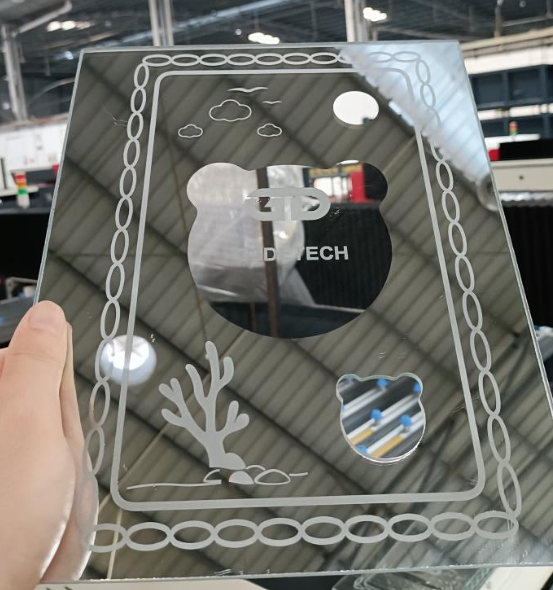

This machine is designed not only for paint and mirror coating removal, or Low-E coating removal, but also to achieve frosting/sandblasting effects, with the added function of drilling. For this reason, it is called a “three-in-one” machine.
The device is suitable not only for clear glass, tinted glass, and mirrors, but also for surface marking on most plastics, stainless steel, aluminum oxide, copper, and other alloy materials.
| Operating way | Fiber Laser | |
| Power of laser generator | 120W | |
| Life service time of laser | ||
| Generator | Theoretically 80000-100000 hours | |
| *Galvanometer | ||
| *Max frosting width | 155 mm | |
| Function | ||
| Min drilling diameter | 2 mm | |
| Max drilling diameter | 110mm -160mm | |
| Processing size: | ||
| – Min | 10×10 | |
| – Max | 1220×2500 | |
| Machine size | 5200×2400mm | |
| Weight | Around 1500 kg | |
| Total power | 6,8 kW | |
| Machine Repeat accuracy | ≤±0,25 mm | |
| Laser repeat accuracy | ≤±0,002 mm | |
| Working Speed | 0-40 m/min |
