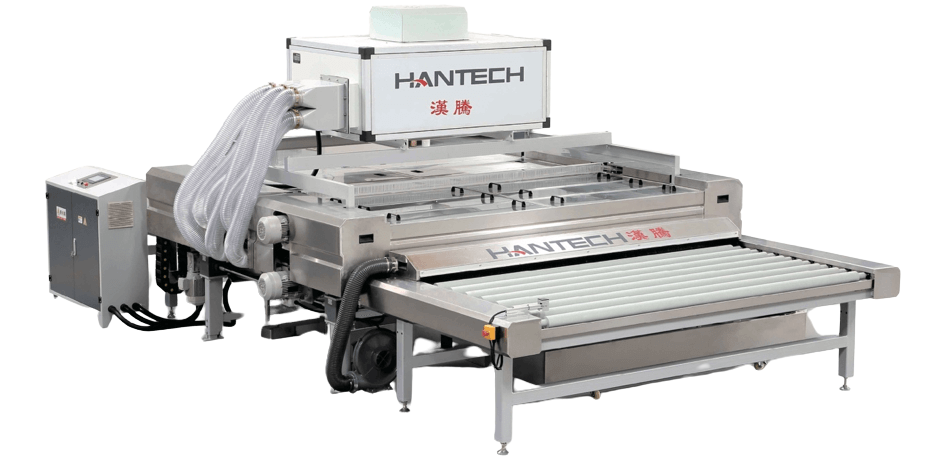

HORIZONTAL WASHER HANTECH HQX1600

Description

• The main frame is made of aluminum, which is easy to maintain and ensures a longer lifespan.
• Other panels and parts not in contact with water are powder-coated with high-quality industrial coatings.
• All parts in contact with water are made of stainless steel.
• The maximum lifting height is 350 mm, ensuring convenient maintenance.
• Pre-washing system (two rows of pipes, independent water tank).
• 3 pairs of brushes + 3 pairs of air knives.
• Cone gear transmission, frequency adjustment, digital display, separate drive for upper and lower brushes.
• PLC control and touchscreen display.


  Model	HQX1600
  Brush and air knife configuration	3 pairs of brushes (1x top for Low-e), 3 pairs of air knives (2x straight, 1x angled).
  Minimum glass size	350×350 mm
  Glass thickness	3-19 mm
  Speed	3-15 m/min
  Maximum lifting height	400 mm
  Working height	860-960 mm
  Maximum glass width	1600 mm
  Weight	3,6 t
  Power	24 kW
  Energy consumption for the water circulation	0,55 kWx4
  Machine dimensions	6080x3300x2600 mm
