Description
Technical features and options
Despite its compact design, it excels in every edgework, making it a versatile choice for various glass working applications and offering big results in a small footprint.

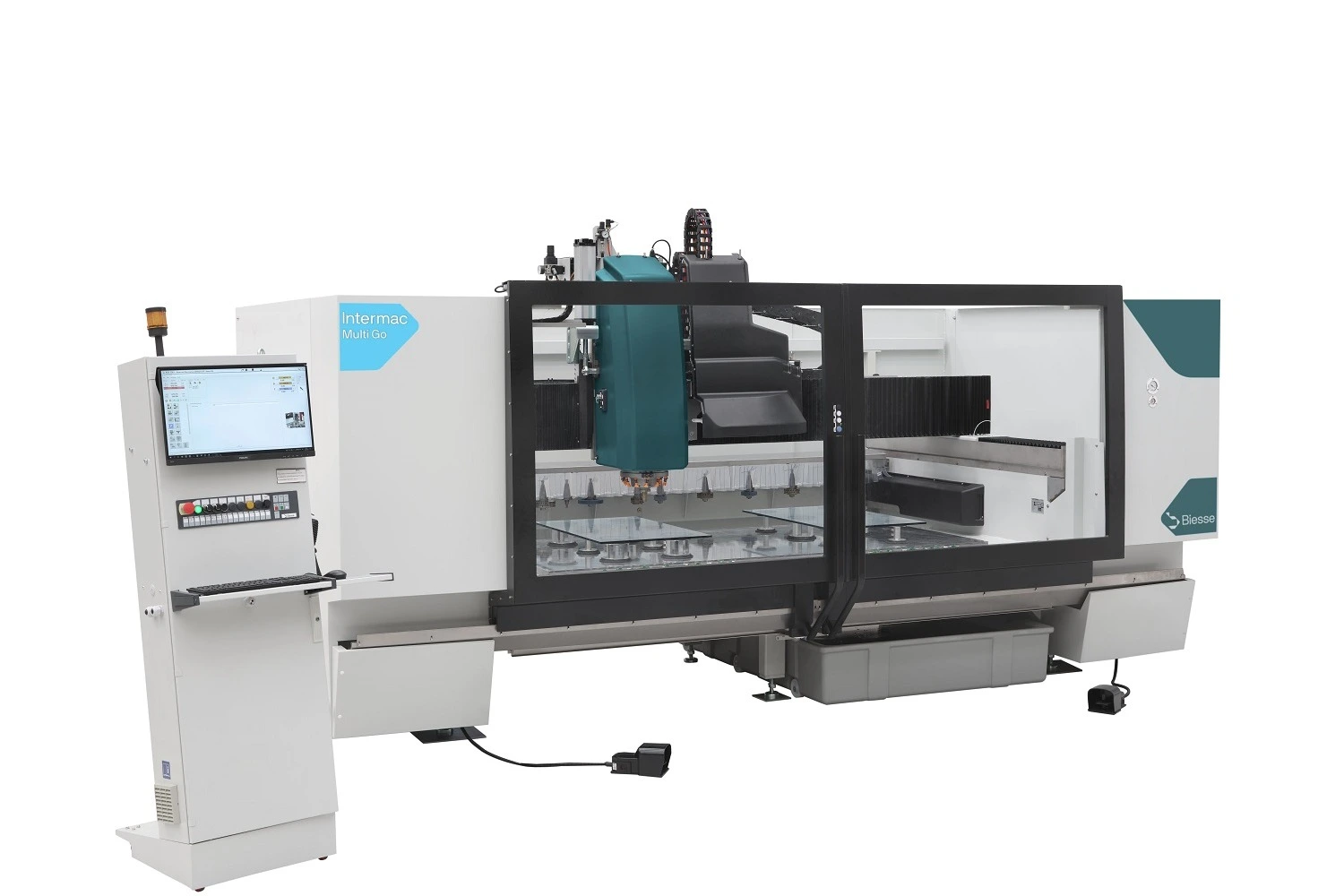

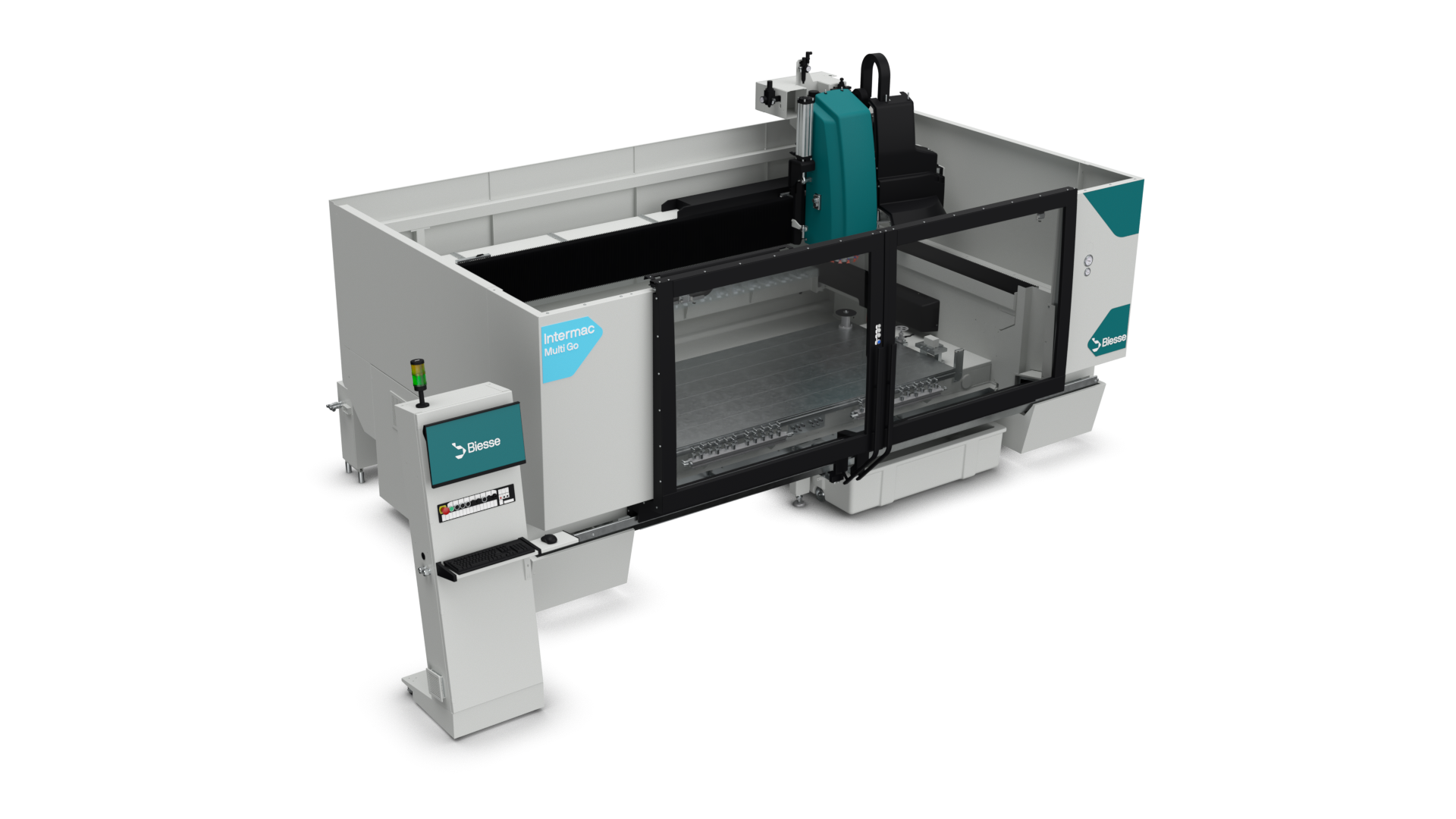

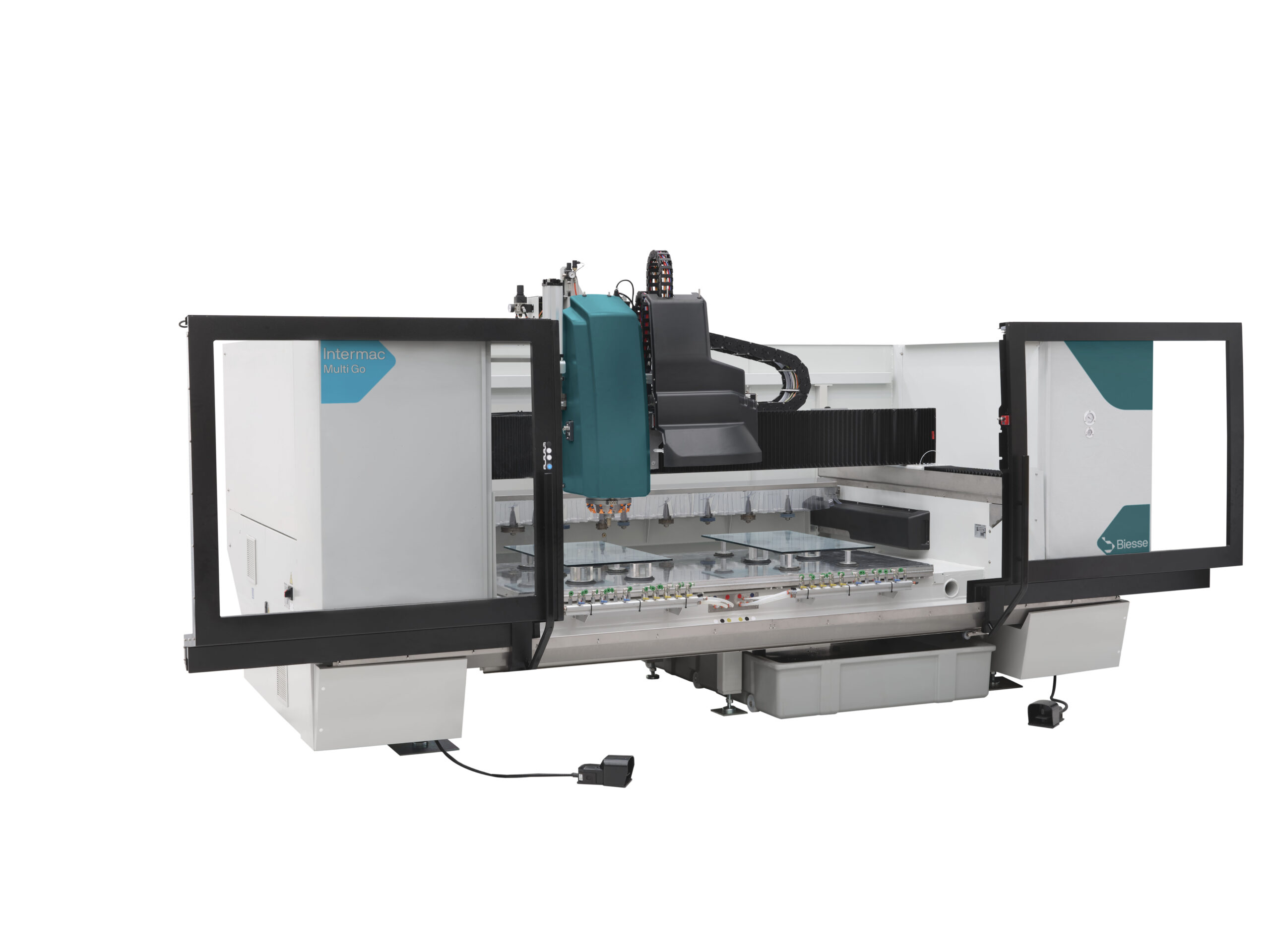

CNC machine for processing building components, including milling, drilling, polishing, and cutting glass.
- 9,2 kW electro-spindle,
- 18-position tool rack for efficient operation

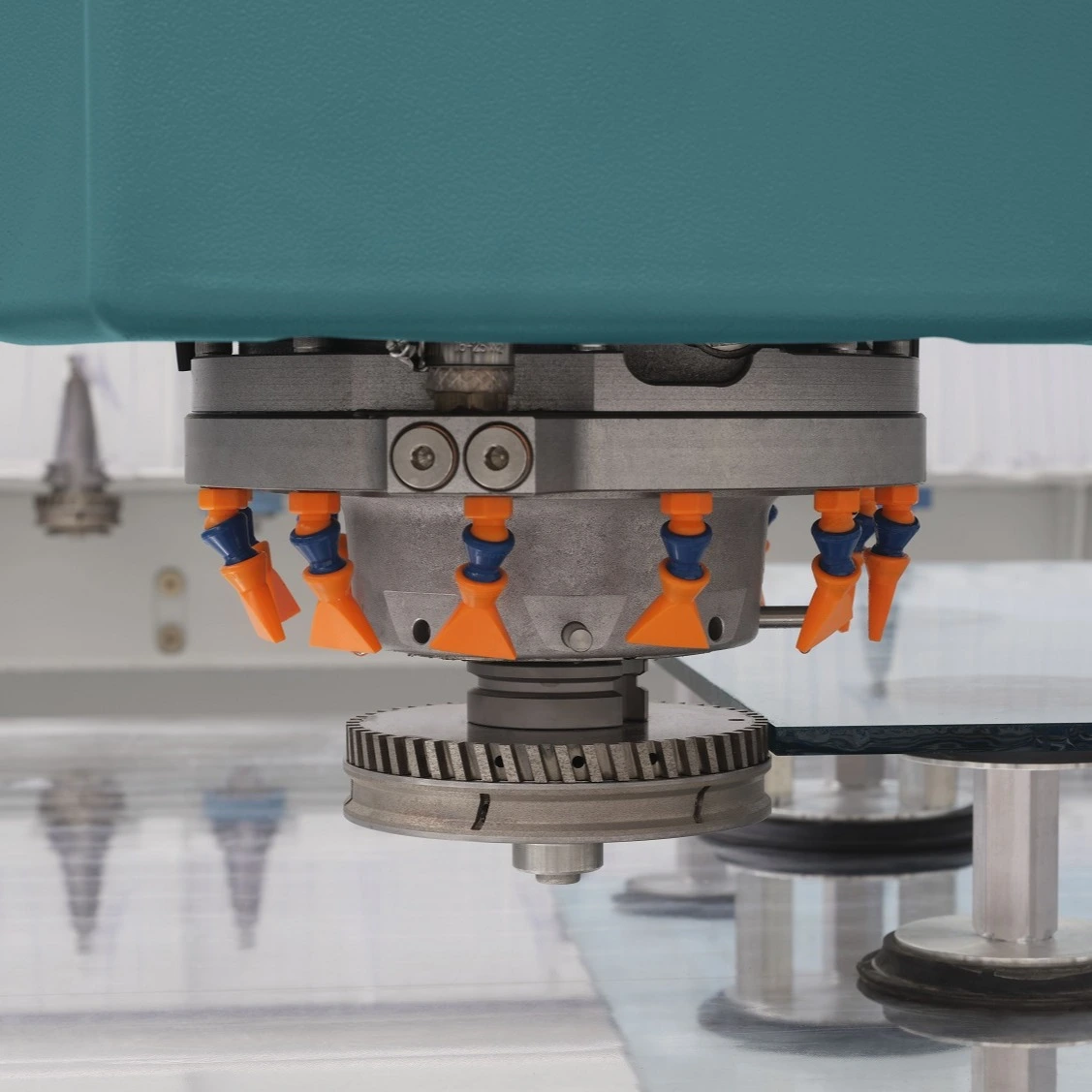

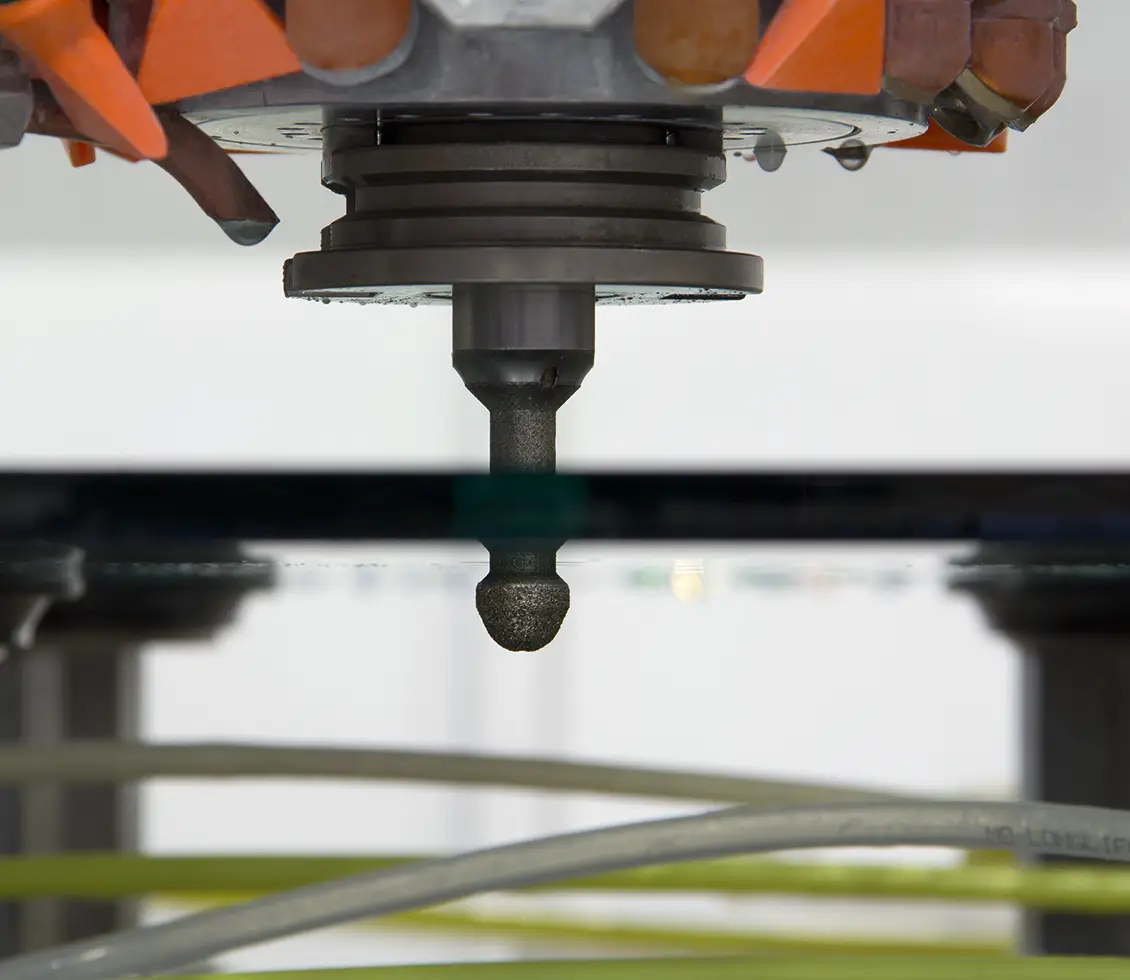

- The Helix drilling bit creates perfect countersink holes, forming both sides in a single drilling cycle. This Biesse-patented solution is used worldwide
| Technical Specifications | |
| Sizes | 23 |
| Working area (mm) | 2500 x 1200 (*) |
| Max glass thickness (mm) | 100 |
| Operator unit | 9.2 kw spindle by HSD iso 40 |
| Max tools number on racks | 18 + On head tool rack 8 pos. (opt) |
| Axes | 3 / 4 (opt) |
