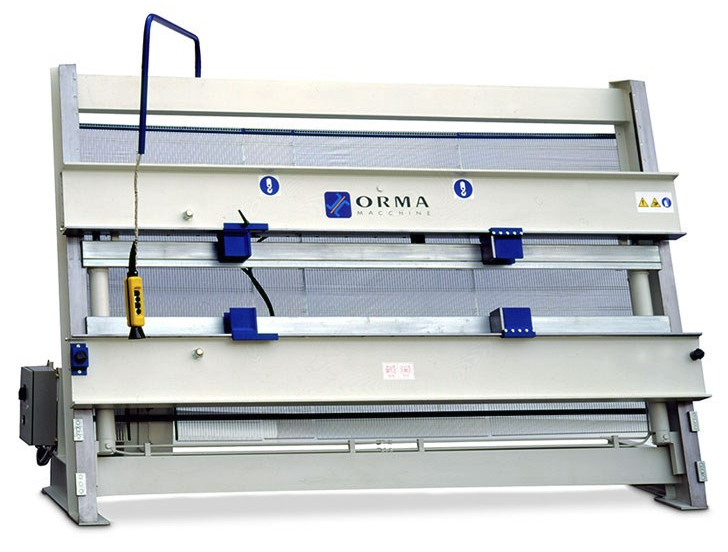

Description
- Maximum mounting opening dimensions* 3500 x 2500 mm
- Minimum mounting opening dimensions 250 x 350 mm
- Vertical cylinders 2 pcs, Ø65/40 mm, stroke 1300 mm
- Total lifting capacity of vertical cylinders 7.4 tons
- Horizontal cylinders 2 pcs, Ø50/30 mm, stroke 1500 mm
- Total lifting capacity of horizontal cylinders 2 tons
- Hydraulic unit 1.5 kW
- 3 positions of the lower beam
- Pressure is adjusted directly from the hydraulic control unit using a knob; during operation, the current pressure is displayed on the gauge.
- Hydraulic unit with oil bath pump for better noise reduction and lubrication. 1.5 kW motor mounted on the oil tank.
- Rack system allows precise movement of the upper beam
- Load-bearing structure made of welded iron elements
- Control panel:
- Button for vertical movement of the beam
- Button for vertical clamping
- Button for opening corners of the horizontal clamp
- Button for horizontal corner clamping
- Additional button for two-hand activation of press functions
