THROUGFEED CNC DRILLING MACHINE BIESSE ROVER DRILL PRO T C M R8 (BIESSE INSIDER FTT R8)

Description

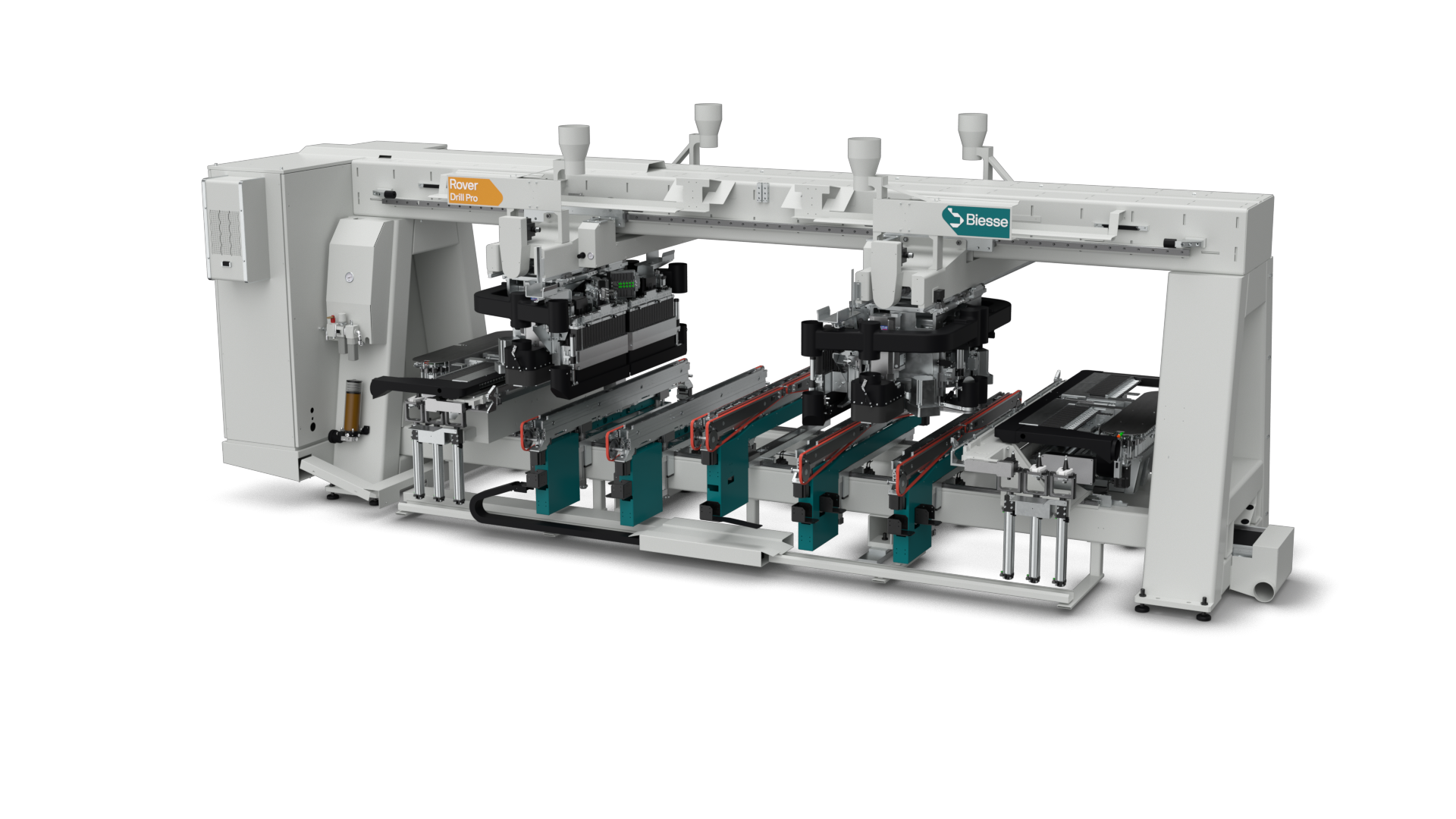

Flexible CNC through-feed boring machine ROVER DRILL PRO T C M R8

1. Length (X): 240 – 3100 mm,
2. Width (Y) two panels: 140 – 800 mm,
3. Width (Y) one panel: 140 – 1550 mm,
4. Thickness (Z): 12 – 60 mm,

• Working table height from floor: 900 mm,
• Double conveyor with belts for panel introduction, with crosswise feeding and double motorization,
• Manual feeding system with idle wheels for loading conveyor,
• BH18 Horizontal Operating Units with independent spindles – X working direction,
• Drillbit-holder for quick connection spindles of the boring head,
• Electro-pneumatic prearragement fot the subsequent installation of the 2 chain tool magazines,
• Belt conveyor for double stacking, with crosswise feeding and single motorization,
• Manual stacking system with idle wheels for unloading conveyor,
• Biesseworks office version (2 hardware keys).
