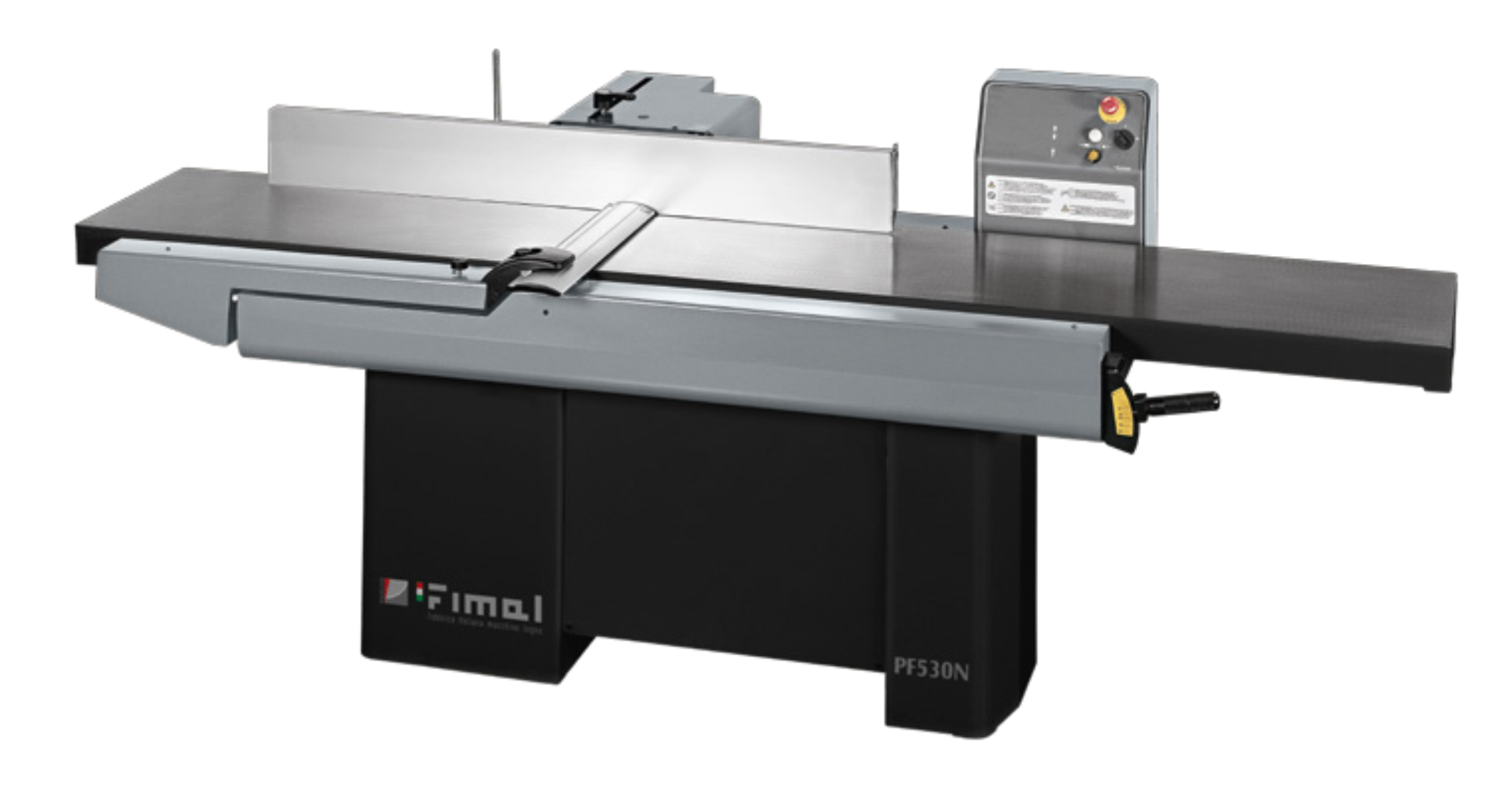

JOINTER FIMAL PF530N

Description

• Useful working width: 530 mm
• Total table length: 3000 mm
• Feed table length: 1800 mm
• Inclined guide (0-45°): 1500 x 175 mm
• Main motor power: 4 kW 50 Hz
• Noise level according to EN27960 standard: 82.8-88.8 dB (A)
• Spindle guard
• Depth of planing readout
• Spiral shaft with 3 spirals, includes:
  • Carbide knives (blades) 15x15x2.5 mm R95 37°
  • 2 TORX T20 bits
  • 1 torque wrench calibrated to 5.7 Nm
• Depth of planing readout
• Manual control of feed table movement
• Maximum material removal thickness: 8 mm
• Electrical installation in compliance with CE Standards
• Dust extraction port Ø 150
• Machine weight: 700 kg
