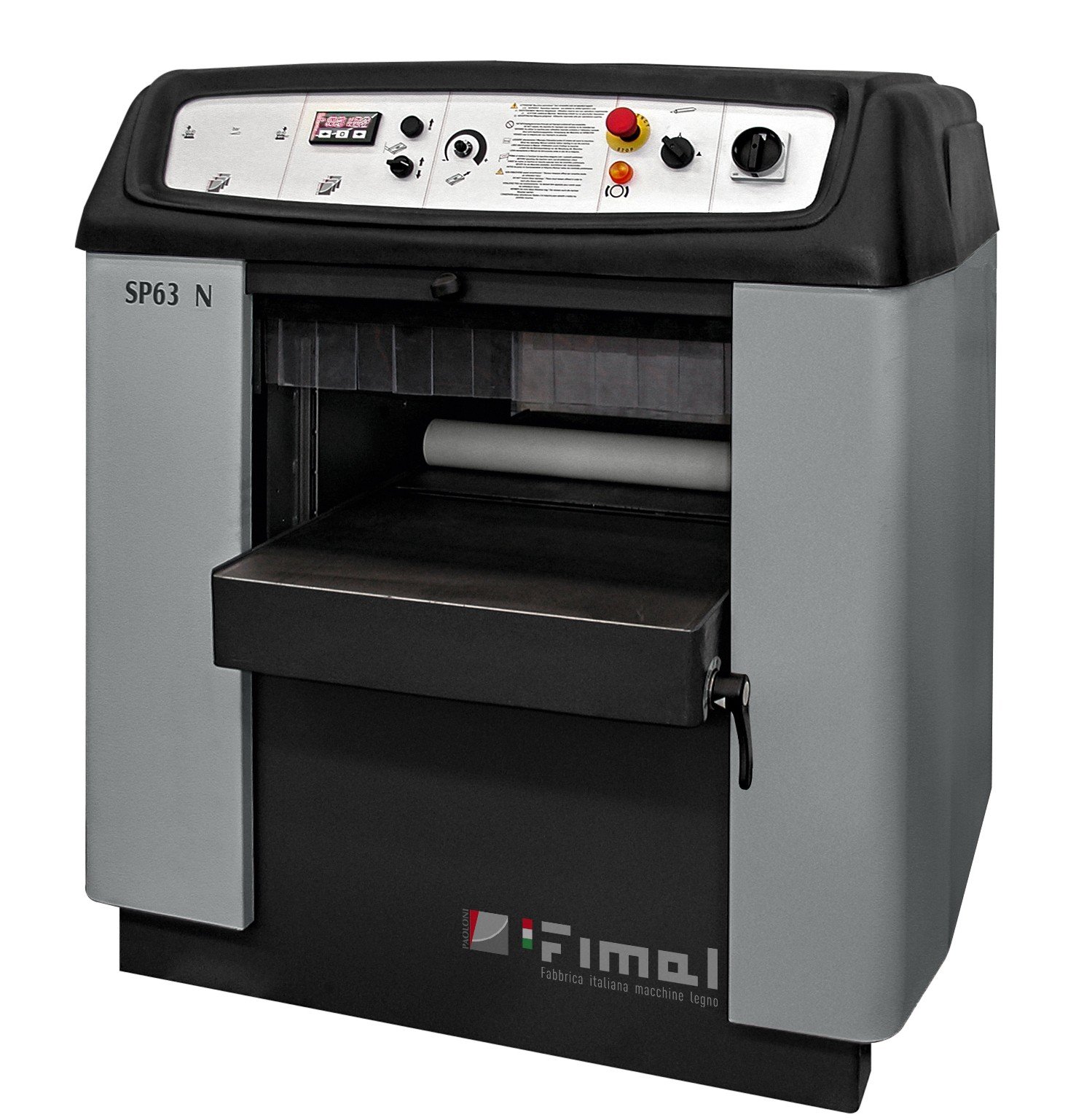

PLANER FIMAL SP63N

Description

• Min/Max working height: 3 mm / 310 mm
• Maximum planing thickness: 8 mm
• Spindle diameter: Ø120 mm
• Number of knives: 4 pcs
• Spindle speed: 4,800 RPM
• Table lift mechanism using 4 trapezoidal screws
• Automatic table lifting with micro metric adjustment
• Height reading accuracy with decimal precision
• Dust extraction port: Ø150 mm
• Electromagnetic brake
• Machine weight: 740 kg
• Feed speed (step adjustment): 5-7.5-11.5-18 m/min
• Minimum length of planed element: 250 mm
• Main motor power: 5.5 kW (7.5 HP) 50 Hz
• Noise level according to EN27960 standard: 86-90 dB (A)
