VACUUM MANIPULATOR ELEPHANT B250/5 + KQ3SD/1S + TV2

Description

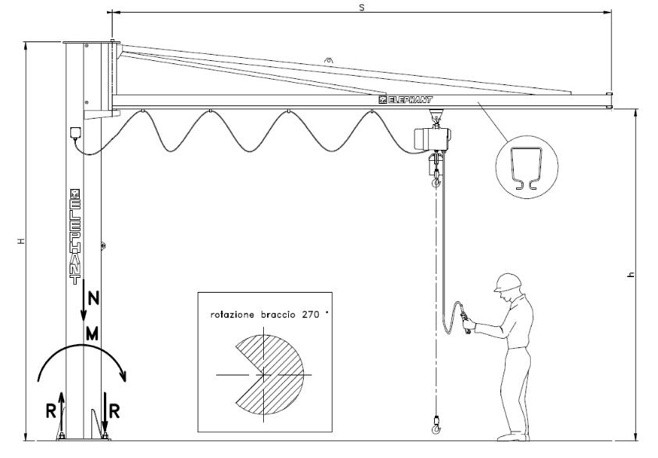

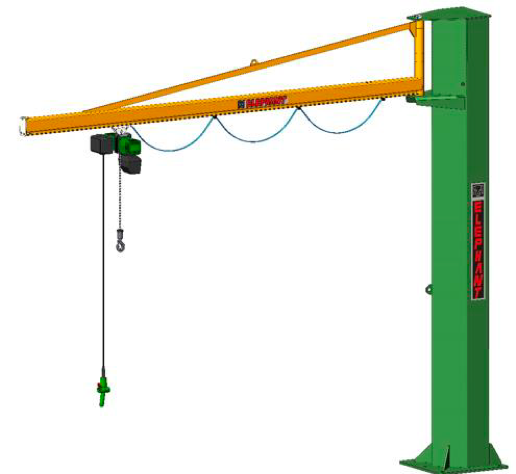

Crane column model B-250/5

• Load capacity: 250 kg
• Boom reach: 5 m
• Column height: 3.5 m
• Height under the boom: 2.8 m
• Hook height: 2.3 m
• Manual trolley included
• Rotation angle: 270°

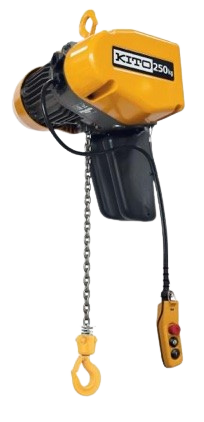

Electric hoist, manually moved, model KQ3SD/1S

• Load capacity: 250 kg
• Lifting speed* 10/1.7 m/min
• Power supply – control panel: 24 V
• Power supply: 380 V, 50 Hz
• Hook displacement: 3 m
• Hoist power: 0.5 kW

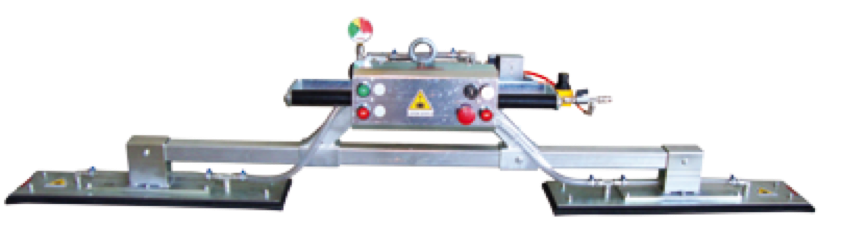

Vacuum lift for wooden elements and boards model TV2

• Load capacity 200 kg
• 2 suction cups 700×160 mm
