Description

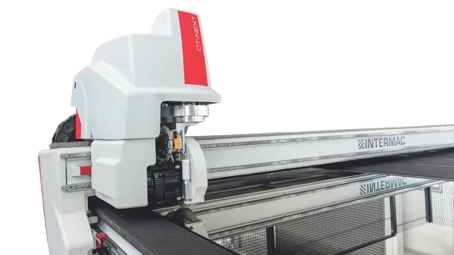

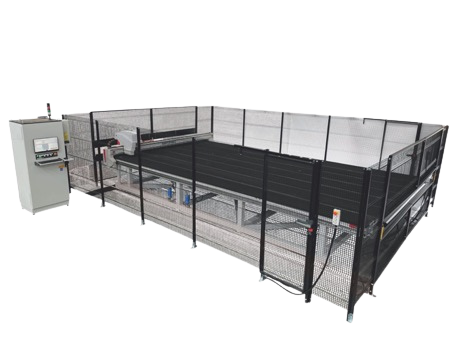

TECHNICAL DATA GENIUS 37 CT-NEXT:
- Machine dimensions: 4800x3400x1980 mm
- Dimensions with fencing: 4800x4870x1980 mm
- Min. glass size: 600x500x2 mm
- Max. glass size: 3710x2750x19 mm
- Max. axis speed: 200 m/min
- Max. acceleration: 1G-10 m/sec²
- Precision of head positioning: 0.15/2000 mm
- Working table height: 900 mm
- Machine weight: 2400 kg
- Electrical cabinet weight: 300 kg
- Max. installed power: 8.9 kW (9.3 kW in T version)
TECHNICAL DATA GENIUS 61 CT-NEXT:
- Machine dimensions: 7200x4000x1980 mm
- Dimensions with fencing: 7200x5400x1980 mm
- Min. glass size: 600x850x3 mm
- Max. glass size: 6100x3355x19 mm
- Max. axis speed: 200 m/min
- Max. acceleration: 1G-10 m/sec²
- Precision of head positioning: 0.15/2000 mm
- Working table height: 900 mm
- Machine weight: 4000 kg
- Electrical cabinet weight: 300 kg
- Max. installed power: 8.9 kW (9.3 kW in T version)
