Description

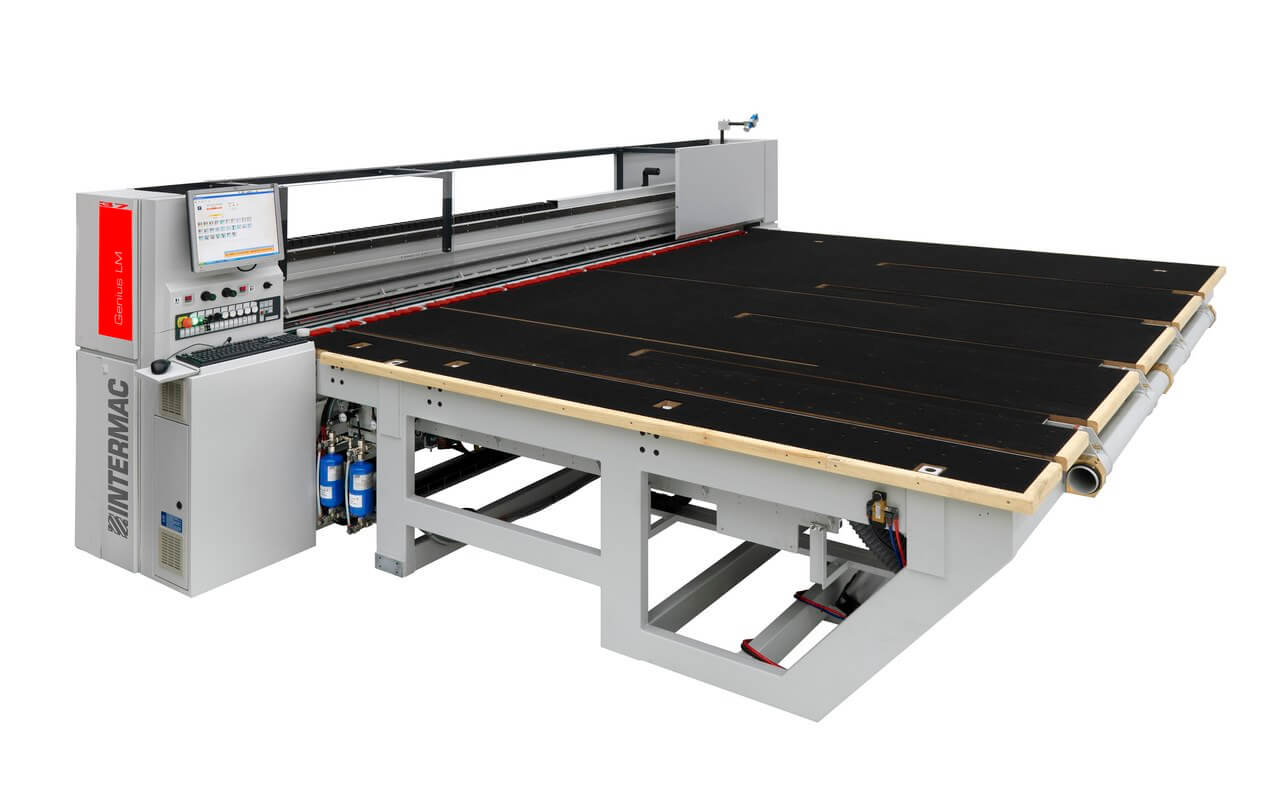

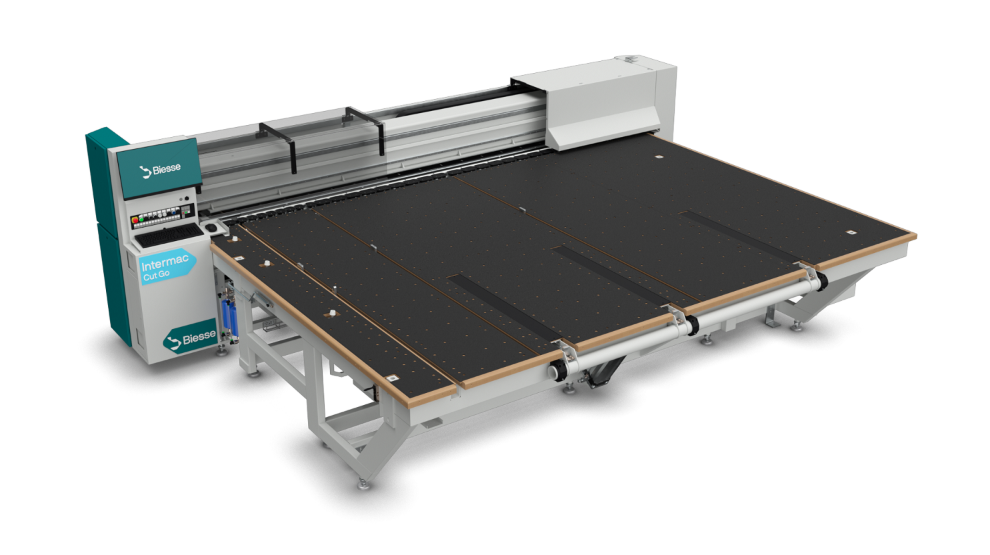

Compact, user-friendly cutting table designed for efficient laminated glass processing.

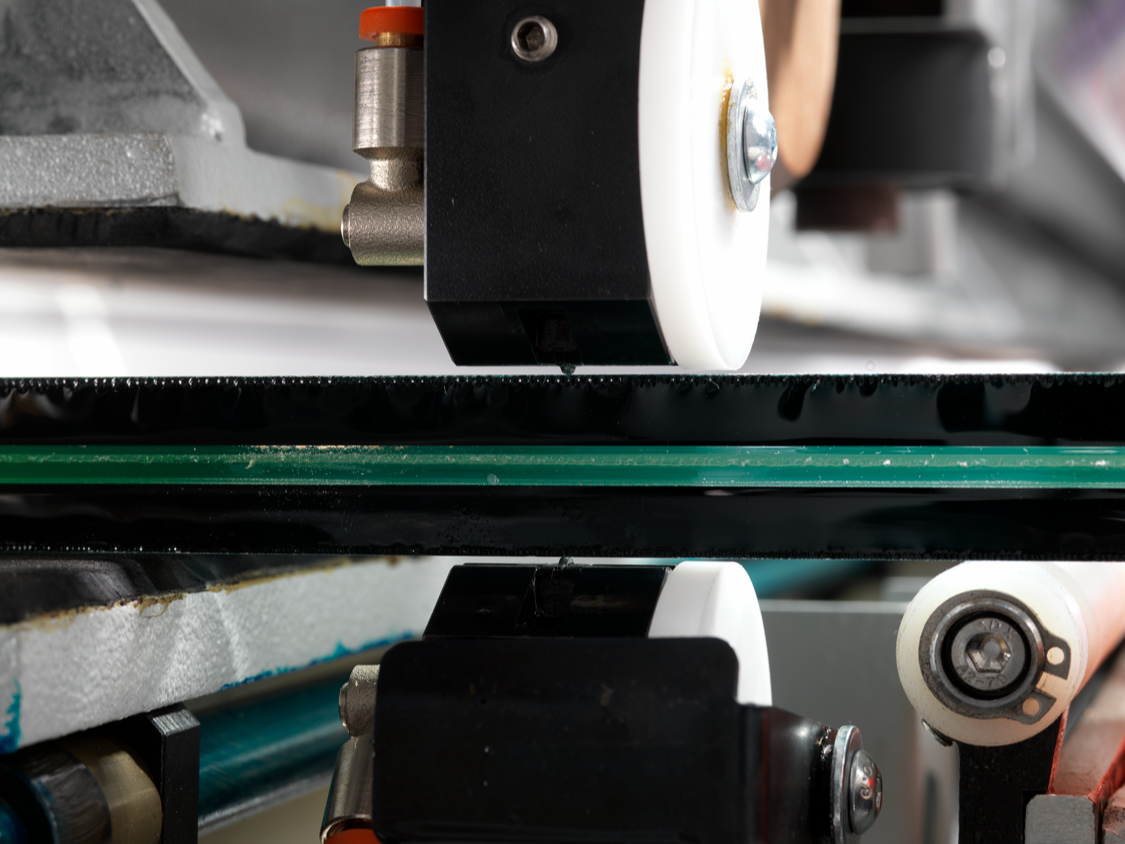

It is capable to automatically perform all the main operations like scoring, breaking and separation, including PVB heating and cutting.
Equipped with advanced technological features and operator-assist devices found in top-tier machines, it’s the ideal choice for getting the job done with ease and efficiency, without requiring a large investment.
| Technical Specification | |
| Size 37 | |
| Max workable glass | 3710mm |
| Min workable glass | 150mm |
| Minimum breaking | 20mm<44.2> – 60mm <66.4> |
| Minimum separation | 60mm |
| Workable glass thickness | 33.1 – 1010.4 |
| Max cutting speed | 100m/min |
| Low-E processing | BCR |

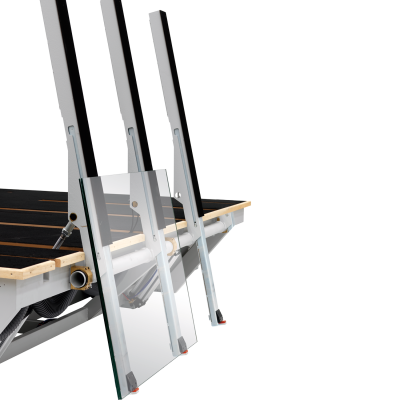

| Loading mode | Loading table – Tilting arms |
Options included
PCC4050288 1
Steel laminated tools kit:
10 wheels D.5.6 – 155°
10 wheels D.5.6 – 152°
10 wheels D.5.6 – 145°
4 steel wheel-holders
10 pins
PCC2006062 1
Perfect Cut ONE-L: for laminated machine PC; software straight and shaped optimization. It includes label
creating and printing software (printer not included). Import of work order lists into the optimizer using text or
excel type files included. Perfect Cad included. Two (2) years of service assistance and updating included.
