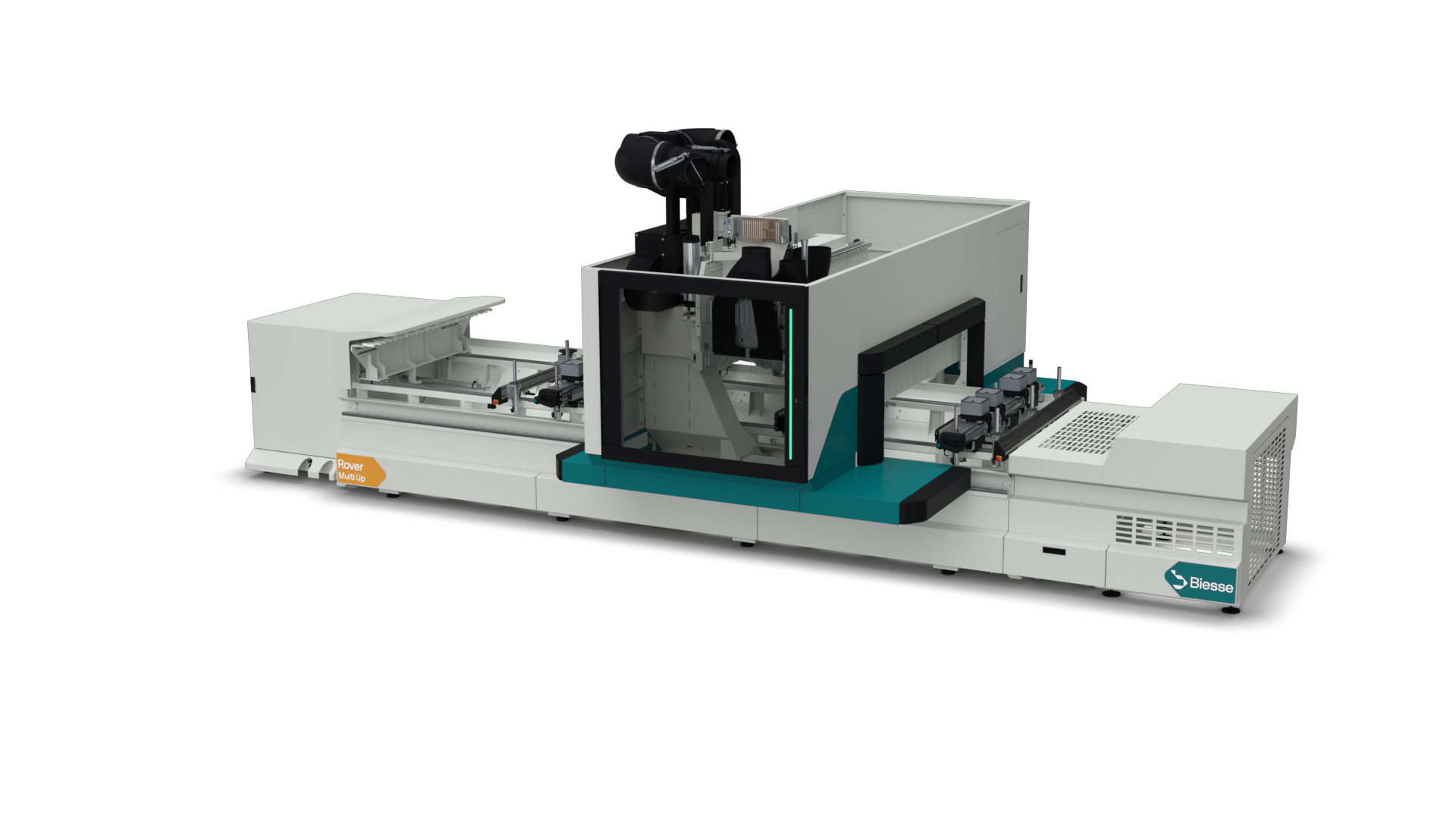

CNC POD & RAIL MACHINING CENTER BIESSE ROVER MULTI UP M G P 1542 (BIESSE ROVER A 1542)

Description

• Working fields (vertical electrospindle axis reference):

1. X = 4140 mm,
2. Y = 1560 mm for 4-axes unit, 1570 mm for 5-axes unit,
3. Z = 200 mm z modules H74 mm / conf. 1A and 3A,
4. Z = 245 mm z modules H29 mm / conf. 1A and 3A,
5. Z = 230 mm z modules H74 mm / conf. 1B and 3B,
6. Z = 275 mm z modules H29 mm / conf. 1B and 3B.

• Length of the working tables = 1500 mm,
• 8 ATS panel supports – 24 sliding bases,
• 8 Stop of the back line with a stroke of 115 mm and extension of 25 mm,
• 8 Stop of the middle line, positioned at 685 mm, with a stroke of 140 mm,
• 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
• 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
• 4 removable central stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
• 2 Additional central stops with a stroke of 140 mm (1 Lh + 1 Rh),
• Linear laser projector for pieces reference,
• 250 m3/h rotary claws vacuum pump,
• N. 2 Single movement Uniclamp module – H=74 mm. For pieces with thickness between 40 and 98 mm,
• N 12 Double movement Uniclamp module – H=74 mm. For pieces with thickness between 40 and 98 mm,
• Belt conveyor for chips and off-cuts removal,
• 16.5 kW (22.5 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
• Liquid chilling unit for liquid cooled systems,
• Boring head BH 17 L,
• Chain tool changer with 22 places at 180 mm centerdistance,
• HSK F63 Aggregate with 2 outlets for horizontal routings or sawblade maximum diameter 215mm,
• HSK F63 Aggregate with 3+1 spindles for horizontal borings, 22 mm spindle centerdistance,
• BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
• bSolid – External format import,
• bSolid – Surface Design,
• bSolid – 3 Axes machining,
• bSolid – 5 Axes Machining.
