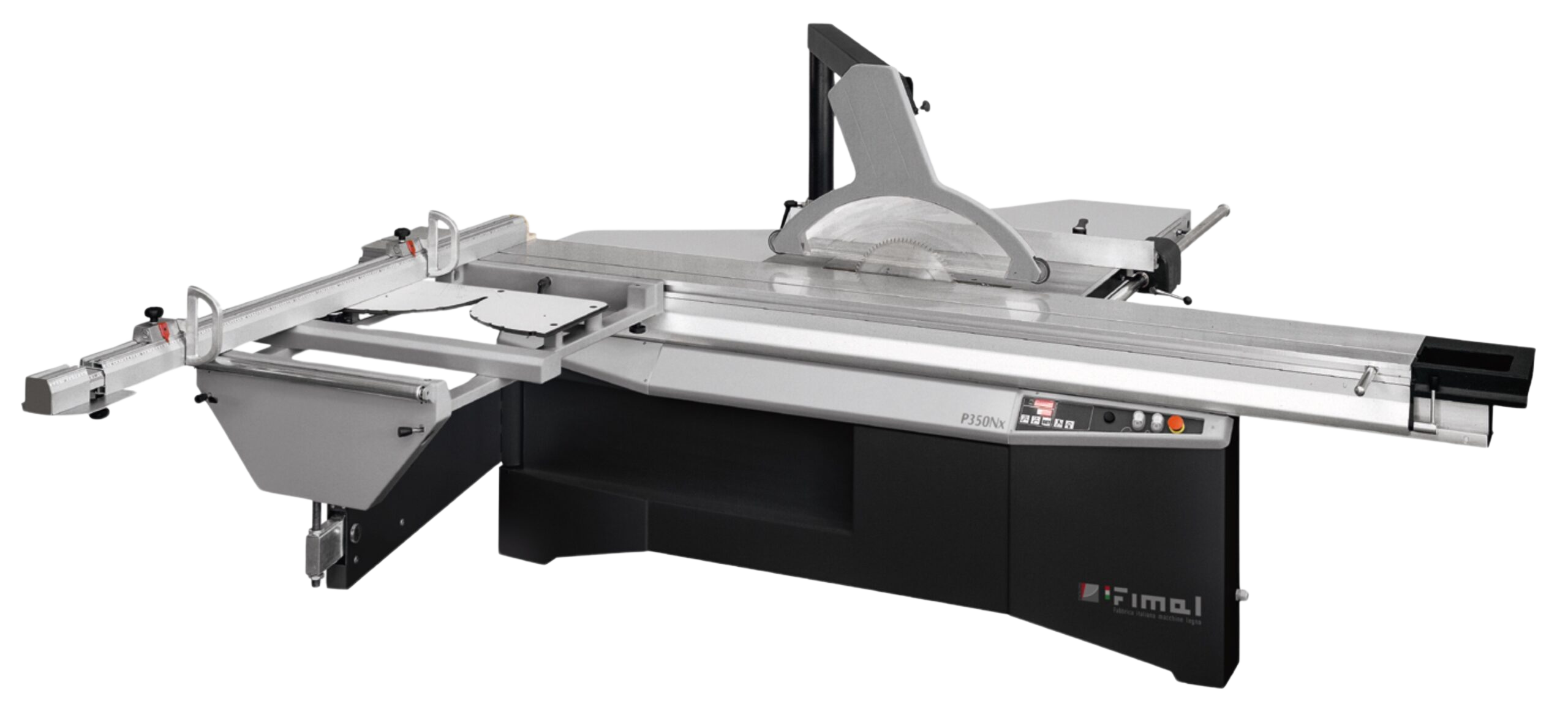

Description
- Worktable dimensions 1000×650 mm
- Carrige dimensions 3200×350 mm
- Max squaring capacity with scoring unit 3350 mm
- Cutting width on parallel fence 1300 mm
- Tilting blade range 0° – 45 °
- Max cutting height with blade d.350 mm 118 mm
- Max cutting height w.blade at 45 ° ( d.350mm) 81 mm
- Max saw blade diameter/hole 350 / 30 mm
- Saw rotation speeds 3000/4600 3000/4600 rpm/min
- Dust extraction outlet on machine 100 mm
- Main motor power 4.0 kW 50 hz
- Scoring motor power 0.55 kW
- Noise level acc. En27960 standards 81.2- 83.9 db (A)

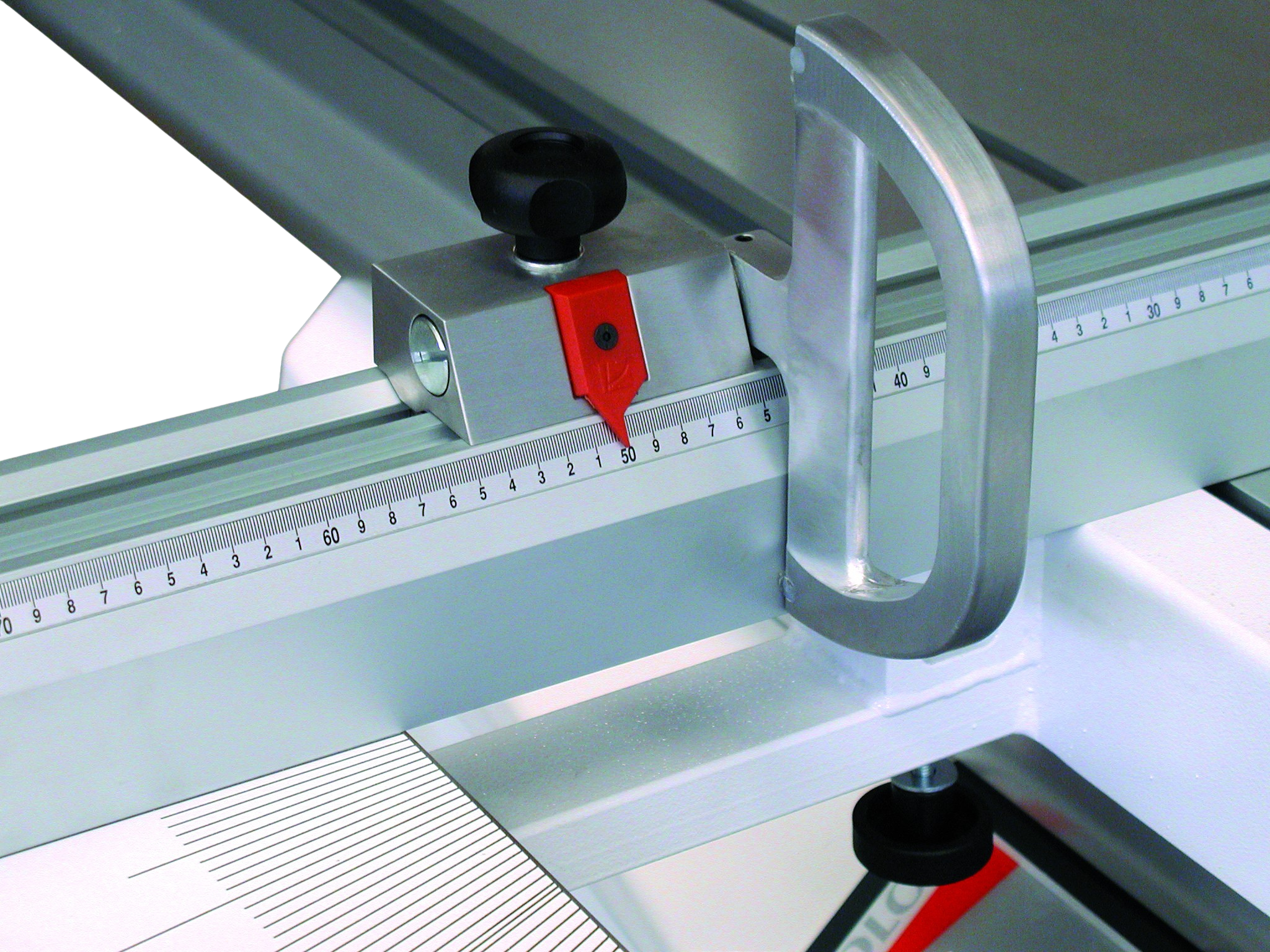

- Max squaring opening with stops 3600 mm
- Weight 800kg
Standard equipement:
Carriage in anodized aluminium alloy sliding on high precision adjustable guides in hardened and ground steel
- Fixed blade saw guard
- eccentric workpiece clamp
- Carriage push handle
- Control of lifting/lowering/angles electrically controlled from the machine’s corps
- Carriage locking in any position

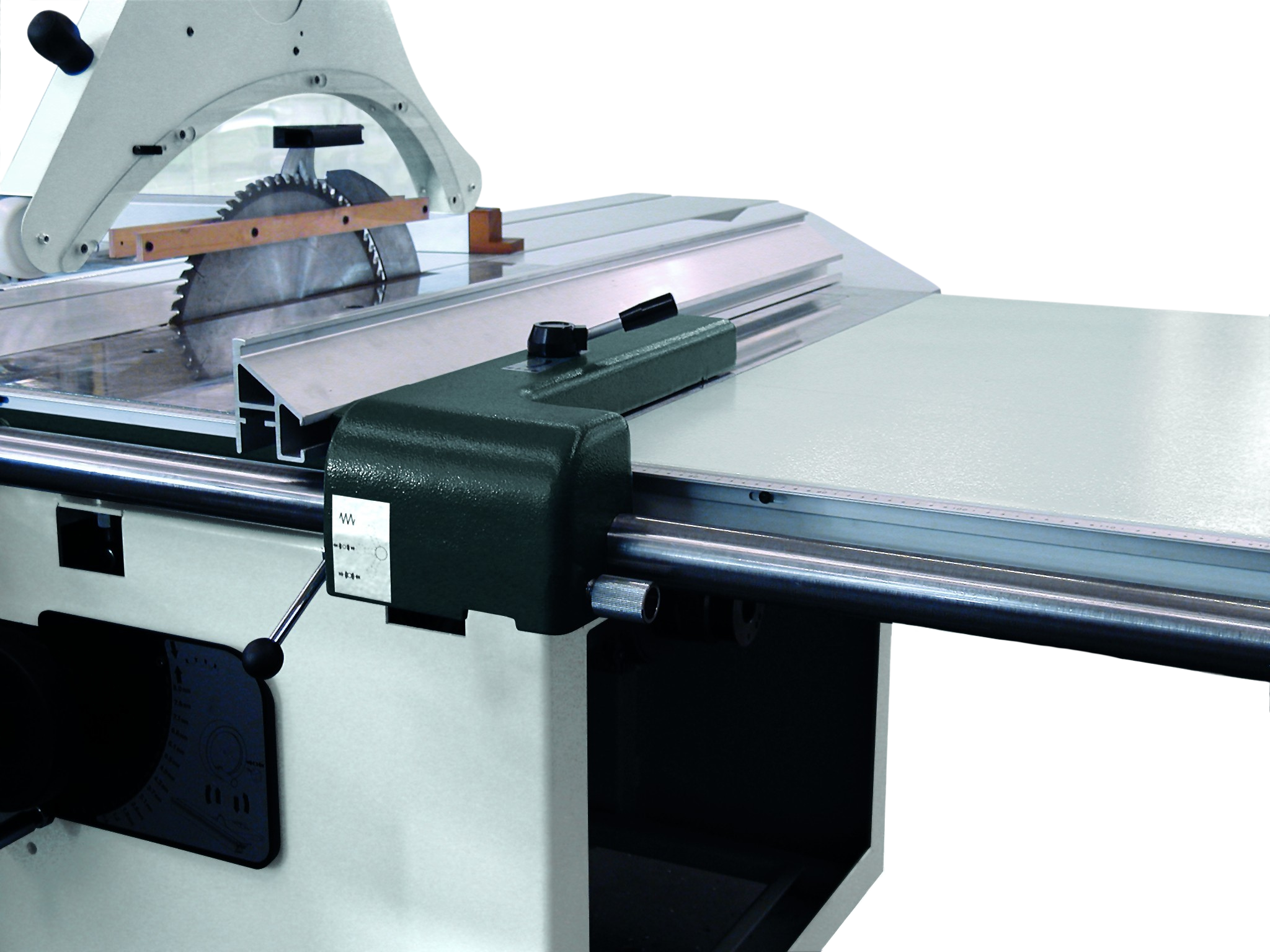

- Parallel fence with manual setting
