Description

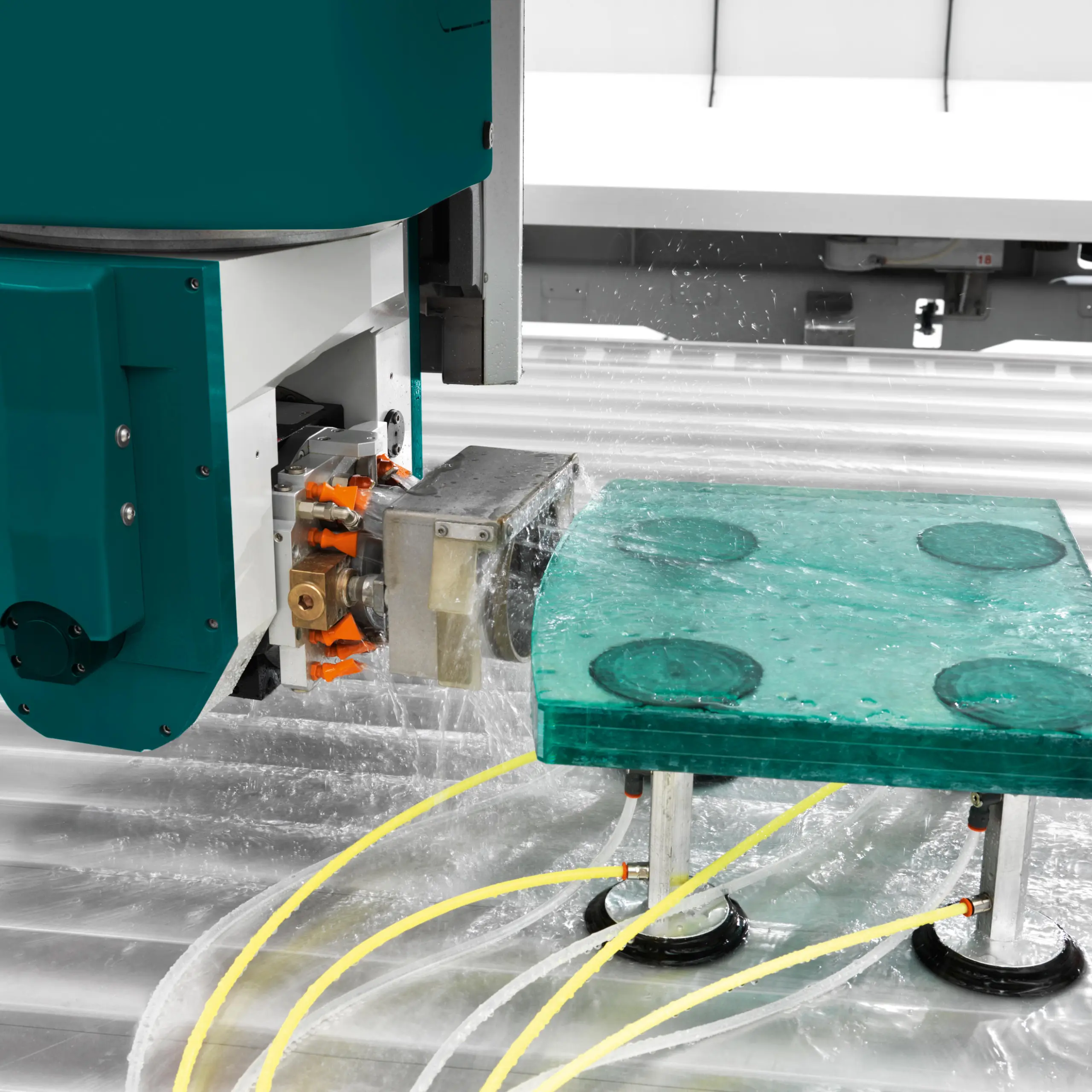

High-level technology for the best results with maximum ease of use. The 5-axis head with endless rotation C axis and tilting A axis (from -90° to +90°) ensures excellent flexibility and pushes the limit for the execution of complex machining operations.
Biesse glass machines have always been at the forefront, offering innovative and highly praised solutions for all types of glass processing.
| Technical Specifications | |||
| Sizes | 33 | 38 | 45 |
| Working area (mm) | 3300 x 1550 (*) | 3800 x 2000 (*) | 4500 x 2500 (*) |
| Max glass thickness (mm) | 100 | 100 | 100 |
| Operator unit | 15 kw spindle by HSD iso 40 | 15 kw spindle by HSD iso 40 | 15 kw spindle by HSD iso 40 |

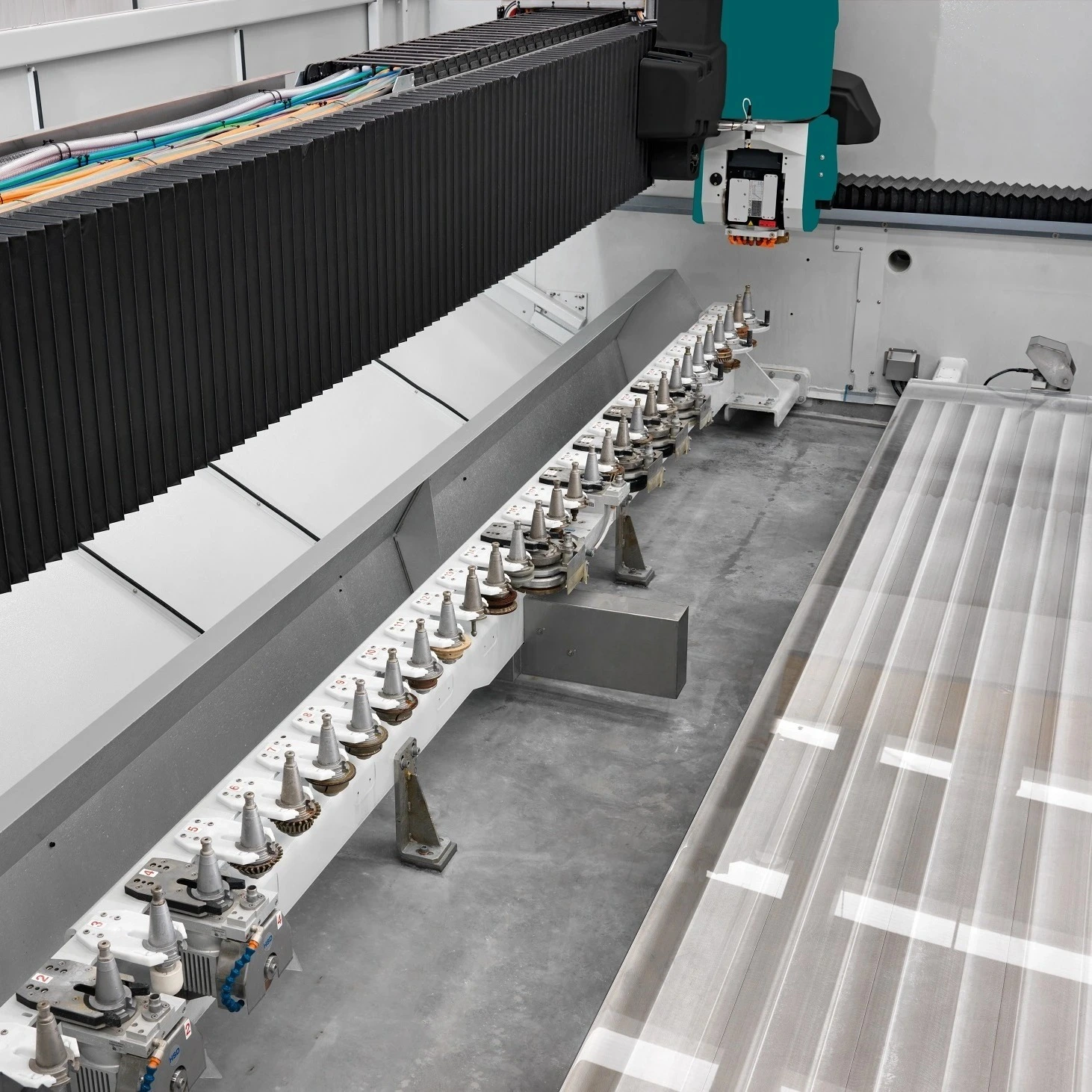

| Maximum tools number on racks | 31 (opt ) | 35 (opt ) | 39 (opt ) |
| Axes | 5 | ||
| (*) Maximum working area with peripheral wheel of 100 mm of diameter | |||
