Description
| Technical Specifications | |
| Sizes | 22 |
| Max working dimension (mm) | 3500 x 2200 |
| Max passable glass height (mm) | 2400 |
| Front operator unit | 6kw |
| Back operator unit | 6kw |
| Max glass thickness (mm) | 25 |
| Shuttles | 3 |
| Tool racks | 20 |
Options included
PL2510956

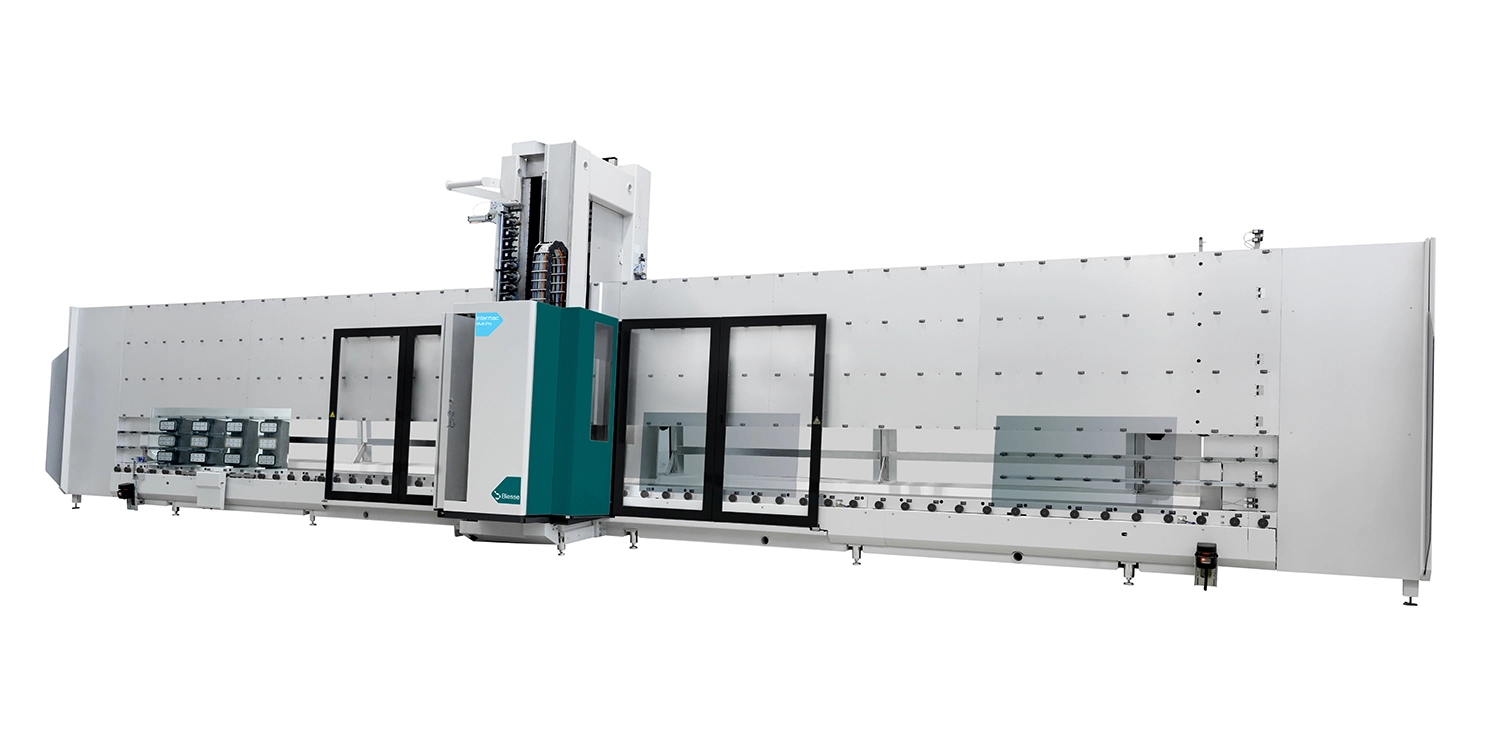

Intermac Multi Pro M V0X V Glass Regular
PCC4004252
Left-hand upload and right-hand download modul
PCC4050027
Flow switches to detect the presence of internal and external water
PCC4048002

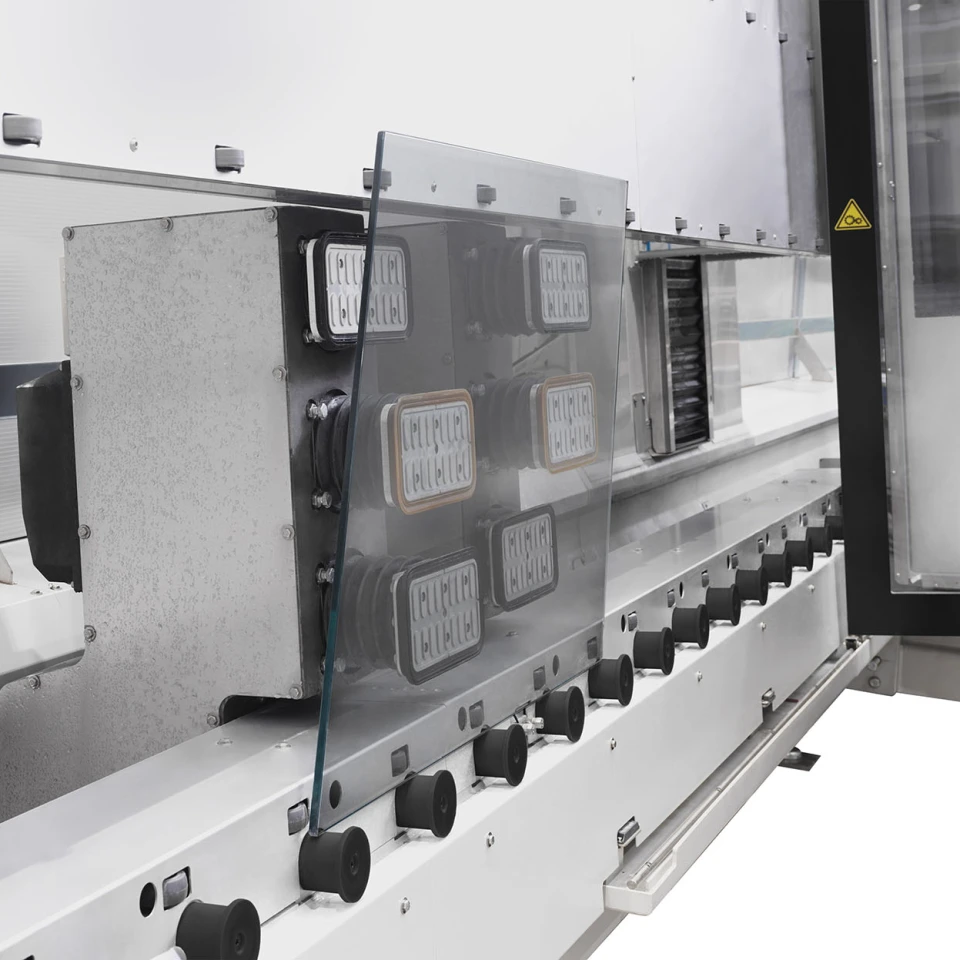

Addition of third suction cup carriage equipped with 3 suction cups, with automatic activation/deactivation and with intelligent and automatic vacuum presence system (COMPULSORY TO SELECT CODE PCC4004357) Maximum workable thickness 25 mm
PCC4050519
PILOT SYSTEM

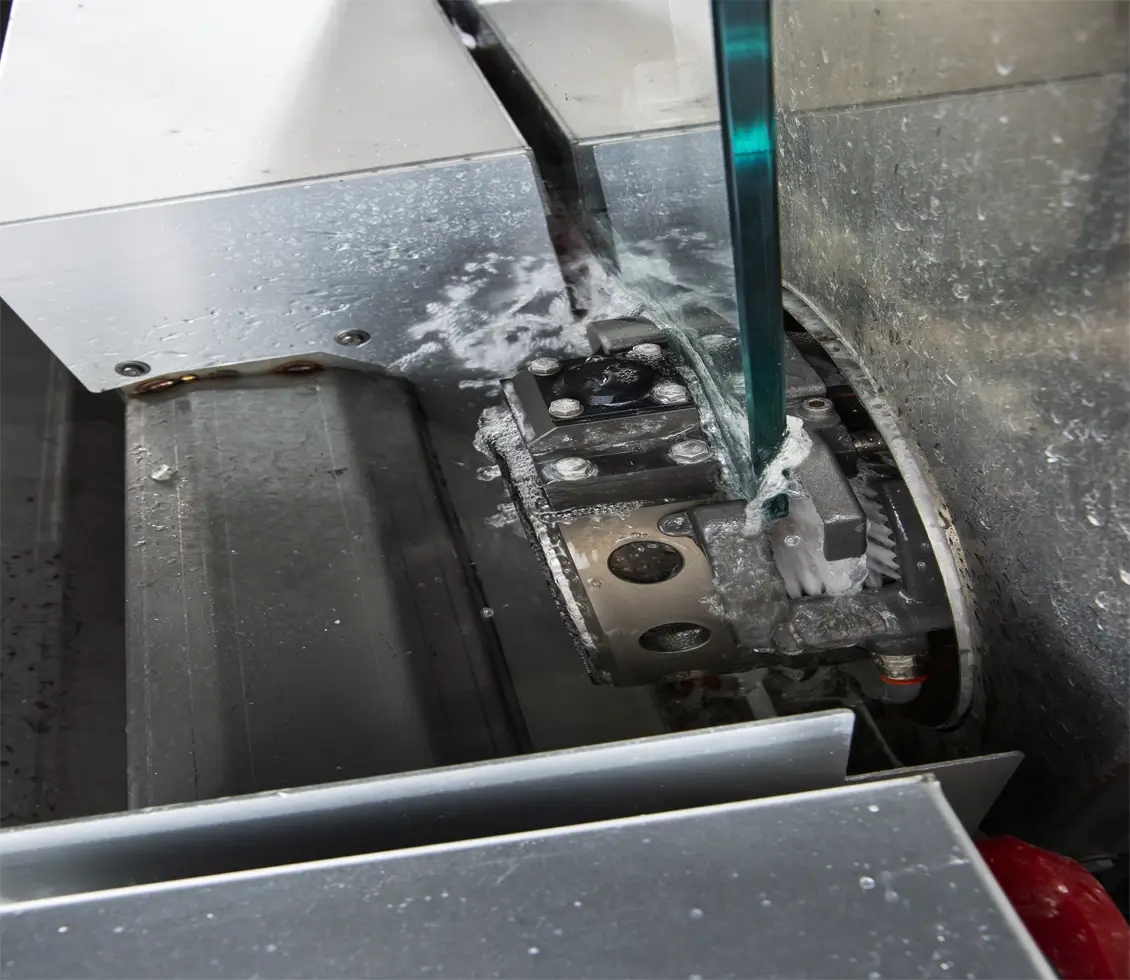

Straight and shaped grinding and polishing function by means of peripheral machining using Pilot System technology
PCC4060094
Automatic front tool magazine with 15 positions. Replaces the 10-position magazine included in the standard equipment.
PCC4036075
Dressing device for polishing wheels and relevant management software, for front head
PCC4004357
Infeed module roller motorization system and relative division of the roller motorization (COMPULSORY WITH CODE PCC4048002 AND/OR WITH CODE PCC4050520)
PCC4041672
6 pcs. – ISO 40 cone for drill bits or routers
PCC4041673
6 pcs. – ISO 40 cone for grinding/polishing tools, shaft 22×34 mm
PCC4041674
6 pcs – ISO 40 cone for stacked wheels, shaft 22×50 mm (maximum tool package height 40 mm)
