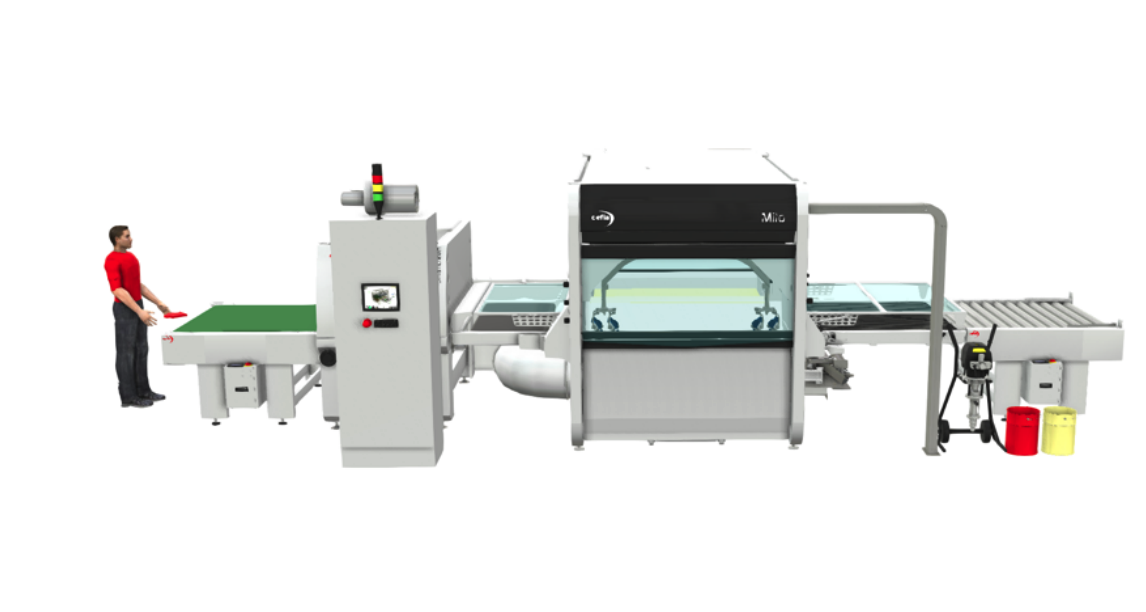

MINI PAINT LINE CEFLA MITO 2B
MINI PAINT LINE CEFLA MITO 2B - Image 2

MINI PAINT LINE CEFLA MITO 2B

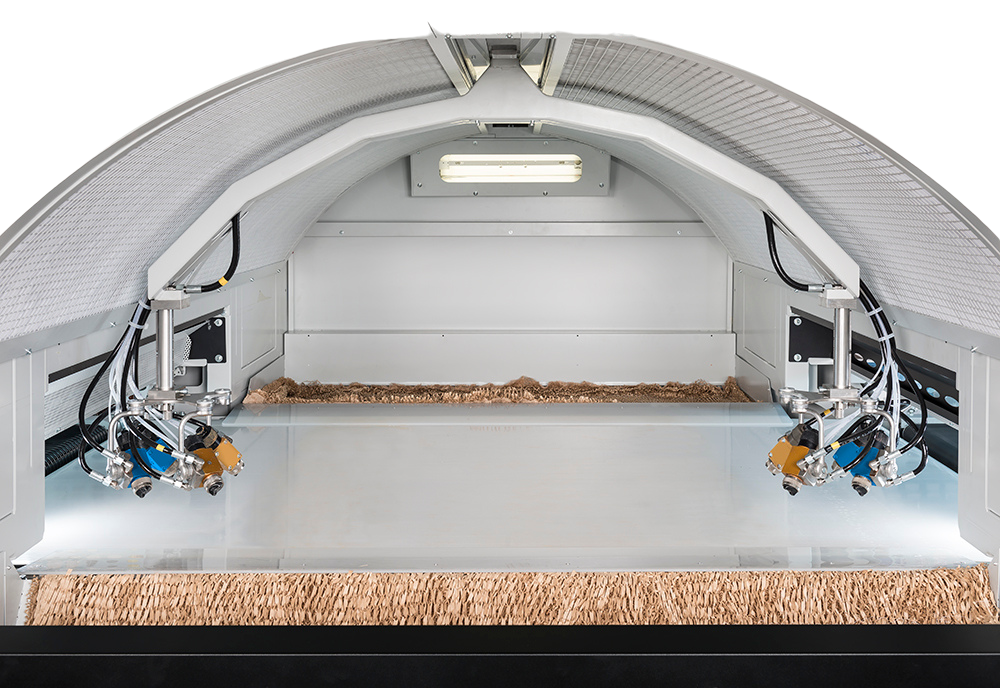

Spraying machine MITO 2B with two arms, dry air filtration and paper covered conveyor belt. The workpieces are placed on a paper-covered belt which is unrolled each time it is loaded in order to always ensure a perfect surface cleanliness. Adhesion of the paper is achieved by a vacuum system. Stretching of the paper is carried out by means of an electronic alignment system. The central axis holds one arm with a quick-change spray gun holder (preparation for max. 4 guns), manual height adjustment. 2 circuits with recirculation and paint filters. Equipment in stainless steel.

Categories: ,

Description

  • Max. working width: 1300 mm
  • Max. working thickness: 60 mm
  • Min. element length: 300 mm
  • Working speed: 2-4 m/min
  • Touchscreen control panel
Additional Equipment:
  • Loading Conveyor (1.5 m)
  • Smart clean 33F Cleaning Machine
  • Unloading Conveyor (1.5 m)

The MITO 2B Spray Automat is designed for spraying both water-based and solvent-based paints on flat and profiled panels. The air supply system, known as the patented PLENUM, offers several key benefits:

  • Paint savings
  • Improved application quality
  • Better cleanliness in the automat
