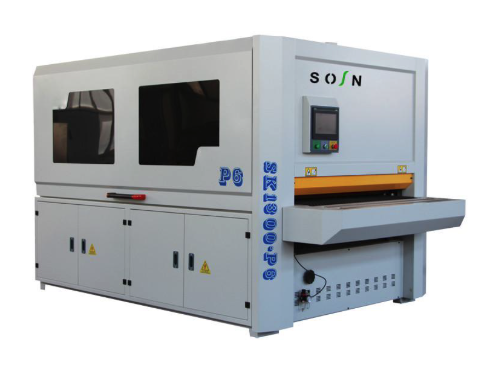

BRUSHING MACHINE SOSN SK1300-P6

Description

STANDARD EQUIPMENT

Circular brushing unit:

• 11 fladder pads with two rows of sisal brushes before each abrasive strip

• Grit: 240

• Perfect for pre-sanding and edge breaking

2 x Cross brushing units:

• 5 shorter fladder shafts with two rows of sisal brushes before each abrasive strip

• Grit: 320

• Designed for sanding flat surfaces and profiled elements

2 x Longitudinal brushing units:

• Fladder shaft with two rows of sisal brushes before each abrasive strip

• Grit: 400

• For precise, finishing sanding of vertical details

Electrical components:

• High-quality components from renowned manufacturers ensuring reliable operation

Control panel:

• Intuitive interface with digital display

• Precise adjustment of all working units and speed settings

---

TECHNICAL DATA

• Working width: 1300 mm

• Minimum workpiece length: 500 mm

• Workpiece thickness range: 2–150 mm

• Shaft diameter: 300 mm

• Shaft speed: Adjustable

• Feed speed: 2.5–12.5 m/min

• Total installed power: 15.47 kW

• Overall dimensions (L × W × H): 3800 × 2100 × 2100 mm

• Net weight: 4600 kg

Motor power:

• Circular brushing unit: 1.5 kW × 1

• Cross brushing units: 1.5 kW × 2

• Longitudinal brushing units: 3.0 kW × 2

• Lifting motors for units: 0.37 kW × 4

• Table lifting motor: 0.55 kW

• Oscillating motion motors: 0.37 kW × 2

• Feed motor: 2.2 kW
