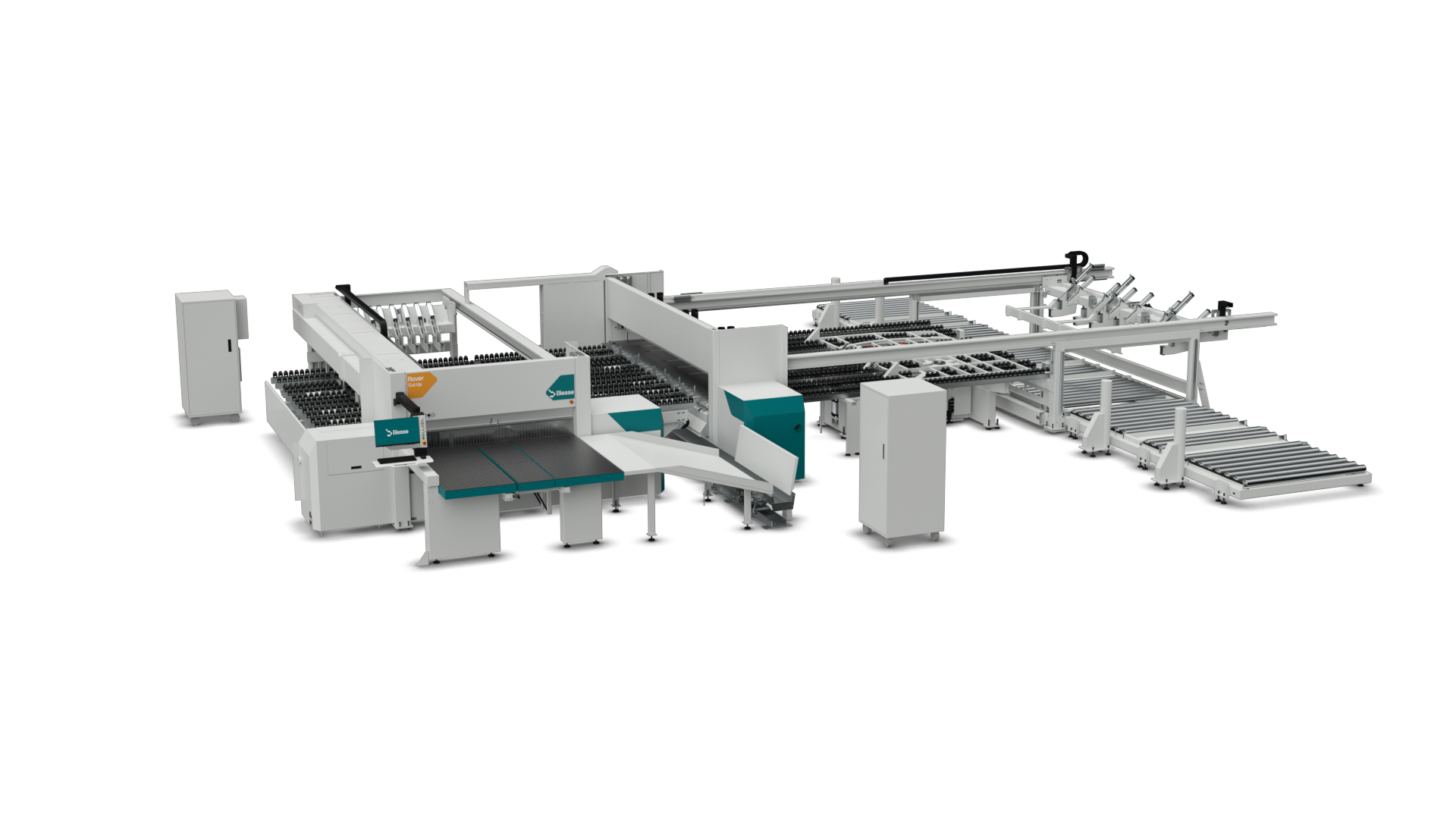

Description
- Max cutting length: 3200 / 4500 mm,
- Max transverse cutting length: 2200 mm,
- Max saw blade extension: 123 mm,
- Max gripper opening: 115 mm,
- Max stack height: 630 mm,
- Min loading thickness on the raised table: 10 mm,
- Max panel size on the raised table: 3200 / 4250 x 2200 mm,
- Min panel size on the raised table without rotation: 2440 x 1220 mm,
- Max panel size on the raised table with rotation: 4250 x 2200 mm,
- Min panel size on the raised table with rotation: 2440 x 1830 mm,
- Working table height: 985 mm,
- Lift capacity of the raised table: 5 t,
- Main saw motor power: 18.5 (25 HP) kW / 50 Hz,
- Scoring saw motor power: 2.2 (3 HP) kW / 50 Hz,
- Lateral cross-aligner stroke: 0 ÷ 2200 mm,
- Saw carriage speed (Brushless motor): 1 ÷ 160 mm,
- Longitudinal pusher speed (Brushless motor): 90 m/min,
- Transverse pusher speed (Brushless motor): 135 m/min.
*Technical parameters may differ between the machine versions. All of the above to be confirmed by an authorised staff.
