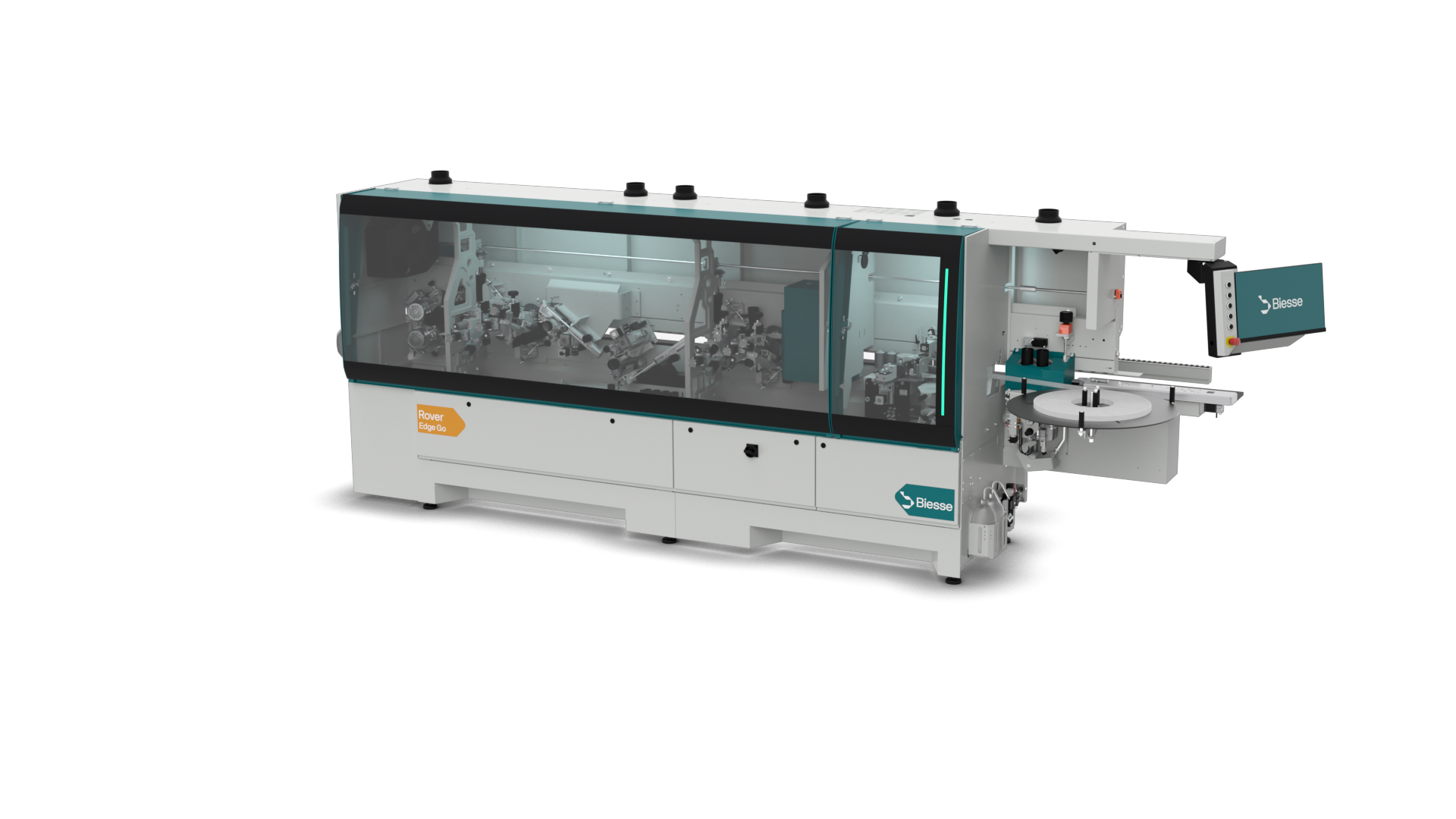

EDGE BANDING MACHINE BIESSE ROVER EDGE GO S P A13 30A (BIESSE AKRON 1330 A FULL NC)

Description

• Description:

1. Panel height: 10-60 mm,
2. Height of edge-banding material: 14-64 mm,
3. Thickness of edge-banding material in rolls: 0,4-3 mm,
4. Thickness of edge-banding in strips: 0,4-5 mm,
5. Panel length: 150-3200 mm,
6. Track feed speed: 12 m/min.

• Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
• Gluing Unit SP03,
• End trimming Unit IT03 Complete with 1 high frequency motor (0.8 kW) at 12000 RPM,
• Fine trimming Unit RF02 Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
• Corner rounding Unit AR02 Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
• Edge scraper Unit RB02,
• Glue scraper Unit RC02,
• Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM,
• NC axis package – group of devices that enable the automation of machine set-up for ROVER EDGE GO S P A13 30A,
• Antiadhesive unit ADZ02,
• Airforce system – P1,
• Hybrid gluing chuck for granulated EVA/PUR glue instead of the standard system,
• Nitrogen tank for PUR glue pot,
• Adaptive infrated lamp – AdIRL-700,
• Device for the application od sliding liquid before corner rounding unit,
• Kit for delicate panels for glue scraper unit,
• Cleaning unit LPT02.
