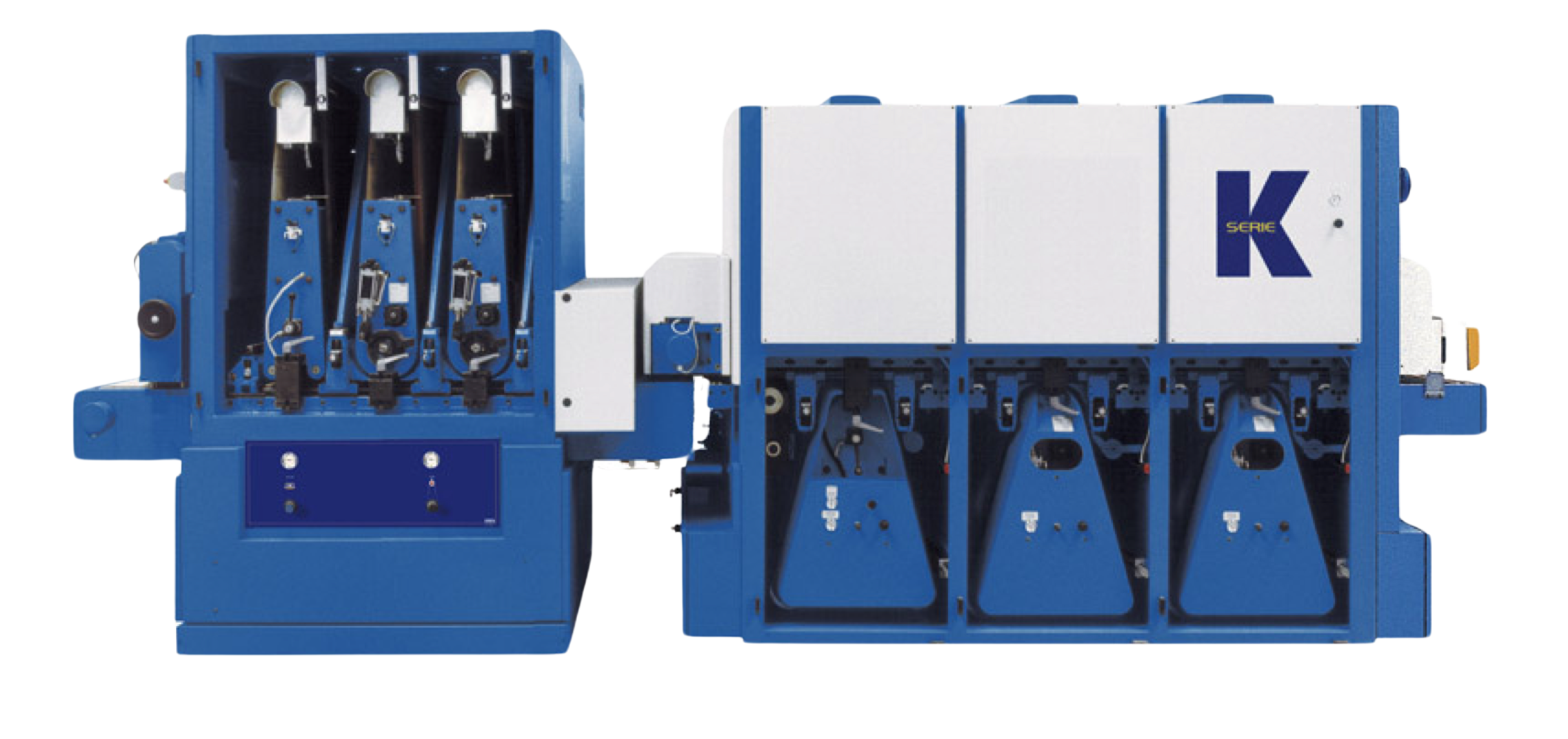

Description
Working area:
- Working width: 1350 mm
- Abrasive belt length for maximum width: Working width + 30 mm
- Fixed working height: 1000 mm
Abrasive belt system:
- Automatic belt oscillation with a photocell system
- Safety sensor stops the machine in case of belt breakage or slippage
- Time-activated air blowers for photocell cleaning (1 per unit)
- Grinding belt tracking control exclusively via self-cleaning, contactless optical sensors
Safety features:
- Rubber roller at the machine entrance linked to a safety sensor
- If the workpiece thickness exceeds the set value, the safety system activates
Bottom machine:
- Abrasive belt length: 2620 mm
- Workpiece thickness range: 3 – 160 mm
- Table height adjustment via geared motor: 0.55 kW
Top machine:
- Abrasive belt length: 2620 mm
- Workpiece thickness range: 3 – 160 mm
- Frame height adjustment with working units via geared motor: 0.55 kW
