Description
- Machine Dimensions:
- Length: 3944 mm
- Width: 2890 mm
- Height: 3887 mm

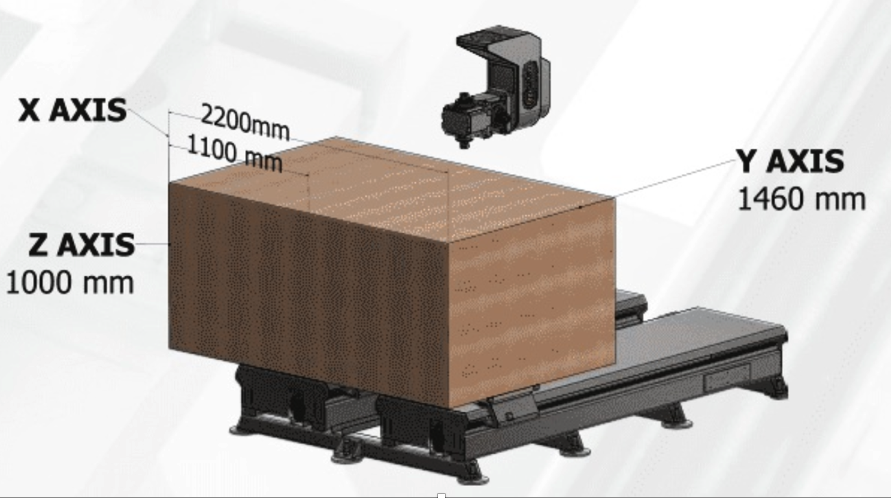

- Working dimensions:
- X: 2200 mm (1100 – pendulum work)
- Y: 1460 mm
- Z: 1000 mm
- Control unit TPA
- Axi motor Y1/Y2: 1.5 kW – rack and pinion
- Axi motor X: 1.5 kW – rack and pinion
- Axi motor Z: 1.5 kW – rack and pinion
- Reducer: liming FE series

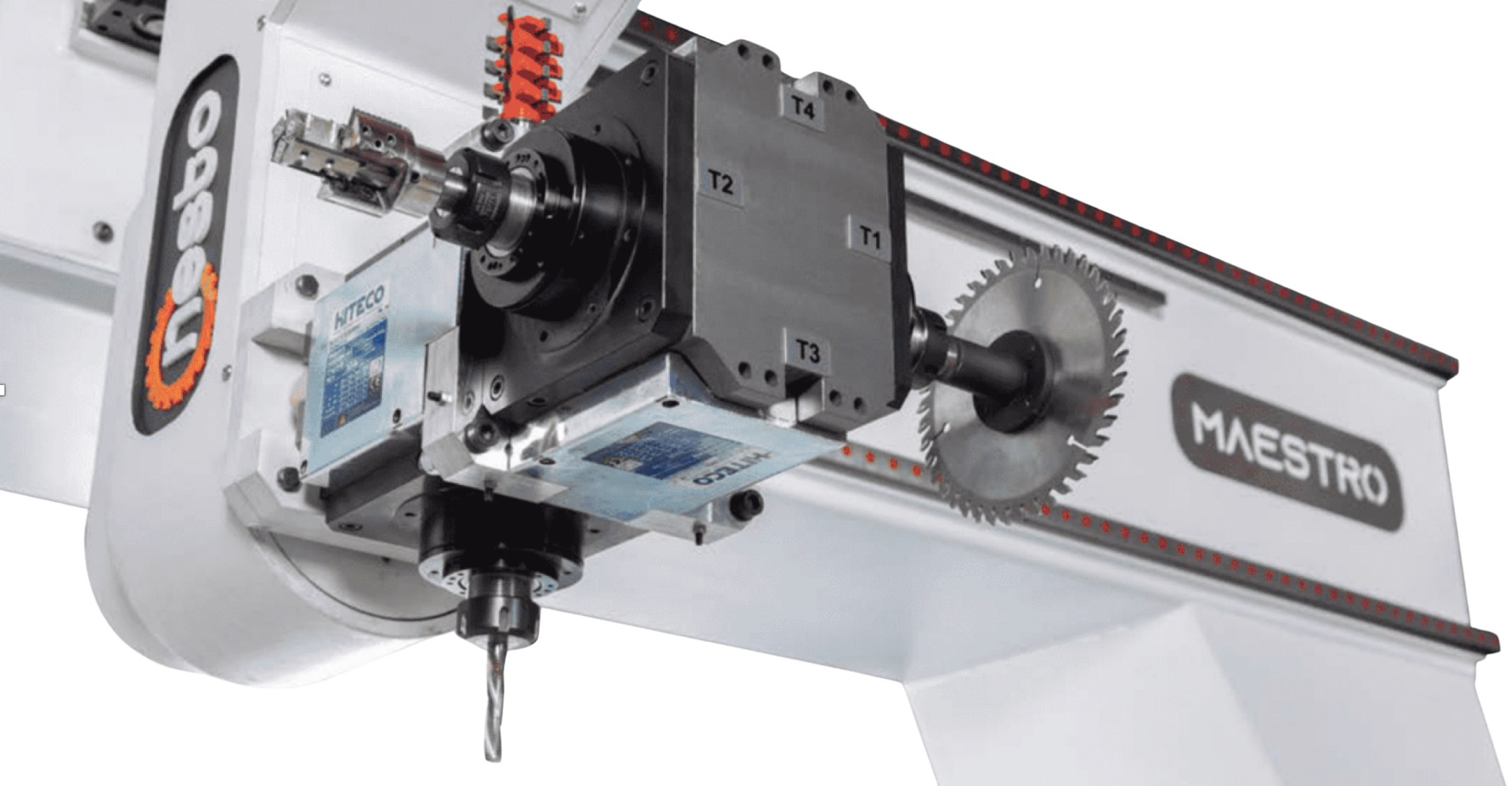

- Spindle motor: ML-1C 7.5/12 24 ER32 CROSS 2+2 ends
- Vacuum system: VPS Vacuum 250 m³
- Lubrication system: ILC Self-lubricating system
- Power: 31 kW
- CAD-CAM Software: Pegasus CAD CAM for woodworking Ultimate (Licensed)
- Optimizer: Pegasus SMC (Smart Machine Control) Wood Optimizer (Licensed)
- Guides: Schneeberger (Germany)
