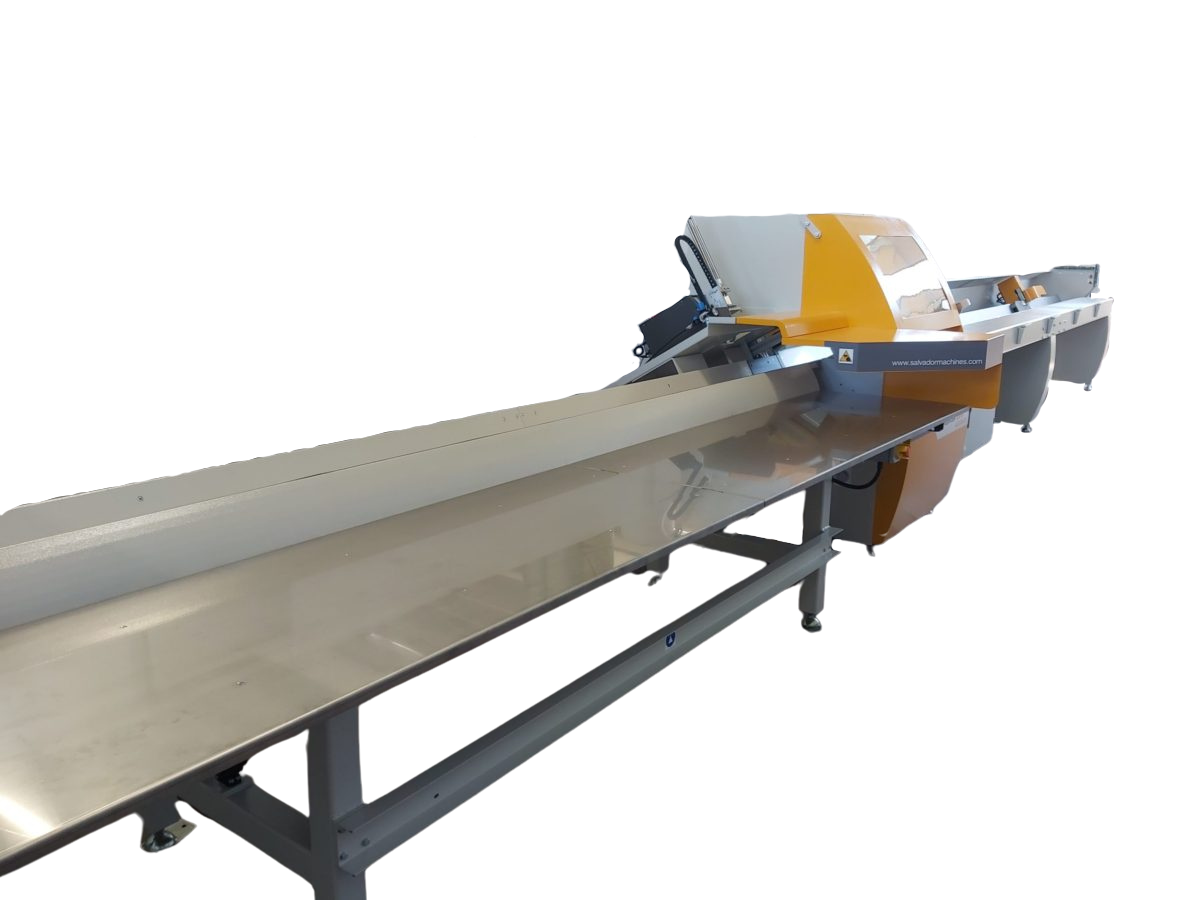

OPTIMISING SAW WITH PUSHER FOR PACKET CUT SALVADOR SUPERPUSH 200

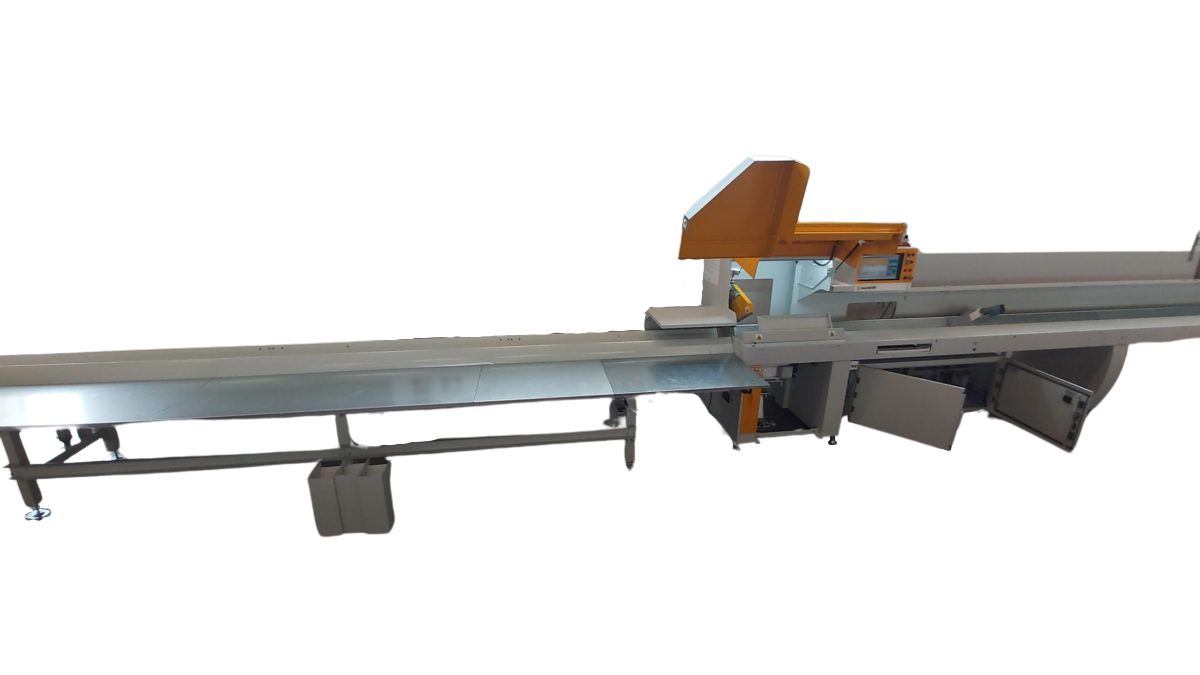

OPTIMISING SAW WITH PUSHER FOR PACKET CUT SALVADOR SUPERPUSH 200 - Image 2

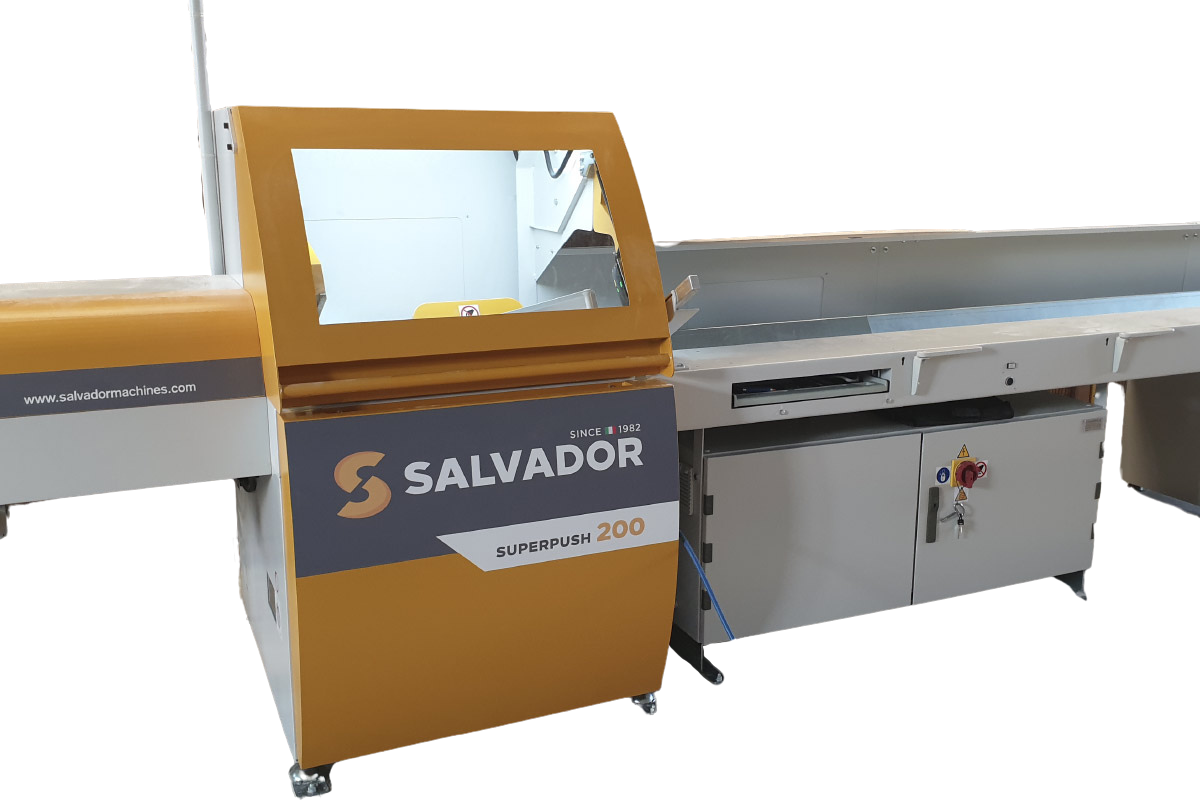

OPTIMISING SAW WITH PUSHER FOR PACKET CUT SALVADOR SUPERPUSH 200 - Image 3

OPTIMISING SAW WITH PUSHER FOR PACKET CUT SALVADOR SUPERPUSH 200

Superpush 200 is the direct technological evolution of traditional cutting methods, a machine capable of boosting productivity, minimising use of labour and increasing the yield of wood. It is the result of over thirty years of innovation, continuous technological research and experience in direct contact with the end customer.

Categories: , ,

Description

SuperPush 200 it is an ideal automatic cutting centre: simple, cost-effective, precise and highly performing.
It is simple and flexible, with no adjustments and special operating movements needed. All you need to do is put the wood onto the feeder tabletop – and SuperPush 200 will take care of the rest.

  • Pusher speed up to 60 mt/min
  • Load length to 4.100 mm
  • Pusher positioning accuracy: +/- 0,5 mm
  • Blade motor power: 7,5 kW
  • Blade diameter: 550 mm
  • Minimum installed power: 9 kW
  • Crosscutting section:  240 x 150 mm / 300 x 110 mm
  • Adjustable cutting time 0.2 – 2 sec
  • Compressed air consumption: 200 nl/min 6 atm
  • Dust extraction: Ø 120, speed 30 mt/s, 1200 m3/h; Ø 100, speed 30 mt/s, 800 m3/h
  • Width of pusher 250 mm
  • Special out feed tilting table for packets
  • Waste trap – for wastes and trim cuts
