Description
An exclusive feeding system with toothed and coated belts creates maximum adherence with the material being processed. The steel cables in the belt guarantee work process uniformity, durability and precision.

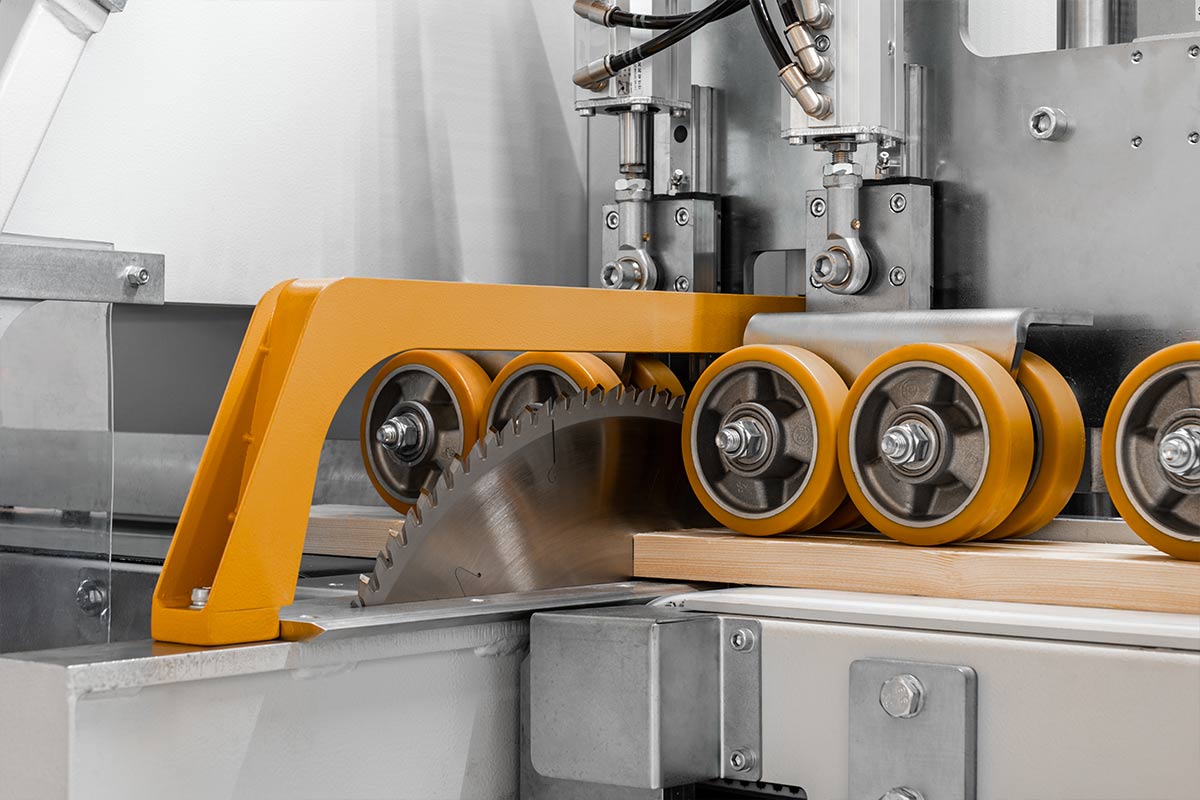

The wood pressure system consists of a number of large diameter wheels, with pressure level automatic adjustment. The up and down movement of the pressure rollers, located before and after the blade, is managed directly by electronic and pneumatic components.
- Maximum feed speed: 100 mt/min
- Belt positioning accuracy: +/- 0,5 mm/mt
- Blade diameter: 500 mm (optionaly 550 mm)
- Minumum installed power: 8,5 kW
- Blade motor power: 5,5 kW (optionaly 7,5 kW)
- Crosscutting section: 220 x 70 mm / 300 x 40 mm (optionaly 220 x 100 mm / 250 x 80 mm / 300 x 45 mm)
- Dust extraction Ø 120, speed 30 mt/s, 1200 m3/h; Ø 100, speed 30 mt/s, 800 m3/h
