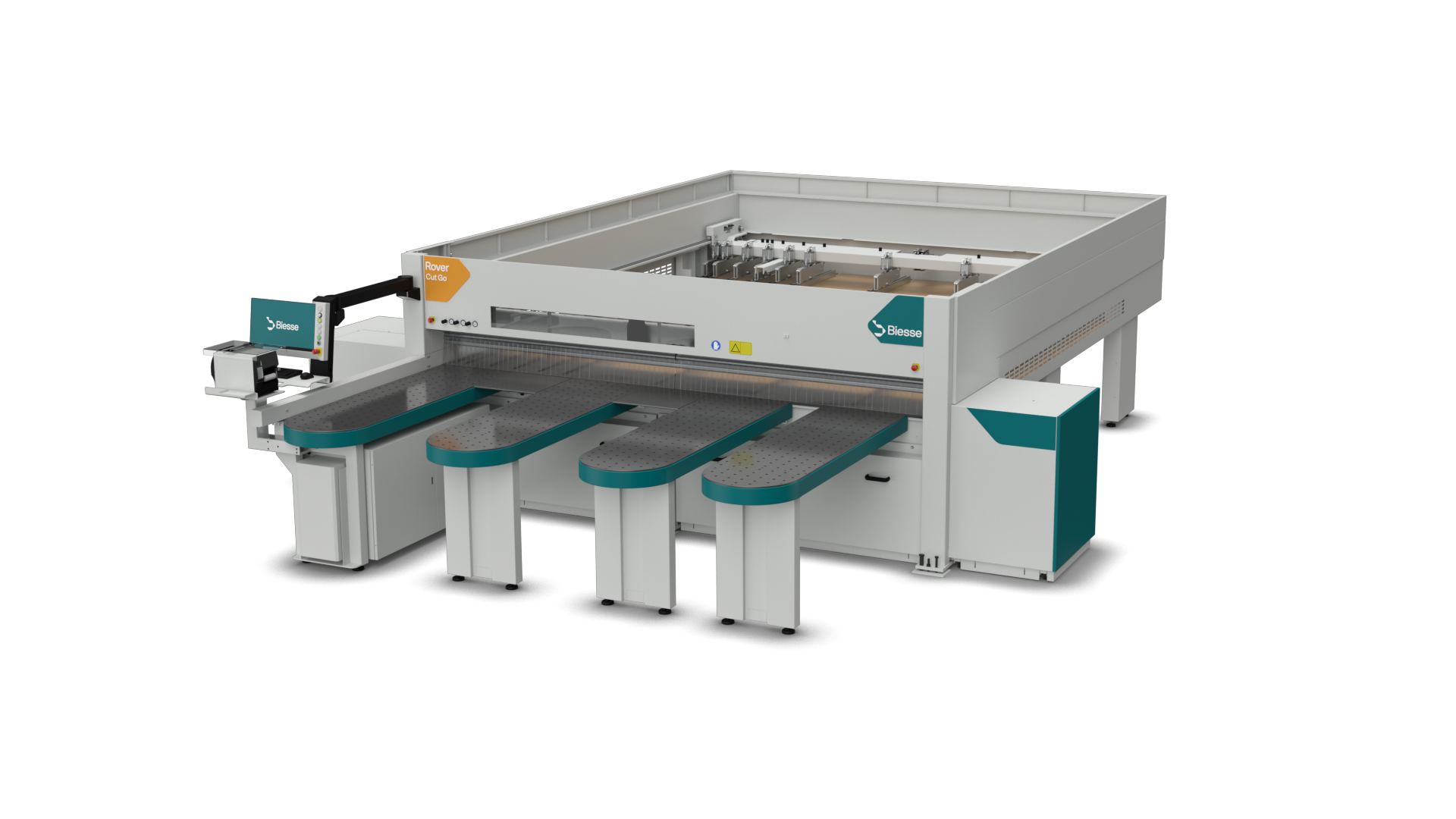

PANEL SAW BIESSE ROVER CUT GO S F 75 (BIESSE SELCO SEKTOR 350 3800 X 3800)

Description

• Maximum length of cut 3800 mm,
• Maximum pusher stroke 3800 mm,
• Maximum saw blade projection 75 mm,
• Maximum gripper opening 65 mm,
• Height of work table 985 mm,
• Main saw motor power 7.5 kW (10 HP),
• Scoring saw motor power 2.2 kW (3 HP),
• N.1 Rounded air table 2050 x 620 mm with square support – left hand side,
• N.7 Pneumatic grippers (at 50 – 150 – 360 – 990 – 1740 – 2490 – 3240 mm),
• N.1 Additional pneumatic gripper in position 570 mm,
• N.1 Additional pneumatic gripper in position 780 mm,
• OSI Plus interface,
• N.2 Rounded air cushion unloading table, size 2050 x 620 mm,
• OS-Labelling: Graphic labelling with parts drawing printed on label at machine side (optimizer required),
• XML LINK – Import from XML file format (upon BIESSE specifications),
• Tests with the file of the customer are required.
