Description

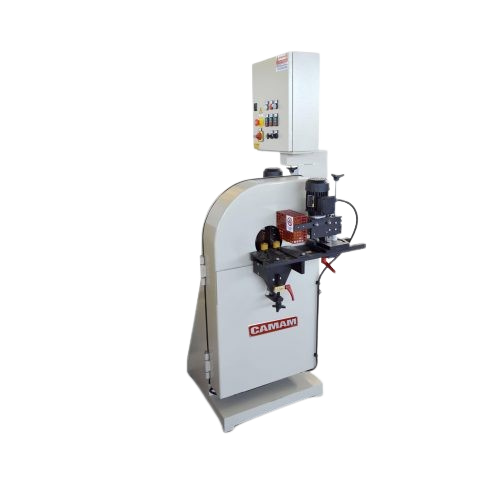

Orbital sanding machine with 2 sanding belts, complete with automatic workpiece feed system.
LEC series sanding machines are used for sanding straight, curved and shaped pieces, with round, oval section, etc. and variable thickness for elements of chairs, tables, cots.
They are also used for chamfering corners on wooden elements with square or flat section.

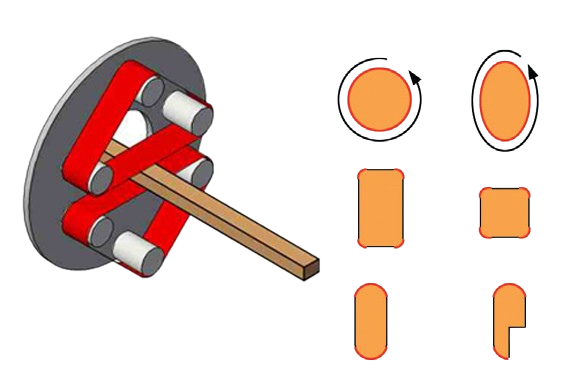

The work is carried out by means of two opposing abrasive belts, which adhere to the surface of the workpiece and perform a revolution movement around it. These machines are generally equipped with automatic feed systems with adjustable speed, for the workpiece advancement.
• Grinding belt electric motor: 4 kW
• Electric motor assembly. feeder: 2 x 0.25 kW
• Min/max working diameter: 10-100 mm
• Min. radius of curvature: 200 mm
• Abrasive belt sizes: 80 x 1260 mm
• Installed power: 4.5 kW
• Size: 760x1000x1800mm
• Weight: 400 kg
