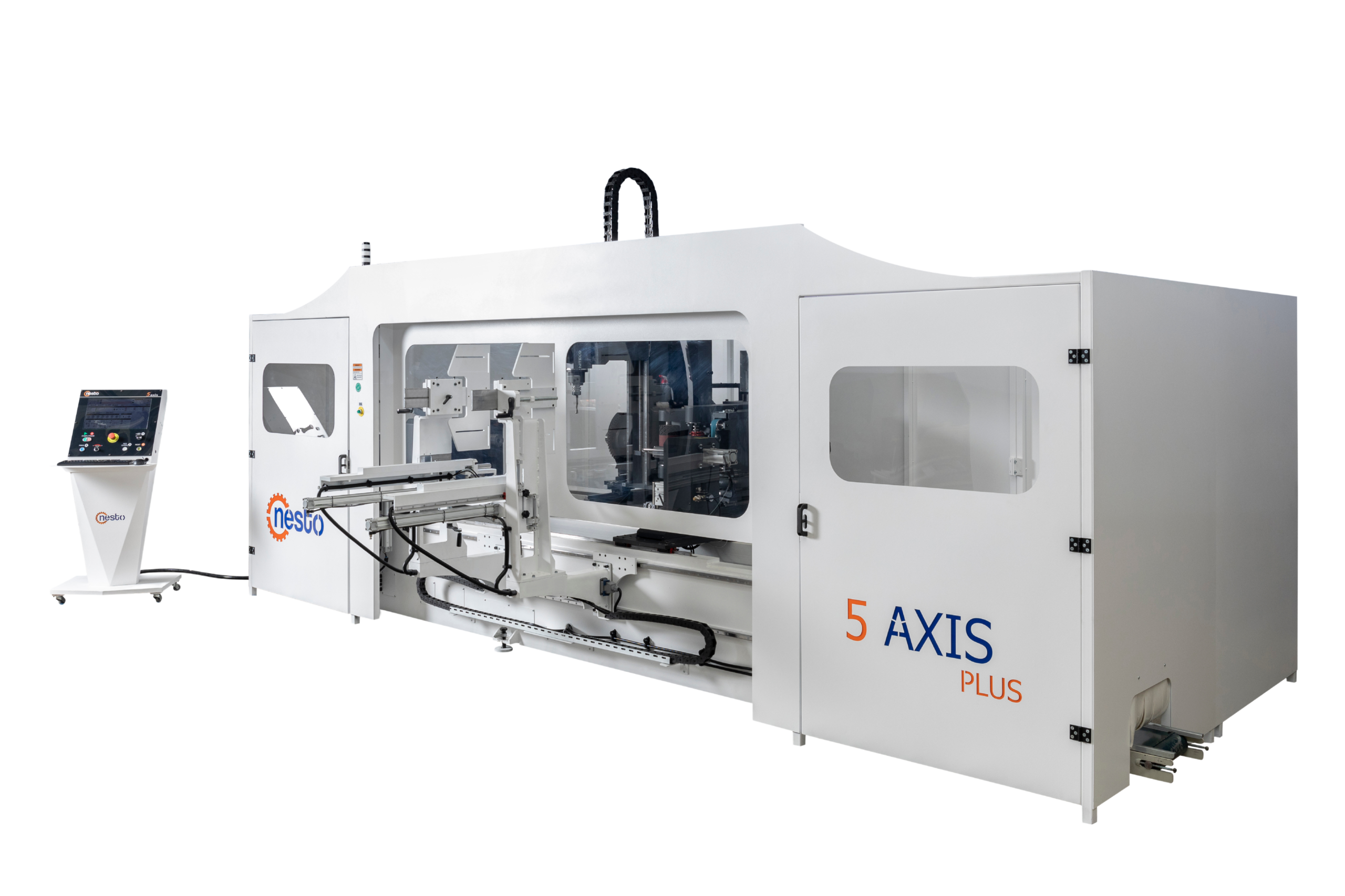

Description
- Workpiece dimensions: Maximum diameter: 400 mm – Maximum length 1200 mm,
- Machine dimensions: Length: 3950 mm, Width: 3720 mm, Height: 3900 mm
- Control unit: TPA control unit (Italian)
- Z-axis movement: 1200 mm
- X-axis movement: 225 mm
- Long axis speed (Z): 70 m/min
- Short axis speed (X): 30 m/min
- Vertical axis speed (Y): 20 m/min
- 5th axis (A): +90/-90 degrees
- Lathe speed: 3000 rpm (direct drive)
- Installed power: 33 kW
- Weight: 4600 kg
- Lubrication unit: Automatic lubrication ILC
- Workpiece clamping: Pneumatic piston (7 bar)
- Workpiece length adjustment: Easy adjustment via remote control (no tools, no screws)
- Cutting blade: Triangular blade made of special steel
- Rounded blades: Rounded blade made of special steel, cutting tool for machining
- Tool magazine: 5-position
- Spindle: HiTECO 8.5 kW, 24,000 rpm
- Drawing program: Italian CAD-CAM program Pegasus 5 Axis Cad&Cam Program
