Description
In order to satisfy the diverse needs of every customer and provide systems designed to measure for their production chains, the installation offered here is a customizable nailing line. In addition to the devices already included in the installation, it is possible to add to its capabilities the following devices:
- Finishing machines including corner cutting, chamfering, branding etc.
- Automatic block feeding systems for wooden blocks
- Automatic board feeding systems

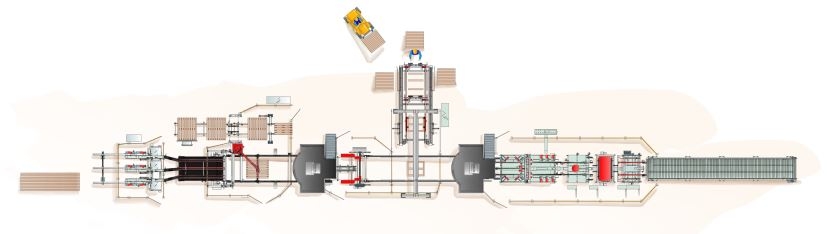

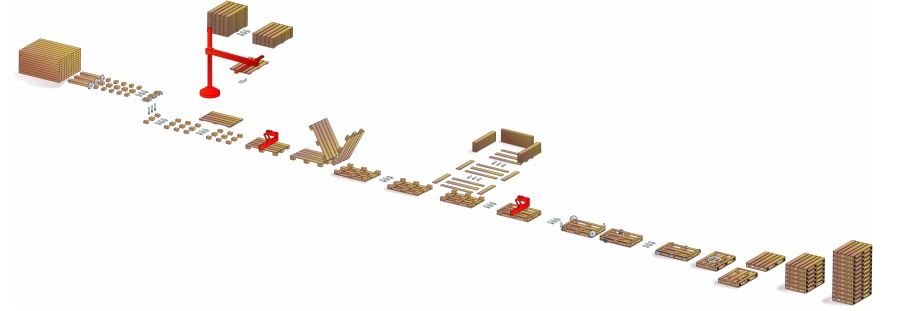

The example line includes:
- Wooden block cutting machine with 3 cutting heads
- Automatic block feeder
- Semi-automatic feeder for tranverse boards
- Semi-automatic feeder for upper boards

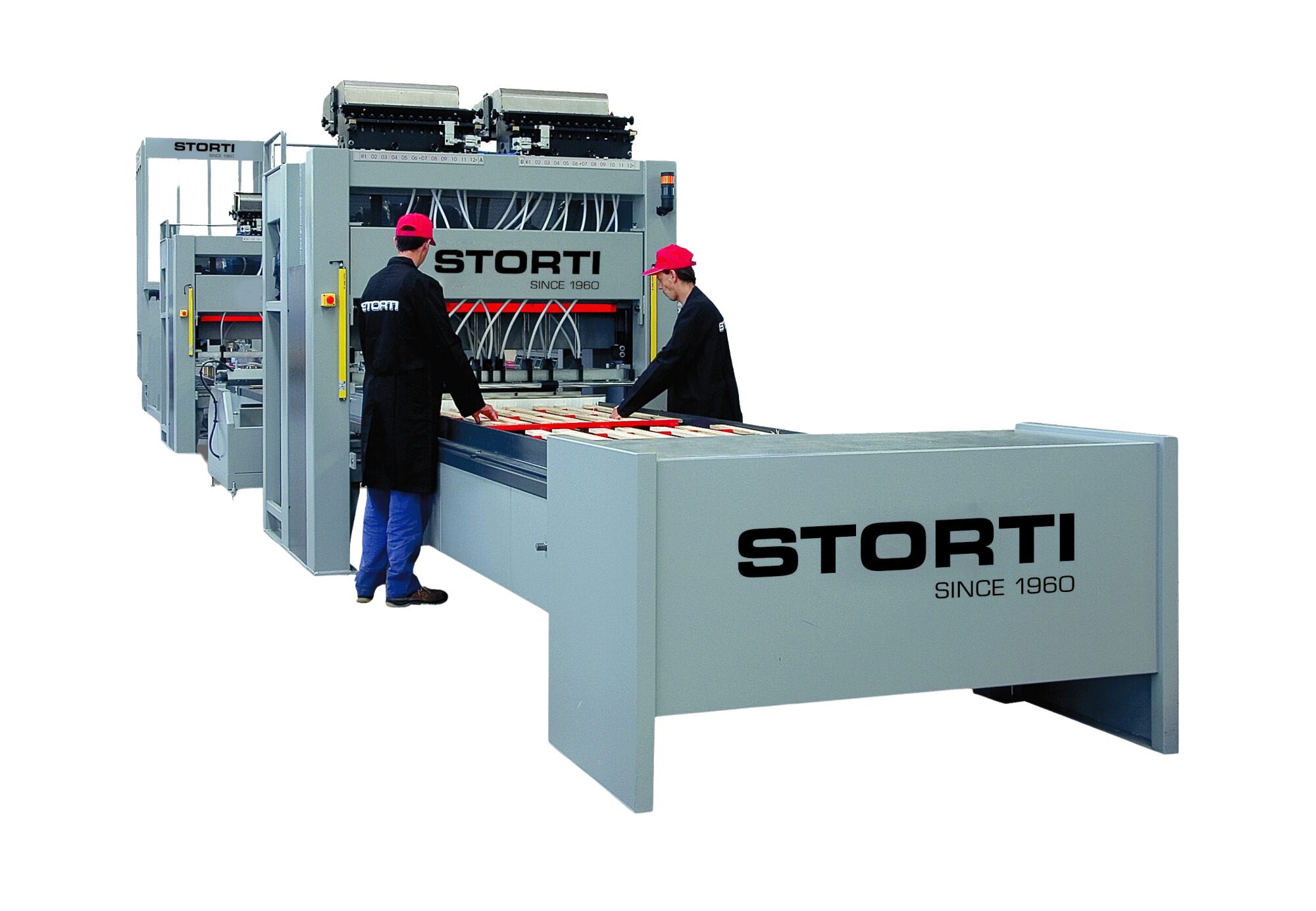

- Hydraulic nailer with chain conveyor model GSI 170 TA 9
- 9 jigs
- pallet dimensions:
- length – min. 700 mm, max. 1500 mm
- width – min. 700 mm, max 1500 mm
- hight – min. 65 mm, max. 180 mm
- nail length – min 30 mm, max 100 mm
- 180 degree turntable with handles
- Semi-automatic feeder for lower boards
- Hydraulic nailer with chain conveyor model GSI 270 TA 9
- 9 headrigs
- pallet dimensions the same like on first nailer
- Nails press rollers
- Corner, edge chamfering and stamping machine
- Pallet turntable 90 + 180 degrees
- Pallet stacking device – interlocking stacking
- Powered chain conveyor for unloading pallet stacks
Pallet dimensions can be tailored to customer needs.
Each project is treated individually. Both the machines in the production line and their processing capabilities are tailored to the client to optimize their work as much as possible.
