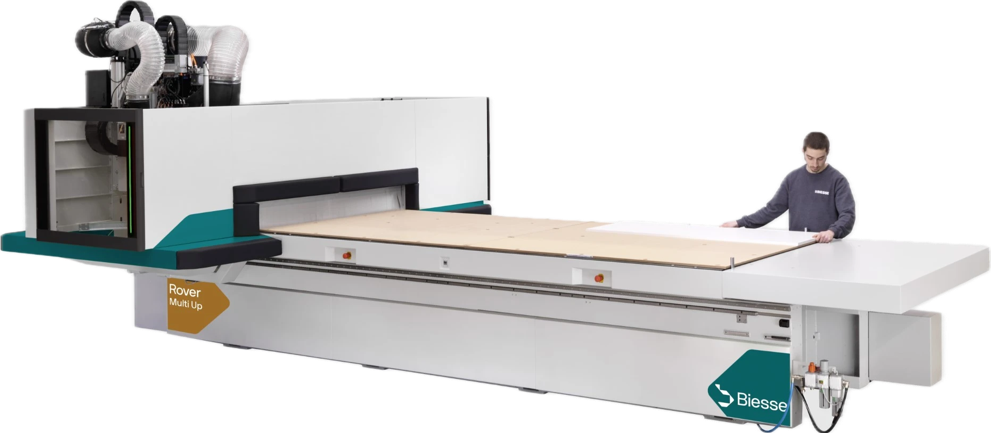

CNC NESTING MACHINE BIESSE ROVER MULTI UP N G 1531 (BIESSE ROVER A FT 1531)

Description

Numerically controlled machining center ROVER MULTI UP N G 1531

• Worktable dimension:

1. X=3100mm,
2. Y=1560mm,

• Opening front door for machine safety coverage in replacement of the fixed panel installed in the basic machine,
• Wired remote keyboard,
• 8-zones Multizone vacuum system,
• Row of 6 additional stops positioned inside the FT worktable at about 470 mm from the front side and 2 additional side stops – stop stroke 140 mm,
• Sensorization of machine stops for the detection of lowered stops,
• 250 m3/h rotary claws vacuum pump,
• 13 kW (17.4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
• Liquid chilling unit for liquid cooled systems,
• Presetter for the measurement of the tool length with diameter up to 130mm,
• Additional Z carriage installed on rear Y carriage, for operating units with BHZ,
• BH13 boring head,
• Revolving toolchanger with 8 places installed on X carriage for 5-axes unit,
• bSolid 3D CAD-CAM program to design, simulate and manage the machining processes of the Biesse machining centers and boring machines,
• bSolid – 3D Engraving Module for engraving on bi-dimensional geometries (2D),
• B_NEST – Software module for nesting process applications,
• bNest – Graphic editor for manual editing of nesting results.
