CNC POD & RAIL MACHINING CENTER BIESSE ROVER MULTI UP M C 1659 (BIESSE ROVER A 1659)

Description

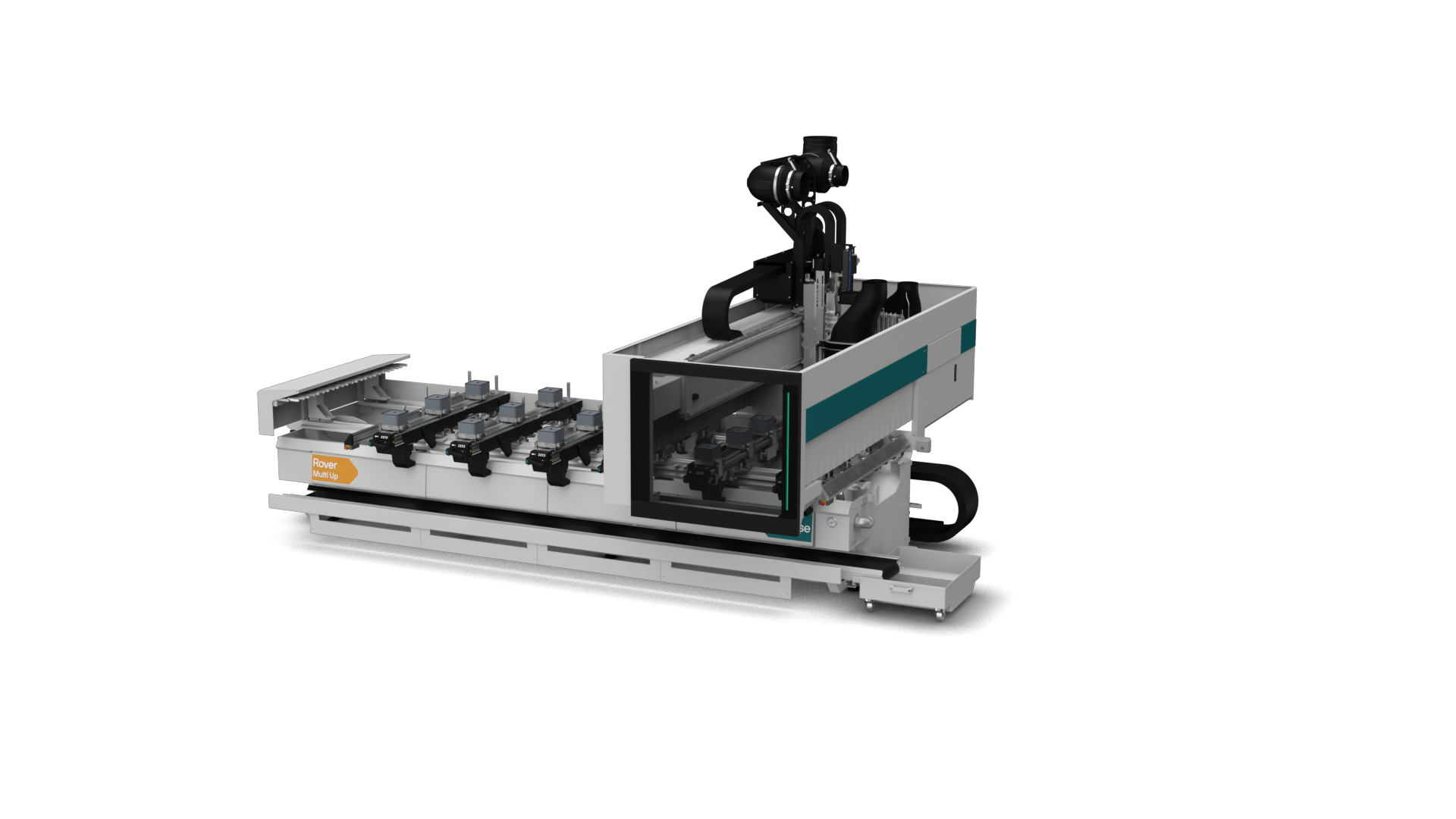

Numerically controlled machining centre ROVER MULTI UP M C 1659

• Working fields:

1. X = 5920 mm;
2. Y = from 1580 to 1660 mm

• Modification of the protection devices for the operating unit to allow the loading of a panel with dimension in Y up to 2100 mm,
• 10 ATS panel supports – 40 sliding bases,
• Division of the vacuum system in 4 independent locking areas in Y,
• Stop of the back line with a stroke of 115 mm and extension of 25 mm,
• Stop of the middle line, positioned at 670 mm, with a stroke of 140 mm,
• Stop of the middle line, positioned at 1080 mm, with a stroke of 140 mm,
• 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh),
• 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
• 4 removable central stops with a stroke of 140 mm (2 Lh + 2 Rh),
• 2 Additional central stops with a stroke of 140 mm (1 Lh + 1 Rh),
• Sensor for the detection of lowered stops,
• Laser projector of Profiles,
• 8 lifting bar supports for loading ease – H=74mm modules,
• 100 m3/h rotary vanes vacuum pump with oil working,
• Belt conveyor for chips and off-cuts removal,
• 13 kW (17.4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
• Suction hood with 12 positions controlled by NC, for electrospindle with 5 axes,
• Liquid chilling unit for liquid cooled systems,
• Additional Z carriage for back operating units, controlled by an independent Z axis,
• BH 29 2L Boring Head with automatic lubrication and possibility of liquid cooling,
• Rack tool changer with 12 places installed on the basement,
• 16 positions Revolver Toolchanger, positioned on the X axis carriage,
• Tool-holder with HSK F63 adaptor, equipped with a long flange for sawblade used on 5-axes unit,
• Presetter for the measurement of the tool length with diameter up to 130 mm,
• bSolid 3D CAD-CAM program to design, simulate and manage the machining processes of the Biesse machining centers and boring machines,
• bSolid – External format import,
• bSolid – Surface Design Module for surface design,
• bSolid – Surfaces from images,
• bSolid – 3 Axes Machining Module,
• bSolid – 5 Axes Machining Module.
