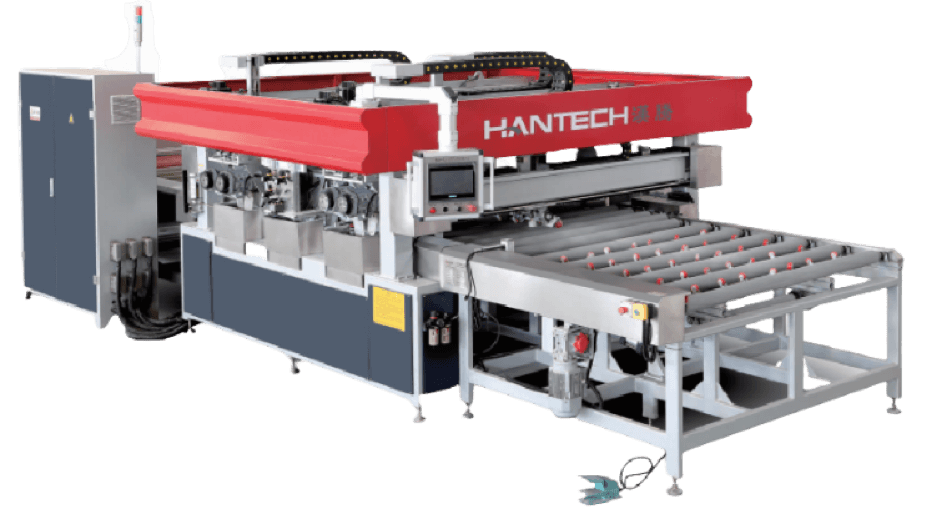

HORINZONTAL ARRISING MACHINE HANTECH SERIES C

Description

Construction: 3 bridges with 4 grinding heads (Beveling and bottom edge)

Features:

• Six power transmission sections make the machine more efficient and faster
• Automatic glass size detection
• Wheel configuration: 4 grinding geads, each head has 4 diamond wheels for he upper  and lower bevels (optional resin wheels)  =  3 diamond wheels for the bottom edge
• Thickness range: 4-12 mm (standard 3-8 mm lub 4-12 mm)
• Speed: Beveling 12-40 m/min
• The glass dimensions depending on the model:

1. HSZM16C – 270*600-1600*2500 mm
2. HSZM20C – 2700*600-2000*3000 mm
3. HSZM25C – 270*600-2500*3000 mm
